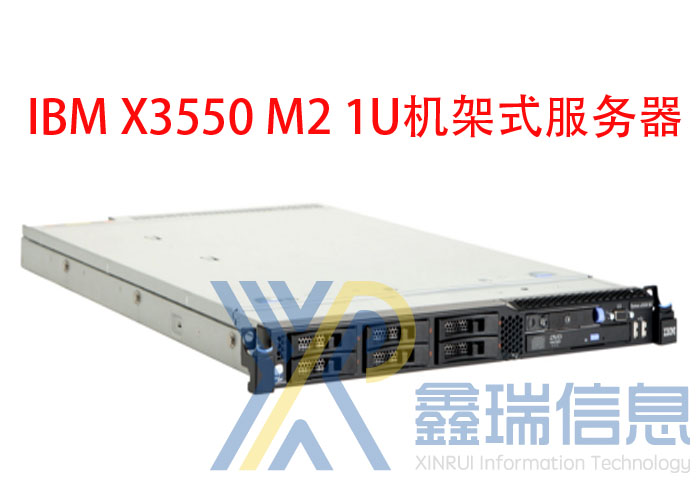

X3550 M2，1U高机架式服务器，最大支持2颗物理CPU，内存容量可达128GB，6块硬盘，是中低端的IBM服务器，X3550 M2服务器，轻薄的机身，更加节省空间，IBM X3550 M2服务器的配置信息列表如下：
| IBM服务器X3250 M2整机信息 | |
| 名称 | IBM System x3550 M2 |
| 型号 | 7946 |
| 品牌 | IBM |
| 类型 | PC服务器 |
| CPU信息 | Up to two quad-core Intel Xeon 5500 Series with Intel QuickPath Interconnect (QPI) technology,up to 2.93GHz andup to 1333MHz front-side bus |
| CPU类型 | Intel 至强 5500 |
| CPU插槽数 | 2 |
| CPU激活 | 不需要激活 |
| 机架类型 | 机架式 |
| 机架空间 | |
| 硬盘信息 | 最大硬盘容量：1.8TB |
| 最大硬盘数量 | 6 |
| 内存提示 | DDR3 |
| 支持内存容量范围 | 最大内存容量：128GB |
| 内存插槽数量 | 16 |
| 内存是否需要激活 | 不需要激活 |
| 电源描述 | 675W |
| 单机电源数量 | 2 |
| 介质托架 | DVD/CD-RW Combo |
| 适配器插槽 | 2 个 PCI-Express x16 第二代插槽; 1 个半长、全高, 1 个小型(每个插槽利用扩展卡选件可转换为 PCI-X) |
| 端口 | 2 个 USB 2.0(后面), 1 Video 后面, 1 个串口, 1 Video 前面；集成的双千兆以太网(标配 2 个端口,加 2 个可选端口) |
| 发布日期 | |
| 下架日期 | 2009/9/30 |
| 服务截止期 | |
| 操作系统 | Microsoft Windows Server 2003、Red Hat Enterprise Linux、SUSE Linux Enterprise Server、TurboLinux Enterprise Server、Novell Netware 和 VMware ESXi 3.5 嵌入式虚拟机管理程序(计划于 2009 年 2 季度推出) |
| 产品尺寸 | 43×440×711mm |
| 产品重量 | 最大15.6Kg |
IBM X3550服务器可选的配件详情清单>>>>>
| 配件信息 | ||
| FC号 | PN号 | 描述 |
| CPU | ||
| 362 | 44E5184/46M1077 | Addl Intel Xeon Processor E5502 2C (1.86GHz 4MB L3 Cache 800MHz 80w) |
| 704 | 59Y3122 | Intel Xeon Processor L5530 4C (2.40GHz 8MB L3 Cache 1066MHz 60w) |
| 3637 | 44E5177 | Intel Xeon Processor E5502 2C (1.86GHz 4MB L3 Cache 800MHz 80w) |
| 3638 | 44E5178 | Intel Xeon Processor E5506 4C (2.13GHz 4MB L3 Cache 800MHz 80w) |
| 3639 | 44E5179 | Intel Xeon Processor L5520 4C (2.26GHz 8MB L3 Cache 1066MHz 60w) |
| 3640 | 44E5180 | Intel Xeon Processor E5530 4C (2.4GHz 8MB L3 Cache 1066MHz 80w) |
| 3641 | 44E5181 | Intel Xeon Processor X5550 4C (2.66GHz 8MB L3 Cache 1333MHz 95w) |
| 3642 | 44E5182 | Intel Xeon Processor X5560 4C (2.8GHz 8MB L3 Cache 1333MHz 95w) |
| 3643 | 44E5183 | Intel Xeon Processor X5570 4C (2.93GHz 8MB L3 Cache 1333MHz 95w) |
| 4410 | 44E5185/46M1079 | Addl Intel Xeon Processor E5506 4C (2.13GHz 4MB L3 Cache 800MHz 80w) |
| 4411 | 44E5186/46M1080 | Addl Intel Xeon Processor L5520 4C (2.26GHz 8MB L3 Cache 1066MHz 60w) |
| 4412 | 44E5187/46M1083 | Addl Intel Xeon Processor E5530 4C (2.4GHz 8MB L3 Cache 1066MHz 80w) |
| 4413 | 44E5188/46M1085 | Addl Intel Xeon Processor X5550 4C 2.66GHz 8MB Cache 1333MHz 95w |
| 4414 | 44E5189/46M1086 | Addl Intel Xeon Processor X5560 4C 2.80GHz 8MB Cache 1333MHz 95w |
| 4415 | 44E5190/46M1087 | Addl Intel Xeon Proc X5570 4C (2.93GHz 8MB L3 Cache 1333MHz 95w) |
| 4449 | 46M1039/46M1078 | Addl Intel Xeon Processor E5504 4C 2.00GHz 4MB Cache 800MHz 80w |
| 4453 | 59Y3123/59Y3124 | Addl Intel Xeon Processor L5530 4C (2.40GHz 8MB Cache 1066MHz 60W) |
| 6990 | 46M1035 | Intel Xeon Processor E5504 4C (2.0GHz 4MB L3 Cache 800MHz 80w) |
| 6991 | 46M1036 | Intel Xeon Processor E5520 4C (2.26GHz 8MB L3 Cache 1066MHz 80w) |
| 6992 | 46M1037 | Intel Xeon Processor L5506 4C (2.13GHz 4MB L3 Cache 800MHz 60w) |
| 6993 | 46M1038 | Intel Xeon Processor E5540 4C (2.53GHz 8MB L3 Cache 1066MHz 80w) |
| 7750 | 46M1040/46M1081 | Addl Intel Xeon Proc E5520 4C (2.26GHz 8MB L3 Cache 1066MHz 80w) |
| 7751 | 46M1041/46M1082 | Addl Intel Xeon Processor L5506 4C (2.13GHz 4MB L3 Cache 800MHz 60w) |
| 7752 | 46M1042/46M1084 | Addl Intel Xeon Processor E5540 4C 2.53GHz 8MB Cache 1066MHz 80w |
| 内存 | ||
| 1907 | 46C0585/46C7445/46C7449/46C7453 | 8GB (1x8GB) Dual Rank PC3-10600 CL9 ECC DDR3-1333 LP RDIMM |
| 3963 | 44T1470/44T1480/44T1490 | 1GB (1x1GB, Single Rankx8) PC3-10600 CL9 ECC DDR3-1333 LP RDIMM |
| 3964 | 44T1471/44T1481/44T1491 | 2GB (1x2GB, Dual Rank x8) PC3-10600 CL9 ECC DDR3-1333 LP RDIMM |
| 3965 | 44T1472/44T1482/44T1492 | 2 GB (1x 2 GB) PC3-10600 CL9 ECC DDR3 1333 MHz Chipkill LP RDIMM |
| 3966 | 44T1473/44T1483/44T1493/46C0584 | 4 GB (1x 4 GB) PC3-10600 CL9 ECC DDR3 1333 MHz Chipkill LP RDIMM |
| 硬盘 | ||
| 43W7535 | IBM 73 GB 10K SAS 2.5" SFF Slim-HS HDD | |
| 3745 | 43W7715/43W7714 | IBM 50GB SATA 2.5" SFF Slim-HS High IOPS SSD |
| 3747 | 43W7691 | IBM 31.4GB 2.5" Solid State Drive SFF |
| 5197 | 43W7731 | 50 GB Simple Swap SATA SSD |
| 5403 | 41Y8265/41Y8264 | IBM 31.4GB SATA 2.5'' SFF Slim-HS SSD V2 |
| 5405 | 42D0749/42D0747 | IBM 160GB 7200 SATA 2.5" SFF Slim-HS HDD |
| 5407 | 42D0752/42D075342D0754 | IBM 500GB 7200 NL SATA 2.5" SFF Slim-HS HDD |
| 5409 | 42D0709/42D0707 | IBM 500GB 7200 6Gbps NL SAS 2.5" SFF Slim-HS HDD SFF |
| 5412 | 44W2296/44W2294 | IBM 146GB 15K 6Gbps SAS 2.5" SFF Slim-HS SED SFF |
| 5413 | 44W2266/44W2264 | IBM 300GB 10K 6Gbps SAS 2.5" SFF Slim-HS SED SFF |
| 5522 | 42D0674/42D0672 | IBM 73GB 15K 6Gbps SAS 2.5" SFF Slim-HS HDD |
| 5536 | 42D0679/42D0677 | IBM 146GB 15K 6Gbps SAS 2.5" SFF Slim-HS HDD SFF |
| 5537 | 42D0634/42D0632/42D0633 | IBM 146GB 10K 6Gbps SAS 2.5" SFF Slim-HS HDD |
| 5578 | 43W7540/43W7536 | IBM 146 GB 10K SAS 2.5" SFF Slim-HS HDD |
| 5579 | 43W7547/43W7545 | IBM 73 GB 15K SAS 2.5" SFF Slim-HS HDD |
| 5595 | 43W7671/43W7670 | 300GB 10K SATA 2.5" Slim-HS HDD |
| 5599 | 42D0639/42D0637 | IBM 300GB 10K 6Gbps SAS 2.5" SFF Slim-HS HDD SFF |
| RAID卡 | ||
| 93 | 46M0850/46M0829 | ServeRAID M5015 SAS/SATA Controller (Battery not included) |
| 95 | 46M0862/46M0831 | ServeRAID M1015 SAS/SATA Controller |
| 3559 | 43W4340/44E8825/43W4339 | ServeRAID-MR10is VAULT SAS/SATA Controller |
| 3571 | 43W4298/43W4296 | ServeRAID-MR10i SAS/SATA Controller - PCI-E x8 |
| 3577 | 44E8692/44E8689 | ServeRAID-BR10i SAS/SATA Controller |
| 3584 | 44E8839/44E8695/44E8696 | ServeRAID-MR10M SAS/SATA Controller with Remote Battery Kit |
| 3877 | 46M0922/46M0916/46M0918 | ServeRAID M5014 SAS/SATA Controller (Battery not included) |
| 网卡 | ||
| 1485 | 39Y6071/39Y6066 | NetXtreme II 1000 Express G Ethernet Adapter- PCIe |
| 1637 | 42C1823/42C1820/42C1822 | Brocade 10Gb CNA for IBM System x PCIe 8x |
| 2944 | 39Y6129/39Y6126 | PRO/1000 PT Dual Port Server Adapter by Intel |
| 2974 | 39Y6138/39Y6139/39Y6136 | PRO/1000 PT Quad Port Server Adapter |
| 2995 | 42C1783/42C1780/49Y4205 | NetXtreme II 1000 Express Dual Port Ethernet |
| 3585 | 44X0137/46M1076 | Dual port 1Gb Ethernet Daughter Card n/a n/a Dedicated |
| 5451 | 42C1792/42C1793/42C1790 | NetXtreme II 10 GigE Express Fiber SR Adapter |
| 5751 | 42C1800/42C1802/42C1803 | QLogic 10Gb CNA for IBM System x PCI-E |
| 5766 | 49Y4223/49Y4220 | NetXtreme II 1000 Express Quad Port Ethernet Adapter |
| 5767 | 49Y4233/49Y4230 | Intel Ethernet Dual Port Server Adapter I340- T2 for IBM System x |
| 5768 | 49Y4243/49Y4240 | Intel Ethernet Quad Port Server Adapter I340- T4 for IBM System x |
| 适配卡 | ||
| 46M1070 | IBM System x3550 M2 PCI-Express (1x16) | |
| 46M1071 | IBM System x3550 M2 PCI-X Riser Card | |
| 2975 | 42C1752/42C1753/42C1750 | PRO/1000 PF Server Adapter Half x4 PCIe by intel. |
| 2976 | 39Y6148/39Y6149/39Y6146 | QLogic iSCSI Single Port PCIe HBA for IBM System x |
| 2977 | 42C1772/42C1773/42C1770 | QLogic iSCSI Dual Port PCIe HBA for IBM System x |
| 3583 | 44E8702/44E8700 | IBM 3Gb SAS HBA Controller v2 - PCI-E x8 1,2 N 2 |
| 光纤卡 | ||
| 39M5894 | DS4000 FC 4Gbps - PCI-X Single Port HBA | |
| 39M5895 | DS4000 FC 4Gbps - PCI-X Dual Port HBA | |
| 42D0405 | Emulex 4Gb FC Single-Port PCI-X HBA for IBM System x | |
| 42D0407 | Emulex 4Gb FC Dual-Port PCI-X HBA for IBM System x | |
| 1698 | 43W7491/42C2069/42C2070 | Emulex 4Gb FC Single-Port PCI-E HBA for IBM System x |
| 1699 | 43W7492/42C2071/42C2072 | Emulex 4Gb FC Dual-Port PCI-E HBA for IBM System x |
| 3567 | 42C2179/39R6525/39R6526 | QLogic 4Gb FC Single-Port PCIe HBA for IBM System x |
| 3568 | 42C2182/39R6527/39R6528 | QLogic 4Gb FC Dual-Port PCIe HBA for IBM System x |
| 3578 | 42D0502/42D0501/42D0507 | QLogic 8Gb FC Single-port HBA for IBM System x |
| 3579 | 42D0511/42D0510/42D0516 | QLogic 8Gb FC Dual-port HBA for IBM System x |
| 3580 | 42D0486/42D0485/42D0491 | Emulex 8Gb FC Single-port HBA for IBM System x |
| 3581 | 42D0495/42D0494/42D0500 | Emulex 8Gb FC Dual-port HBA for IBM System x |
| 3589 | 46M6051/46M6049/42D0549/42D6049/46M6061 | Brocade 8Gb FC Single-port HBA for IBM System x |
| 3591 | 46M6052/46M6050/46M6062 | Brocade 8Gb FC Dual-port HBA for IBM System x |
| 3885 | 59Y1988/59Y1987/59Y1992 | Brocade 4Gb FC Single-port HBA for IBM System x |
| 3886 | 59Y1994/59Y1993/59Y1998 | Brocade 4Gb FC Dual-port HBA for IBM System x |
| 电源 | ||
| 21301RX | IBM UPS3000 LV | |
| 21302RX | IBM UPS3000 HV | |
| 21303RX | IBM UPS 7500Xhv | |
| 21304RX | IBM UPS 10000Xhv | |
| 24195KX | IBM UPS5000 HV | |
| 39Y8857 | IBM UPS 3U Online Battery Pack | |
| 40K9620 | IBM UPS3000 Ebm | |
| 2100 | 44X0147/46M1075 | IBM 675W Redundant AC Power Supply |
| 电池 | ||
| 5744 | 46M0857/46M0917 | ServeRAID M5000 Series Battery Assembly |
| 5864 | 44E8840/44E8826 | ServeRAID-MR10i Li-Ion Battery |
| 光驱 | ||
| 4161 | 44W3251/46M0901 | IBM UltraSlim Enhanced SATA DVD-ROM |
| 4162 | 44W3252 | UltraSlim Enhanced SATA CD-RW / DVD-ROM Combo |
| 4163 | 44W3253/46M0902 | IBM UltraSlim Enhanced SATA Multi-Burner |
| 磁带机 | ||
| 87651UX | 1U Tape Drive Enclosure | |
| 8767HHX | Half High Tape Drive Enclosure | |
| 5392 | 43W8487/43W8480 | IBM DDS Gen 5 SATA Tape Drive10 3.5" systems |
| 5393 | 43W8490/43W8478 | IBM Half High LTO Gen 3 SAS Tape Drive |
| 5395 | 43W8492/39M5636 | IBM DDS Gen 6 USB Tape Drive |
| 5397 | 44E8897/44E8895 | IBM Half-high LTO Gen 4 SAS Tape Drive |
| 线缆 | ||
| 31R3132 | IBM 3M Console Switch Cable (USB) | |
| 40K9614 | IBM DPI 30a Cord (NEMA L6-30P) | |
| 40K9615 | IBM DPI 60a Cord (IEC 309 2P+G) | |
| 40K9772 | C19 4.3 meter Line Cord - NEMA L6-20P | |
| 其它 | ||
| 172317X | 1U 17in Flat Panel Console Kit | |
| 172319X | 1U 19in Flat Panel Console Kit | |
| 17231RX | IBM 1U 17" Flat Panel console Kit w/ Optical Drive Bay | |
| 17233RX | IBM 1U 15" Flat Panel Console Kit | |
| 17237RX | IBM 19" Fixed Shelf Option | |
| 172621X | IBM System Storage DS3200 | |
| 172622X | IBM System Storage DS3200 | |
| 172631X | IBM System Storage DS3300 iSCSI Single Controller Model | |
| 172632X | IBM System Storage DS3300 iSCSI Dual Controller Model | |
| 172641X | IBM System Storage DS3400 | |
| 172642X | IBM System Storage DS3400 | |
| 172701X | IBM System Storage EXP3000 | |
| 17351GX | IBM Local 2x8 Console Manager (LCM2) | |
| 17352GX | IBM Global 2x16 Console Mngr(GCM2) | |
| 17353LX | IBM 1 x 8 Console Switch | |
| 17354LX | IBM 2 x 16 Console Switch | |
| 1754D1X | IBM Global 2X2X16 Console Manager | |
| 1754D2X | IBM Global 4X2X32 Console Manager | |
| 39M2816 | IBM Dpi C13 PDU+ | |
| 39Y8905 | DPI 100-127v PDU with Fixed Nema L5-15P line cord | |
| 39Y8923 | IBM Enterprise C19 3 phase PDU (60a) | |
| 39Y8938 | DPI 30amp/125V Front-end PDU with NEMA L5-30P | |
| 39Y8939 | DPI 30amp/250V Front-end PDU with NEMA L6-30P | |
| 39Y8940 | DPI 60amp/250V Front-end PDU with IEC 309 2P+Gnd connector | |
| 39Y8941 | IBM Enterprise C13 PDU | |
| 39Y8948 | IBM Enterprise C19 PDU | |
| 39Y8951 | DPI Universal Rack PDU with Nema L5-20P and L6-20P | |
| 40K1692 | IBM External USB Floppy Drive | |
| 40K5372 | IBM Keyboard w/ Integrated Pointing Device USB - US English 103P | |
| 46M4002 | IBM 1U 9 C19/3 C13 Switched and Monitored DPI PDU | |
| 46M4003 | IBM 1U 9 C19/3 C13 Switched and Monitored 60A 3 Phase PDU | |
| 46M4004 | IBM 1U 12 C13 Switched and Monitored DPI PDU | |
| 46M4005 | IBM 1U 12 C13 Switched and Monitored 60A 3 Phase PDU | |
| 71762MX | IBM Ultra Density Enterprise C19/C13 PDU+ Module | |
| 71762NX | IBM Ultra Density Enterprise C19/C13 PDU Module | |
| 71763MU | IBM Ultra Density Enterprise C19/C13 PDU+ 60A/208V/3ph | |
| 71763NU | IBM Ultra Density Enterprise C19/C13 PDU 60A/208V/3ph | |
| 93072RX | IBM 25U S2 standard rack | |
| 93074RX | NetBAY S2 42U Standard Rack Cabinet | |
| 93074XX | IBM 42U S2 expansion rack | |
| 93084EX | IBM 42U Enterprise Expansion Rack | |
| 93084PX | IBM 42U Enterprise Rack | |
| 99564RX | IBM S2 42U Dynamic Standard Rack Cabinet | |
| 99564XX | IBM S2 42U Dynamic Expansion Rack Cabinet | |
| 1749 | 59Y8348/41Y8283 | IBM USB Memory Key for VMware ESXi 3.5 Update 5 |
| 1774 | 40K6887/41Y8269 | IBM USB Memory Key for VMware ESXi 3.5 Update 4 |
| 1776 | 46M4989/41Y8278 | IBM USB Memory Key for VMware ESXi 47 |
| 2018 | IBM 11U Office Enablement Kit | |
| 3756 | 39Y7960/39M2895 | IBM USB Conversion Option Pack |
| 3757 | 39Y8072/43V6147 | IBM Single Cable USB Conversion Option (UCO) |
| 3758 | 39Y7957/39M2894 | Virtual Media Conversion Option |
| 5080 | 43V6923/46C7526 | IBM Virtual Media Key |
| 5106 | 46M0932/46M0930 | ServeRAID M5000 Series Advance Feature Key |
| 5340 | 69Y2045/46M5382 | IBM Serial Conversion Option (SCO) |
| 5341 | 69Y2046/46M5383 | IBM Virtual Media Conversion Option Gen2 (VCO2) |
| 8750 | 40K9490/40K9584 | IBM Preferred Pro Keyboard USB - US English 103P |
| 8912 | 40K9491/40K9200 | IBM 2 Button Optical Wheel Mouse - Black - USB |
| 8913 | 40K9492/40K9201 | IBM 3 Button Optical Mouse - Black - USB |
| 9749 | 46M0865/46M0832 | ServeRAID M1000 Series Advance Feature |
