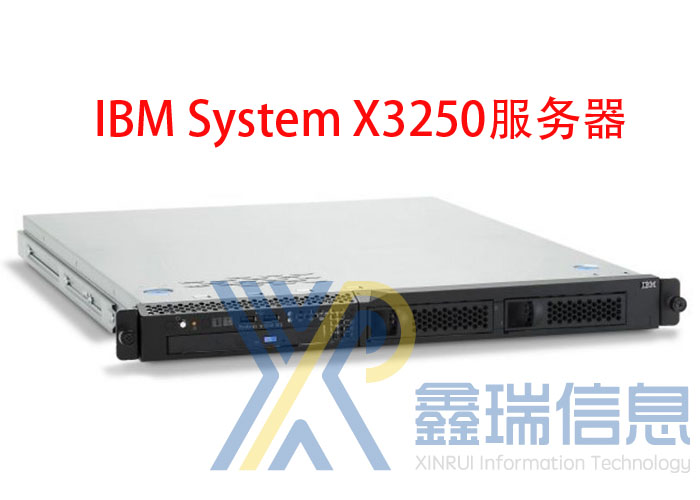

X3250是入门级的IBM服务器，1U机架式服务器，内存最大支持8GB,硬盘槽位有2个，是一款相对比较低端，适合刚需型的服务器
| IBM服务器X3250的整机信息 | |
| 名称 | IBM System x3250 |
| 型号 | 4364, 4365 |
| 品牌 | IBM |
| 类型 | PC服务器 |
| CPU信息 | Intel Xeon (quad-core) (8MB/up to 2.4 GHz/1066 MHz) or Intel Xeon (dual-core) (2MB or 4MB/up to 2.4 GHz/1066 MHz) or Intel Pentium D (dual-core) (4MB/up to 3.4 GHz/800 MHz) or Intel Celeron (256KB/2.93 GHz/533 MHz) |
| CPU类型 | 奔腾双核 |
| CPU插槽数 | 1 |
| CPU激活 | 不需要激活 |
| 机架类型 | 机架式 |
| 机架空间 | |
| 硬盘信息 | 最大硬盘容量: 1.0TB |
| 最大硬盘数量 | 2 |
| 内存提示 | DDR2 |
| 支持内存容量范围 | 最大内存容量: 8GB |
| 内存插槽数量 | 4 |
| 内存是否需要激活 | 不需要激活 |
| 电源描述 | 电源电压: 220V ; 电源功率: 351W |
| 单机电源数量 | 1 |
| 介质托架 | DVD/CD-RW Combo |
| 适配器插槽 | 2 PCI-Express (x8) |
| 端口 | 2 个 USB 2.0(后面)、2 个 USB 2.0(前面)、1 个系统管理接口(RJ-45)、2 RJ-45(ethernet)、键盘、鼠标、Serial、Video |
| 发布日期 | |
| 下架日期 | |
| 服务截止期 | |
| 操作系统 | Microsoft Windows Server 2003 Standard Edition/Enterprise Edition/Web Edition、Windows Small Business Server 2003、Red Hat Enterprise Linux、SUSE Linux Enterprise Server、Windows 2000 Server 和 Advanced Server、Novell NetWare 6.5、Novell NetWare 6.5 Open Enterprise Server |
| 产品尺寸 | 43×440×559mm |
| 产品重量 | 最大12.7Kg |
IBM服务器X3250上适用可选的配件详情列表>>>>>>>
| 配件信息 | ||
| FC号 | PN号 | 描述 |
| CPU | ||
| 1271 | 42C1076 | Dual-Core Intel Xeon 3040 (1.87GHz/1066MHz FSB, 2MB L2) |
| 1272 | 42C1077 | Dual-Core Intel Xeon 3050 (2.13GHz/1066MHz FSB, 2MB L2) |
| 1273 | 42C1078 | Dual-Core Intel Xeon 3060 (2.4GHz/1066MHz FSB, 4MB L2) |
| 1274 | 42C1129 | Intel Celeron D 341 (2.93GHz/533MHz FSB, 256KB L2) |
| 1302 | 42C1082 | Dual-Core Intel Pentium D 945 (3.4GHz/800MHz FSB, 2x2MB L2) |
| 2808 | 43W4813 | Quad-Core Intel Xeon X3220 (2.4GHz/1066MHz FSB, 2x4MB L2) |
| 2809 | 43W4810 | Dual-Core Intel Pentium D 925 (3.0GHz/800MHz FSB, 2x2MB L2) |
| 2810 | 43W4812 | Quad-Core Intel Xeon X3210 (2.13GHz/1066MHz FSB, 2x4MB L2) |
| 系统板 | ||
| 42C1276/43W0291/43W5103 | SYSTEM BOARD FOR SYSTEM X3250 | |
| 内存 | ||
| 41Y2729 | 2GB (2x 1GB Kit) PC2-5300 CL5 ECC DDR2 SDRAM DIMM | |
| 41Y2732 | 4GB (2x 2GB Kit) PC2-5300 CL5 ECC DDR2 SDRAM DIMM | |
| 1902 | 41Y2724/41Y2726 | 512MB DDR2 667 SDRAM DIMM Memory |
| 1903 | 41Y2727 | 1GB DDR2 667 SDRAM DIMM Memory |
| 1904 | 41Y2730 | 2GB DDR2 667 SDRAM DIMM Memory |
| 硬盘 | ||
| 40K1052/39R7366 | 73GB 10K 2.5" Hot-Swap SAS HDD | |
| 41Y8208 | Express 160 GB Hot-Swap SATA II | |
| 5150 | 39M4523/39M4522 | 160GB 7200 RPM 3.5" Hot-Swap SATA II |
| 5151 | 39M4527/39M4526 | IBM 250GB 7200 RPM 3.5" Hot-Swap SATA II |
| 5160 | 40K1074/40K1042/39R7346 | IBM 36 GB hot-swap 15 000 rpm SAS hard drive |
| 5161 | 40K1075/40K1043 | 73GB 15K 3.5" Hot-Swap SAS |
| 5162 | 39R7350/40K1076/40K1044 | 146GB 15K 3.5" Hot-Swap SAS |
| 5196 | 39M4531/39M4530/39M4533 | IBM 500GB 7200 RPM 3.5" Hot-Swap SATA II |
| 5288 | 39M4515/39M4514 | 500GB 7200 RPM 3.5" Simple-Swap SATA II |
| 5290 | 39M4501/39M4500 | 80GB 7200 RPM 3.5" Simple-Swap SATA HDD |
| 5291 | 39M4505/39M4504 | 160GB 7200 RPM 3.5" Simple-Swap SATA II |
| 5292 | 39M4509/39M4508 | IBM 250GB 7200 RPM 3.5" Simple-Swap SATA II |
| 5299 | 39M4519/39M4518 | 80GB 7200 RPM Hot-Swap SATA HDD |
| 5530 | 43W7577/43W7576 | 750GB 3.5" Hot-Swap SATA II |
| 5531 | 43W7573/43W7572 | 750GB 7200 RPM 3.5" Simple-Swap SATA II |
| 5532 | 43X0802/43X0805/43X0808 | 300GB 15K 3.5" Hot-Swap SAS |
| 5534 | 43X0824/43X0825/43X0826 | 146GB 10K 2.5" Hot-Swap SAS HDD |
| 5543 | 43X0841/43X0837/43X0839 | 73GB SAS 15K 2.5" SFF HS |
| RAID卡 | ||
| 1684 | 39R8767/39R8765 | IBM ServeRAID-8s SAS PCIe Controller |
| 4367 | 42C1310/42C1313 | Simple Swap SATA RAID Kit |
| 网卡 | ||
| 39Y6127/39Y6128 | PCI-E Intel dual port NIC | |
| 1485 | 39Y6071/39Y6066 | NetXtreme II 1000 Express G Ethernet Adapter- PCIe |
| 1486 | 39Y6101/39Y6098 | NetXtreme 1000 Express G Ethernet Adapter |
| 2944 | 39Y6129/39Y6126 | PRO/1000 PT Dual Port Server Adapter by Intel |
| 2974 | 39Y6138/39Y6139/39Y6136 | PRO/1000 PT Quad Port Server Adapter |
| 适配卡 | ||
| 172622X | SAS - SAS Dual Controller DS3200 | |
| 25R8060 | IBM SAS HBA Controller2 | |
| 1605 | 39Y9567/39Y9566/73P9341 | Remote Supervisor Adapter II Slimline |
| 2620 | 172621X | SAS - SAS Single Controller DS3200 |
| 2622 | 172641X | FC SAS Single Controller DS3400 |
| 2623 | 172642X | FC SAS Dual Controller DS3400 |
| 光纤卡 | ||
| 1698 | 43W7491/42C2069/42C2070 | Emulex 4Gb FC Single-Port PCI-E HBA for IBM System x |
| 1699 | 43W7492/42C2071/42C2072 | Emulex 4Gb FC Dual-Port PCI-E HBA for IBM System x |
| 3567 | 42C2179/39R6525/39R6526 | QLogic 4Gb FC Single-Port PCIe HBA for IBM System x |
| 电源 | ||
| 21303RX | IBM UPS 7500Xhv | |
| 21304RX | IBM UPS 10000Xhv | |
| 2130R30 | IBM UPS3000XLU 100-127V (US LV cord) | |
| 2130R31 | IBM UPS3000XHV 200-240V (US HV cord) | |
| 32P1020 | APC 2U Smart-UPS 1400RMB | |
| 32P1022 | APC 2U Smart-UPS 1400RMiB | |
| 39Y8857 | IBM UPS 3U Online Battery Pack | |
| 电池 | ||
| 32P1692 | IBM UPS Extend Run Battery Pack | |
| 1693 | 39R8871/39R8812 | IBM ServeRAID-8s Battery |
| 光驱 | ||
| 4141 | 32R2899 | CDROM Ultrabay Enhanced Drive |
| 4143 | 32R2901/43W8304 | Multi-Burner Ultrabay Enhanced Drive |
| 4144 | 32R2784 | CD-RW/DVD Combo V Ultrabay Enhanced - CD Bay |
| 磁带机 | ||
| 3573-xxx | IBM System Storage TS3100/TS3200 Tape Library (all models) | |
| 87651UX | 1U Tape Drive Enclosure | |
| 87664UX | IBM 4U Rackmount Tape Enclosure | |
| 线缆 | ||
| 31R3130 | IBM 3M Console Switch Cable (PS/2) | |
| 31R3132 | IBM 3M Console Switch Cable (USB) | |
| 36L9973 | Netfinity Fibre Channel 1 M Cable | |
| 39R6471 | IBM 3m InfiniBand to SAS Cable | |
| 40K9614 | IBM DPI 30a Cord (NEMA L6-30P) | |
| 40K9615 | IBM DPI 60a Cord (IEC 309 2P+G) | |
| 2753 | 43W4908 | IBM Hot-Swap SAS/SATA 8s Cable |
| 其它 | ||
| 17011RL | IBM TotalStorage DS300 - Single Controller LC - | |
| 17353LX | IBM 1 x 8 Console Switch | |
| 17354LX | IBM 2 x 16 Console Switch | |
| 1750-511 | IBM TotalStorage DS6800 1750 model 511 | |
| 18147xx | IBM System Storage DS4700 Midrange Disk System (all models) | |
| 2026-224 | IBM TotalStorage SAN 24M-1 | |
| 2109-M12 | IBM SAN Switch Model M12 (2x64 ports) | |
| 2109-M14 | IBM TotalStorage SAN Switch M14 (128-port) | |
| 39M2896 | IBM Short KVM Conversion Option | |
| 39M2897 | IBM Long KVM Conversion Option (Long KCO) | |
| 39Y8905 | DPI 100-127v PDU with Fixed Nema L5-15P line cord | |
| 39Y8923 | IBM Enterprise C19 3 phase PDU (60a) | |
| 39Y8935 | DPI 63amp/250V Front-end PDU with IEC 309 2P+Gnd connector | |
| 39Y8938 | DPI 30amp/125V Front-end PDU with NEMA L5-30P | |
| 39Y8939 | DPI 30amp/250V Front-end PDU with NEMA L6-30P | |
| 39Y8940 | DPI 60amp/250V Front-end PDU with IEC 309 2P+Gnd connector | |
| 39Y8941 | IBM Enterprise C13 PDU | |
| 39Y8948 | IBM Enterprise C19 PDU | |
| 39Y8951 | DPI Universal Rack PDU with Nema L5-20P and L6-20P | |
| 39Y8999 | 32A/230V 3P w/IEC309 3P+N+Gnd Conn | |
| 40K5372 | IBM Keyboard w/ Integrated Pointing Device USB - US English 103P | |
| 73P5847 | DPI 60A/208v 3-Phase High Density C19 PDU w/IEC309 3P+Gnd Connector | |
| 3756 | 39Y7960/39M2895 | IBM USB Conversion Option Pack |
| 8750 | 40K9490/40K9584 | IBM Preferred Pro Keyboard USB - US English 103P |
| 8912 | 40K9491/40K9200 | IBM 2 Button Optical Wheel Mouse - Black - USB |
| 8913 | 40K9492/40K9201 | IBM 3 Button Optical Mouse - Black - USB |
