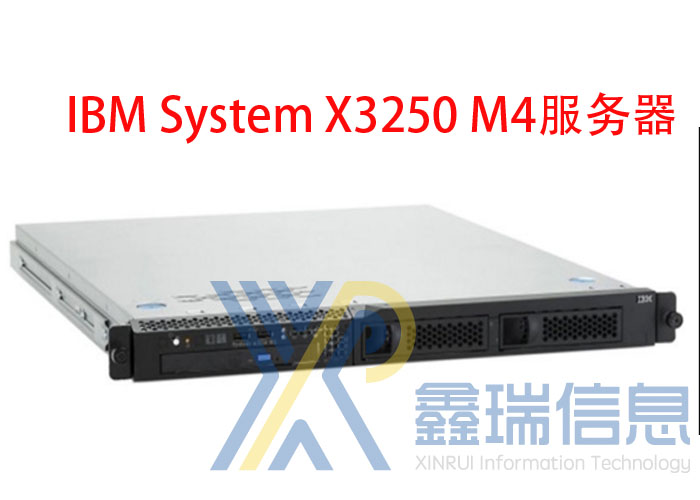

X3250 M4， IBM服务器X3250系列的第四代，延续了1U高的机架式设计，内存容量32GB, 硬盘最大容量2.4TB,搭载了一颗E3-1200系列的处理器，欲了解更多X3250 M4服务器的参数配置，如下列表：
| IBM X3250 M4服务器的整机信息 | |
| 名称 | IBM System x3250 M4 |
| 型号 | 2583 |
| 品牌 | IBM |
| 类型 | PC服务器 |
| CPU信息 | One quad-core Intel Xeon E3-1200 series processor (up to 3.5GHz/8MB) or one dual-core Intel Core i3 2100 series processor (up to 3.3GHz/3MB) with up to 1333MHz memory speed. Supports specific quad-core and dual-core processors via Configure-To-Order (CTO). |
| CPU类型 | 奔腾双核 |
| CPU插槽数 | 1 |
| CPU激活 | 不需要激活 |
| 机架类型 | 机架式 |
| 机架空间 | |
| 硬盘信息 | 最大硬盘容量: 2.4TB |
| 最大硬盘数量 | 最大支持 2 块 3.5 英寸硬盘 |
| 内存提示 | ECC DDR3 |
| 支持内存容量范围 | 最大内存容量：32GB |
| 内存插槽数量 | 4 |
| 内存是否需要激活 | 不需要激活 |
| 电源描述 | 电源功率：350W |
| 单机电源数量 | 1 |
| 介质托架 | DVD/CD-RW Combo |
| 适配器插槽 | 1×PCI-E Gen 2 x8；1×PCI-E Gen 2 x4 |
| 端口 | 2×RJ45 网络端口；6×USB 端口（2 个前置，4 个后置）；1×VGA；1×串口 |
| 发布日期 | |
| 下架日期 | |
| 服务截止期 | |
| 操作系统 | Microsoft Windows Server 2008 R2 and 2008, Red Hat Enterprise Linux 5, SUSE Linux Enterprise Server 11. |
| 产品尺寸 | 430×560×43mm |
| 产品重量 | 最大9.24-10.67kg |
IBM X3250 M4服务器上可选的配件参数详情>>>>>>
| 配件信息 | ||
| FC号 | PN号 | 描述 |
| CPU | ||
| A0RG | 69Y5415 | Intel Corei32100, 3.1GHz 2C 3M cache 1333MHz DDR3 65W 42Y |
| A0RH | 69Y5416 | Intel Xeon E31270 3.4GHz 4C 8MB cache 1333MHz DDR3 80W 72Y |
| A0RJ | 69Y5417 | Intel Xeon E31230 3.2GHz 4C 8MB cache 1333MHz DDR3 80W EBY |
| A0RK | 69Y5418 | Intel Xeon E31240 3.3GHz 4C 8MB cache 1333MHz DDR3 80W |
| A0RL | 69Y5419 | Intel Xeon E31220 3.1GHz 4C 8MB cache 1333MHz DDR3 80W 62Y, EAY |
| A144 | 81Y6941 | Intel Xeon E31280 3.5GHz 4C 8MB cache 1333MHz DDR3 95W |
| A145 | 81Y6942 | Intel Corei32120, 3.3GHz 2C 3M cache 1333MHz DDR3 65W |
| A146 | 81Y6943 | Intel Xeon E31260L 2.4GHz 4C 8MB cache 1333MHz DDR3 45W |
| A147 | 81Y6944 | Intel Xeon E31220L 2.2GHz 2C 3MB cache 1333MHz DDR3 20W |
| A19A | 81Y6485 | Intel Pentium G850 2.9GHz 2C 3MB cache 1333MHz 65W 32Y |
| A19B | 81Y6486 | Intel Pentium G840 2.8GHz 2C 3MB cache 1333MHz 65W |
| A19C | 81Y6487 | Intel Pentium G620 2.6GHz 2C 3MB cache 1066MHz 65W |
| A2E1 | 94Y6238 | Intel Core i32130 3.4GHz 2C 3MB cache 1333MHz 65W |
| A2E2 | 94Y6239 | Intel Pentium G860 3.0GHz 2C 3MB cache 1333MHz 65W |
| A2E3 | 94Y6240 | Intel Pentium G630 2.7GHz 2C 3MB cache 1066MHz 65W |
| 内存 | ||
| 1912 | 44T1567/44T1571 | 4GB (1x4GB, Dual Rankx8) PC3-10600 CL9 ECC DDR3 1333MHz LP UDIMM |
| 1913 | 44T1566/44T1570 | 2GB (1x2GB, 1Rx8, 1.5V) PC3-10600 CL9 ECC DDR3 1333MHz LP UDIMM |
| 1915 | 44T1564/44T1568 | 1GB (1x1GB, Single Rankx8) PC3-10600 CL9 ECC DDR3 1333MHz LP UDIMM |
| A1MG | 90Y3164/90Y3165 | 8GB (1x8GB, 2Rx8, 1.5V) PC3-10600 CL9 ECC DDR3 1333MHz LP UDIMM |
| 硬盘 | ||
| 81Y9690 | IBM 1TB 7.2K 6Gbps NL SAS 2.5" SFF HS HDD SFF | |
| 81Y9742 | IBM 1TB 7.2K 6Gbps NL SATA 2.5" SFF SS HDD | |
| 5288 | 39M4515/39M4514 | 500GB 7200 RPM 3.5" Simple-Swap SATA II |
| 5292 | 39M4509/39M4508 | IBM 250GB 7200 RPM 3.5" Simple-Swap SATA II |
| 5409 | 42D0709/42D0707 | IBM 500GB 7200 6Gbps NL SAS 2.5" SFF Slim-HS HDD SFF |
| 5416 | 42D0789/42D0787 | IBM 2TB 7200 Nl SATA 3.5" SS HDD |
| 5426 | 49Y1998/49Y1996 | IBM 146GB 15K 6Gbps SAS 2.5" SFF SS HDD |
| 5427 | 49Y1993/49Y1991 | IBM 300GB 10K 6Gbps SAS 2.5" SFF SS HDD |
| 5433 | 49Y2005/49Y2003 | IBM 600GB 10K 6Gbps SAS 2.5" SFF Slim-HS HDD SFF |
| 5435 | 49Y2029/49Y2027 | IBM 600GB 10K 6Gbps SAS 2.5" SFF SS HDD |
| 5536 | 42D0679/42D0677 | IBM 146GB 15K 6Gbps SAS 2.5" SFF Slim-HS HDD SFF |
| 5559 | 43W7623/43W7622/43W7625 | IBM 1TB 7.2K SATA 3.5" Simple-Swap HDD |
| 5599 | 42D0639/42D0637 | IBM 300GB 10K 6Gbps SAS 2.5" SFF Slim-HS HDD SFF |
| A0WU | 43W7751/43W7750 | IBM 250GB SATA 3.5 SS HDD |
| A1AV | 81Y9730/81Y9732 | IBM 1TB 7.2K 6Gbps NL SATA 2.5" SFF HS HDD SFF |
| A1NX | 81Y9724/81Y9722 | IBM 250GB 7.2K 6Gbps NL SATA 2.5" SFF HS HDD |
| A1NY | 81Y9736/81Y9734 | IBM 250GB 7.2K 6Gbps NL SATA 2.5" SFF SS HDD |
| A1NZ | 81Y9728/81Y9726 | IBM 500GB 7.2K 6Gbps NL SATA 2.5" SFF HS HDD |
| A1P0 | 81Y9740/81Y9738 | IBM 500GB 7.2K 6Gbps NL SATA 2.5" SFF SS HDD |
| A280 | 81Y9780/81Y9778 | IBM 3TB 7.2K 6Gbps NL SATA 3.5" SS HDD |
| RAID卡 | ||
| 95 | 46M0862/46M0831 | ServeRAID M1015 SAS/SATA Controller |
| 3877 | 46M0922/46M0916/46M0918 | ServeRAID M5014 SAS/SATA Controller (Battery not included) |
| 3888 | 59Y3932 | ServeRAID-BR10il SAS/SATA Controller v2 with bracket |
| A17T | 90Y4322 | ServeRAID C100 for System x |
| 网卡 | ||
| 1637 | 42C1823/42C1820/42C1822 | Brocade 10Gb CNA for IBM System x PCIe 8x |
| 2995 | 42C1783/42C1780/49Y4205 | NetXtreme II 1000 Express Dual Port Ethernet |
| 5751 | 42C1800/42C1802/42C1803 | QLogic 10Gb CNA for IBM System x PCI-E |
| 5766 | 49Y4223/49Y4220 | NetXtreme II 1000 Express Quad Port Ethernet Adapter |
| 5767 | 49Y4233/49Y4230 | Intel Ethernet Dual Port Server Adapter I340- T2 for IBM System x |
| 5768 | 49Y4243/49Y4240 | Intel Ethernet Quad Port Server Adapter I340- T4 for IBM System x |
| A2V3 | 90Y9353/90Y9352 | Broadcom NetXtreme I Quad Port GbE Adapter for IBM System x |
| A2V4 | 90Y9371/90Y9370 | Broadcom NetXtreme I Dual Port GbE Adapter for IBM System x |
| 适配卡 | ||
| 69 | 49Y4217/49Y4216/42C1819 | Brocade 10Gb SFP+ SR Optical Transceiver |
| 5982 | 68Y7355/46M0907 | IBM 6Gb SAS HBA |
| 光纤卡 | ||
| 3578 | 42D0502/42D0501/42D0507 | QLogic 8Gb FC Single-port HBA for IBM System x |
| 3579 | 42D0511/42D0510/42D0516 | QLogic 8Gb FC Dual-port HBA for IBM System x |
| 3580 | 42D0486/42D0485/42D0491 | Emulex 8Gb FC Single-port HBA for IBM System x |
| 3581 | 42D0495/42D0494/42D0500 | Emulex 8Gb FC Dual-port HBA for IBM System x |
| 3589 | 46M6051/46M6049/42D0549/42D6049/46M6061 | Brocade 8Gb FC Single-port HBA for IBM System x |
| 3591 | 46M6052/46M6050/46M6062 | Brocade 8Gb FC Dual-port HBA for IBM System x |
| 光驱 | ||
| 4161 | 44W3251/46M0901 | IBM UltraSlim Enhanced SATA DVD-ROM |
| 4163 | 44W3253/46M0902 | IBM UltraSlim Enhanced SATA Multi-Burner |
| 线缆 | ||
| 3701 | 40K9805 | 5m LC-LC Fiber Cable (networking) |
| 3702 | 40K9806 | 25m LC-LC Fiber Cable (networking) |
| 3791 | 40K8932 | 0.6m Yellow Cat5e Cable |
| 3792 | 40K8935 | 1.5m Yellow Cat5e Cable |
| 3793 | 40K8960 | 3m Yellow Cat5e Cable |
| 3794 | 40K8939 | 10m Yellow Cat5e Cable |
| 3795 | 40K8941 | 25m Yellow Cat5e Cable |
| 3796 | 40K8963 | 0.6m Green Cat5e Cable |
| 3797 | 40K5627 | 1.5m Green Cat5e Cable |
| 3798 | 40K5791 | 3m Green Cat5e Cable |
| 3799 | 40K5792 | 10m Green Cat5e Cable |
| 3800 | 40K8868 | 25m Green Cat5e Cable |
| 3801 | 40K8949 | 0.6m Blue Cat5e Cable |
| 3802 | 40K5564 | 1.5m Blue Cat5e Cable |
| 3803 | 40K8936 | 3m Blue Cat5e Cable |
| 3804 | 40K8926 | 10m Blue Cat5e Cable |
| 3805 | 40K8929 | 25m Blue Cat5e Cable |
| 6316 | 39Y5532 | Rack power cable - 2.0m, 125-250V, C13 to IEC 320-C14 (WW) |
| 其它 | ||
| 64 | 49Y4219/49Y4218 | QLogic 10Gb SFP+ SR Optical Transceiver |
| 2591 | 46M0859 | 2U Bracket for ServeRAID M5015 SAS/SATA |
| 3756 | 39Y7960/39M2895 | IBM USB Conversion Option Pack |
| 3757 | 39Y8072/43V6147 | IBM Single Cable USB Conversion Option (UCO) |
| 3758 | 39Y7957/39M2894 | Virtual Media Conversion Option |
| 5341 | 69Y2046/46M5383 | IBM Virtual Media Conversion Option Gen2 (VCO2) |
| 9749 | 46M0865/46M0832 | ServeRAID M1000 Series Advance Feature |
