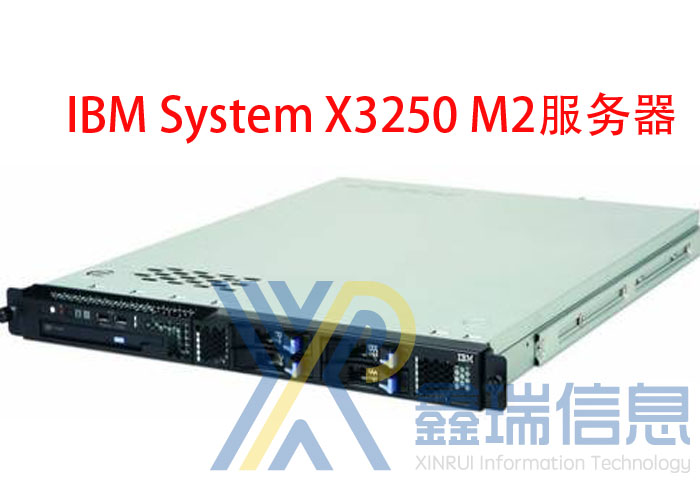

IBM X3250 M2服务器是1U高机架式服务器，属于中低端的服务器，内存最大支持8GB，和1.5TB容量的硬盘， 满足大多数中小企业的日常工作需求，欲了解更多IBM X3250 M2服务器的信息，敬请咨询广州鑫瑞信息
| IBM服务器X3250 M2整机信息 | |
| 名称 | IBM System x3250 M2 |
| 型号 | 4190, 4194 |
| 品牌 | IBM |
| 类型 | PC服务器 |
| CPU信息 | Intel Xeon 3300 (quad-core) (up to 2.66MHz/12MB/ 1333MHz) or Intel Xeon 3100 (dual-core) (up to 3.0GHz/ 6MB/1333MHz) or Intel Core 2 Duo E4600 (up to 2.4GHz/ 1GB/800MHz) or Intel Celeron (up to 2.0GHz/512 KB/ 800MHz) |
| CPU类型 | Intel 至强 3100 |
| CPU插槽数 | 1 |
| CPU激活 | 不需要激活 |
| 机架类型 | 机架式 |
| 机架空间 | |
| 硬盘信息 | 最大硬盘容量: 1.5TB |
| 最大硬盘数量 | 4 |
| 内存提示 | DDR2 |
| 支持内存容量范围 | 最大内存容量：8GB |
| 内存插槽数量 | 4 |
| 内存是否需要激活 | 不需要激活 |
| 电源描述 | 351W |
| 单机电源数量 | 1 |
| 介质托架 | CD-RW/DVD-ROM Combo |
| 适配器插槽 | 1 PCI-Express(x8),1 PCI-Express(x4) |
| 端口 | Serial,Video,2 RJ-45(ethernet),2 个 USB 2.0(后面),2 个 USB 2.0(前面),1 个系统管理接口(RJ-45) |
| 发布日期 | |
| 下架日期 | 2009/1/2 |
| 服务截止期 | |
| 操作系统 | Microsoft Windows Server 2003 Standard Edition/Enterprise Edition/Web Edition R2、Windows Small Business Server 2003 R2、Red Hat Enterprise Linux 5、SUSE Linux Enterprise Server 10、Novell NetWare 6.5 |
| 产品尺寸 | 43×440×559mm |
| 产品重量 | 最大12.7Kg |
IBM服务器X3250 M2可选配件详情清单>>>>>>>
| 配件信息 | ||
| FC号 | PN号 | 描述 |
| CPU | ||
| 2844 | 43W5066 | Single-Core Intel Celeron 440 (2.0GHz/800MHz FSB, 512K L2) |
| 3635 | 44X1886 | Dual-Core Intel Pentium E2200 ( 2.2GHz/800MHz FSB,1MB L2) |
| 3650 | 44R5766 | Dual-Core Intel Xeon E3110 (3.00GHz/1333MHz FSB, 6MB L2) |
| 3651 | 44R5767 | Quad-Core Intel Xeon X3320 (2.50GHz/1333MHz FSB, 6MB L2) |
| 3652 | 44R5768 | Quad-Core Intel Xeon X3350 (2.66GHz/1333MHz FSB, 12MB L2) |
| 3653 | 44R5769 | Dual-Core Intel Core 2 Duo E4600 (2.4GHz/800MHz FSB, 2MB L2) |
| 6965 | 46M0334 | Dual-Core Intel Pentium E7200 ( 2.53GHz/1066MHz FSB,3MB L2) |
| 6966 | 46M0335 | Dual-Core Intel Xeon E3120 (3.16GHz/1333MHz FSB, 6MB L2) |
| 6967 | 46M0336 | Quad-Core Intel Xeon X3330 (2.66GHz/1333MHz FSB, 6MB L2) |
| 6968 | 46M0337 | Quad-Core Intel Xeon X3360 (2.83GHz/1333MHz FSB, 12MB L2) |
| 内存 | ||
| 41Y2729 | 2GB (2x 1GB Kit) PC2-5300 CL5 ECC DDR2 SDRAM DIMM | |
| 41Y2732 | 4GB (2x 2GB Kit) PC2-5300 CL5 ECC DDR2 SDRAM DIMM | |
| 46C7428 | 2GB (2x1GB) PC2-6400 CL6 ECC DDR2 800MHz DIMM | |
| 46C7429 | 4GB (2x2GB) PC2-6400 CL6 ECC DDR2 800MHz DIMM | |
| 46C7443 | 1GB (2x512MB) PC2-6400 CL6 ECC DDR2 800MHz DIMM | |
| 1902 | 41Y2724/41Y2726 | 512MB DDR2 667 SDRAM DIMM Memory |
| 1903 | 41Y2727 | 1GB DDR2 667 SDRAM DIMM Memory |
| 1904 | 41Y2730 | 2GB DDR2 667 SDRAM DIMM Memory |
| 3961 | 46C7424 | 1GB DDR2 800 SDRAM UDIMM Memory |
| 3962 | 46C7425 | 2GB DDR2 800 SDRAM UDIMM Memory |
| 3968 | 46C7441 | 512MB DDR2 800 SDRAM UDIMM Memory |
| 硬盘 | ||
| 40K1052/39R7366 | 73GB 10K 2.5" Hot-Swap SAS HDD | |
| 43W7524 | 146GB 15K 3.5" Hot-Swap SAS HDD | |
| 5150 | 39M4523/39M4522 | 160GB 7200 RPM 3.5" Hot-Swap SATA II |
| 5151 | 39M4527/39M4526 | IBM 250GB 7200 RPM 3.5" Hot-Swap SATA II |
| 5161 | 40K1075/40K1043 | 73GB 15K 3.5" Hot-Swap SAS |
| 5162 | 39R7350/40K1076/40K1044 | 146GB 15K 3.5" Hot-Swap SAS |
| 5196 | 39M4531/39M4530/39M4533 | IBM 500GB 7200 RPM 3.5" Hot-Swap SATA II |
| 5199 | 42D0654/42D0652 | IBM 146GB 15K 6Gbps SAS |
| 5288 | 39M4515/39M4514 | 500GB 7200 RPM 3.5" Simple-Swap SATA II |
| 5291 | 39M4505/39M4504 | 160GB 7200 RPM 3.5" Simple-Swap SATA II |
| 5292 | 39M4509/39M4508 | IBM 250GB 7200 RPM 3.5" Simple-Swap SATA II |
| 5509 | 42D0612/42D0613/42D0614 | IBM 300GB 10K 6Gbps SAS |
| 5530 | 43W7577/43W7576 | 750GB 3.5" Hot-Swap SATA II |
| 5531 | 43W7573/43W7572 | 750GB 7200 RPM 3.5" Simple-Swap SATA II |
| 5532 | 43X0802/43X0805/43X0808 | 300GB 15K 3.5" Hot-Swap SAS |
| 5534 | 43X0824/43X0825/43X0826 | 146GB 10K 2.5" Hot-Swap SAS HDD |
| 5543 | 43X0841/43X0837/43X0839 | 73GB SAS 15K 2.5" SFF HS |
| 5560 | 43W7627/43W7626 | IBM 1TB 7200 SATA 3.5 HS HDD |
| 5586 | 42D0521/42D0519/42D0520 | IBM 450GB 15K SAS 3.5" HS HDD |
| RAID卡 | ||
| 44X0411 | ServeRAID-BR10il SAS/SATA Controller Kit | |
| 3559 | 43W4340/44E8825/43W4339 | ServeRAID-MR10is VAULT SAS/SATA Controller |
| 3571 | 43W4298/43W4296 | ServeRAID-MR10i SAS/SATA Controller - PCI-E x8 |
| 3584 | 44E8839/44E8695/44E8696 | ServeRAID-MR10M SAS/SATA Controller with Remote Battery Kit |
| SCSI卡 | ||
| 43W4324 | IBM Ultra 320 SCSI PCIe Controller | |
| 网卡 | ||
| 1485 | 39Y6071/39Y6066 | NetXtreme II 1000 Express G Ethernet Adapter- PCIe |
| 2944 | 39Y6129/39Y6126 | PRO/1000 PT Dual Port Server Adapter by Intel |
| 2974 | 39Y6138/39Y6139/39Y6136 | PRO/1000 PT Quad Port Server Adapter |
| 适配卡 | ||
| 25R8060 | IBM SAS HBA Controller2 | |
| 40K2599 | SAS Enclosure Adapter Kit | |
| 1605 | 39Y9567/39Y9566/73P9341 | Remote Supervisor Adapter II Slimline |
| 2975 | 42C1752/42C1753/42C1750 | PRO/1000 PF Server Adapter Half x4 PCIe by intel. |
| 2976 | 39Y6148/39Y6149/39Y6146 | QLogic iSCSI Single Port PCIe HBA for IBM System x |
| 2977 | 42C1772/42C1773/42C1770 | QLogic iSCSI Dual Port PCIe HBA for IBM System x |
| 3583 | 44E8702/44E8700 | IBM 3Gb SAS HBA Controller v2 - PCI-E x8 1,2 N 2 |
| 光纤卡 | ||
| 1698 | 43W7491/42C2069/42C2070 | Emulex 4Gb FC Single-Port PCI-E HBA for IBM System x |
| 1699 | 43W7492/42C2071/42C2072 | Emulex 4Gb FC Dual-Port PCI-E HBA for IBM System x |
| 3567 | 42C2179/39R6525/39R6526 | QLogic 4Gb FC Single-Port PCIe HBA for IBM System x |
| 3568 | 42C2182/39R6527/39R6528 | QLogic 4Gb FC Dual-Port PCIe HBA for IBM System x |
| 3578 | 42D0502/42D0501/42D0507 | QLogic 8Gb FC Single-port HBA for IBM System x |
| 3579 | 42D0511/42D0510/42D0516 | QLogic 8Gb FC Dual-port HBA for IBM System x |
| 3580 | 42D0486/42D0485/42D0491 | Emulex 8Gb FC Single-port HBA for IBM System x |
| 3581 | 42D0495/42D0494/42D0500 | Emulex 8Gb FC Dual-port HBA for IBM System x |
| 3589 | 46M6051/46M6049/42D0549/42D6049/46M6061 | Brocade 8Gb FC Single-port HBA for IBM System x |
| 3591 | 46M6052/46M6050/46M6062 | Brocade 8Gb FC Dual-port HBA for IBM System x |
| 电源 | ||
| 21301RX | IBM UPS3000 LV | |
| 21302RX | IBM UPS3000 HV | |
| 21303RX | IBM UPS 7500Xhv | |
| 21304RX | IBM UPS 10000Xhv | |
| 39Y8857 | IBM UPS 3U Online Battery Pack | |
| 40K9620 | IBM UPS3000 Ebm | |
| 电池 | ||
| 5700 | 43W4302/43W4299 | ServeRAID-MR10i Battery |
| 5864 | 44E8840/44E8826 | ServeRAID-MR10i Li-Ion Battery |
| 光驱 | ||
| 4156 | 43W8262 | UltraSlim Enhanced CD-RW / DVD-ROM Combo |
| 4157 | 43W8263 | UltraSlim Enhanced Multi-Burner |
| 4162 | 44W3252 | UltraSlim Enhanced SATA CD-RW / DVD-ROM Combo |
| 4163 | 44W3253/46M0902 | IBM UltraSlim Enhanced SATA Multi-Burner |
| 磁带机 | ||
| 87651UX | 1U Tape Drive Enclosure | |
| 8767HHX | Half High Tape Drive Enclosure | |
| 5364 | 39M5621/39M5658 | IBM Half High LTO Gen 2 Tape Drive 2 SCSI 89mm |
| 5392 | 43W8487/43W8480 | IBM DDS Gen 5 SATA Tape Drive10 3.5" systems |
| 5395 | 43W8492/39M5636 | IBM DDS Gen 6 USB Tape Drive |
| 5397 | 44E8897/44E8895 | IBM Half-high LTO Gen 4 SAS Tape Drive |
| 线缆 | ||
| 31R3132 | IBM 3M Console Switch Cable (USB) | |
| 40K9614 | IBM DPI 30a Cord (NEMA L6-30P) | |
| 40K9615 | IBM DPI 60a Cord (IEC 309 2P+G) | |
| 其它 | ||
| 14104RX | IBM 42U S2 standard rack | |
| 17011RL | IBM TotalStorage DS300 - Single Controller LC - | |
| 172317X | 1U 17in Flat Panel Console Kit | |
| 172319X | 1U 19in Flat Panel Console Kit | |
| 17231RX | IBM 1U 17" Flat Panel console Kit w/ Optical Drive Bay | |
| 17233RX | IBM 1U 15" Flat Panel Console Kit | |
| 172621X | IBM System Storage DS3200 | |
| 172622X | IBM System Storage DS3200 | |
| 172641X | IBM System Storage DS3400 | |
| 172642X | IBM System Storage DS3400 | |
| 172701X | IBM System Storage EXP3000 | |
| 17351GX | IBM Local 2x8 Console Manager (LCM2) | |
| 17352GX | IBM Global 2x16 Console Mngr(GCM2) | |
| 17353LX | IBM 1 x 8 Console Switch | |
| 17354LX | IBM 2 x 16 Console Switch | |
| 362516X | IBM RDX 160 GB External USB Drive | |
| 362532X | IBM RDX 320 GB External USB Drive | |
| 362550X | IBM RDX 500 GB External USB Drive | |
| 39Y8905 | DPI 100-127v PDU with Fixed Nema L5-15P line cord | |
| 39Y8923 | IBM Enterprise C19 3 phase PDU (60a) | |
| 39Y8935 | DPI 63amp/250V Front-end PDU with IEC 309 2P+Gnd connector | |
| 39Y8938 | DPI 30amp/125V Front-end PDU with NEMA L5-30P | |
| 39Y8939 | DPI 30amp/250V Front-end PDU with NEMA L6-30P | |
| 39Y8940 | DPI 60amp/250V Front-end PDU with IEC 309 2P+Gnd connector | |
| 39Y8941 | IBM Enterprise C13 PDU | |
| 39Y8948 | IBM Enterprise C19 PDU | |
| 39Y8951 | DPI Universal Rack PDU with Nema L5-20P and L6-20P | |
| 39Y9000 | 60A/208V 3P w/IEC309 3P+Gnd Conn | |
| 40K1692 | IBM External USB Floppy Drive | |
| 40K5372 | IBM Keyboard w/ Integrated Pointing Device USB - US English 103P | |
| 46C5364 | IBM RDX160 Internal USB Bundle | |
| 46C5387 | IBM RDX320 Internal USB Bundle | |
| 46C5388 | IBM RDX500 Internal USB Bundle | |
| 71762NX | IBM Ultra Density Enterprise C19/C13 PDU Module | |
| 93072RX | IBM 25U S2 standard rack | |
| 93074RX | NetBAY S2 42U Standard Rack Cabinet | |
| 93074XX | IBM 42U S2 expansion rack | |
| 99564RX | IBM S2 42U Dynamic Standard Rack Cabinet | |
| 99564XX | IBM S2 42U Dynamic Expansion Rack Cabinet | |
| 8750 | 40K9490/40K9584 | IBM Preferred Pro Keyboard USB - US English 103P |
| 8912 | 40K9491/40K9200 | IBM 2 Button Optical Wheel Mouse - Black - USB |
| 8913 | 40K9492/40K9201 | IBM 3 Button Optical Mouse - Black - USB |
