| 整机信息 | |

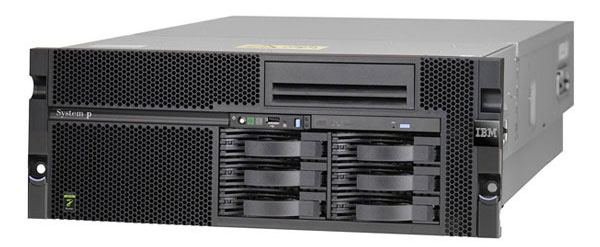

| 名称 | IBM Power 550 Express |
| 型号 | 9409-M50 |
| 品牌 | IBM |
| 类型 | 小型机 |
| CPU信息 | 2 路 4.2 GHz Power6 64 位处理器。 |
| CPU类型 | POWER6 |
| CPU插槽数 | 4 |
| CPU激活 | 需要激活码 |
| 机架类型 | 机架式，塔式 |
| 机架空间 | 4U |
| 硬盘信息 | 最大硬盘背板数量为 2 |
|
最大硬盘 数量 |
8 |
| 内存提示 | DDR2 的内存。 |
|
支持内存 容量范围 |
4GB-128GB |
|
内存插槽 数量 |
32 |
|
内存是否 需要激活 |
不需要激活 |
| 电源描述 | 100v 到 127v 或者 200v 到 240v 交流。 |
|
单机电源 数量 |
2 |
| 介质托架 | 1 个薄型和 1 个半高的介质托架。 |
| 适配器插槽 |
2 个 PCI-X 适配器插槽 （266 MHz（DDR）的）， 3 个PCI Express 8x。 |
| 端口 |
2 个以太网 10 100 1000 Mbps 端口 或 4 个以太网 10 100 1000 端口（选件）， 或 2 个万兆以太网端口（选件）， 3 个 USB 端口， 2 个 HMC 端口， 2 个串口。 |
| IO适配器 | 3G SAS控制器（内部，可选 RAID）。 |
| IO扩展 | |
| 发布日期 | 2008 2 29 |
| 下架日期 | 2011 5 27 |
|
服务截止 期 |
|
| 操作系统 |
AIX V5.3 或者更高版本， IBM i 5.4 或者更高版本， SUSE LinuX Enterprise Server 10 f 或者 POWER™ (SLES10 SP1) 或者更高版本， Red Hat Enterprise LinuX 4.5 f 或者 POWER (RHEL4.5) 或者更高版本，RHEL5.1 或者更高版本 。 |
| 产品尺寸 |
桌面型： 21.3"高 x 7.2-11.1"宽 x 30.6"深 （540 毫米 x 183-283 毫米 x 778毫米）， 机架扩展笼： 6.9"高（4U） x 17.3"宽 x 28.7"深 （175毫米x 440毫米 x 730毫米）。 |
| 产品重量 |
桌面型： 54.4 千克（120.0 磅）， 机架扩展笼： 54.4 千克（120.0 磅）。 |
| 配件信息 | ||
| FC号 | PN号 | 描述 |
| CPU | ||
| 4966 |
10N9377 10N9725 46K6595 46K6769 46K7066 46K7593 46K7594 |
2-core 4.2GHz POWER6 Processor Card |
| 系统板 | ||
| 46K6726 |
System backplane, 3.5 and 4.2 GHz processor |
|
| 46K7761 |
System backplane, 3.5, 4.2, and 5.0 GHz processor |
|
| 内存 | ||
| 4520 | 77P6497 |
1GB (2x512MB) RDIMMs, 667MHz, 512MB DRAM |
| 4521 | 77P6498 |
2GB (2x1GB) RDIMMs, 667MHz, 512MB DRAM |
| 4522 | 77P6499 |
4GB (2x2GB) RDIMMs, 667MHz, 512MB DRAM |
| 4523 | 77P6500 |
8GB (2x4GB) RDIMMs, 667MHz, 512MB Stacked DRAM |
| 4524 | 77P7504 |
16GB (2x8GB) RDIMMs, 400MHz, 1GB Stacked DRAM |
| 硬盘 | ||
| 1267 |
26K5176 26K5537 39J1469 39J3696 39J3699 42C0216 42C0256 43L9028 53P3240 53P3360 97P2930 97P2991 97P3031 |
70.56GB 15k rpm Disk Unit |
| 1268 |
26K5177 39J1470 39J3697 39J3700 42C0217 42C0257 97P2993 |
141.12GB 15k rpm Disk Unit |
| 1269 |
42C0218 42R6676 42R6677 |
282.25GB 15k rpm Disk Unit |
| 3646 |
10N7199 10N7200 10N7230 42R4233 |
73 GB 15K RPM SAS Disk Drive |
| 3647 |
10N7203 10N7204 10N7232 42R4234 |
146 GB 15K RPM SAS Disk Drive |
| 3648 |
10N7207 10N7208 10N7234 42R5648 |
300 GB 15K RPM SAS Disk Drive |
| 3676 |
433B 42R6678 42R6690 42R6684 |
69.7GB 15k rpm SAS Disk Drive |
| 3677 |
433C 42R6679 42R6685 42R6691 |
139.5GB 15k rpm SAS Disk Drive |
| 3678 | 433D 42R6692 | 283.7GB 15k rpm SAS Disk Drive |
| 4327 |
26K5176 36K5537 39J1469 39J3696 39J3699 42C0216 42C0256 43L9028 53P3240 53P3360 97P2930 97P2991 97P3031 |
70.56GB 15k rpm Disk Unit |
| 4328 |
26K5176 36K5537 39J1469 39J3696 39J3699 42C0216 42C0256 43L9028 53P3240 53P3360 53P3361 97P2930 97P2991 97P3031 |
141.12GB 15k rpm Disk Unit |
| 4329 |
42C0218 42R6676 42R6677 |
282.25GB 15k rpm Disk Unit |
| RAID卡 | ||
| 5582 |
39J1702 40N9889 42R4460 42R5130 42R5133 42R8305 44V3478 44V3481 44V4013 44V4733 64P1383 97P6130 |
5738 Ctlr w/Aux Write Cache, Cache battery pack 39J5554. The 5582 includes an IOP-based 5738 PCI-X Quad-Channel Ultra320 SCSI RAID Adapter and a CCIN 574F auxiliary-write cache IOA. 5582 provide RAID 5 or RAID 6 capability. |
| 5583 |
39J1702 40N9889 42R4053 42R4460 42R4560 42R5130 42R5133 42R8305 44V3478 44V3481 44V4733 64P1383 97P6130 |
5777 Ctlr w/Aux Write Cache, Cache battery pack 39J5554.The 5583 includes an IOPless, 5777 PCI-X Quad-Channel Ultra320 SCSI RAID Adapter and a CCIN 574F auxiliary-write cache IOA. 5583 provide RAID 5 or RAID 6 capability. |
| 5679 |
42R4635 44V3139 44V3140 44V3298 44V4145 44V4192 44V4734 44V5554 44V6093 46K6109 74Y5667 |
SAS RAID Enablement |
| 5737 |
571B 39J2012 39J3534 39J5024 42R4855 42R8739 44V5587 97P4152 97P4847 |
PCI-X DDR Dual Channel Ultra320 SCSI RAID Adapter, Cache battery pack 39J5555. |
| 5738 |
40N9889 42R4460 42R5130 42R8305 44V3478 44V4013 44V4733 97P6130 |
PCI-X Disk Ctlr-1.5GB w/IOP, Cache battery pack 39J5554. |
| 5739 |
39J0273 39J5909 42R3867 42R3965 42R3969 42R4226 42R4227 42R4280 42R5261 42R6011 42R6578 62R6579 44V3306 33V3480 44V4608 44V5817 74Y5665 |
PCI-X EXP24 Ctlr-1.5GB w/IOP |
| 5776 |
571B 39J2012 39J3534 39J5024 42R4855 42R8739 44V5587 97P4152 97P4847 |
PCI-X DASD Controller-90MB No IOP, Cache battery pack 39J5555. |
| 5777 |
40N9889 42R4460 42R5130 42R8305 44V3478 44V4013 44V4733 97P6130 |
PCI-X Disk Ctlr-1.5GB No IOP |
| 5778 |
42R3867 42R6579 44V3480 39J0273 39J5909 42R3867 42R3965 42R3969 42R4226 42R4227 42R4280 42R5261 42R6011 42R6578 42R6579 44V3306 44V3480 44V4608 44V5817 74Y5665 |
PCI-X EXP24 Ctl-1.5GB No IOP |
| 5781 |
39J0273 39J5909 42R3857 42R3965 42R3969 42R4226 42R4227 42R4280 42R5261 42R6011 42R6578 42R6579 44V3306 44V3480 44V4608 44V5817 74Y5665 |
PCI-X EXP24 Ctlr-1.5GB w/IOP |
| 5782 |
42R3867 42R6579 44V3480 39J0273 39J5909 42R3867 42R3965 42R3969 42R4226 42R4227 42R4280 42R5261 42R6011 42R6578 42R6579 44V3306 44V3480 44V4608 44V5817 74Y5665 |
PCI-X EXP24 Ctl-1.5GB No IOP |
| 5912 |
572A 44V4413 4V4414 44V5195 44V8579 |
PCI-X DDR Dual - x4 SAS Adapter |
| SCSI卡 | ||
| 5736 |
39J1643 39J2862 39J3536 39J4996 39J5022 42R4860 42R8736 44V5591 42R4362 52P8558 |
PCI-X DDR 2.0 Dual Channel Ultra320 SCSI Adapter |
| 5775 |
39J1643 39J2862 39J3536 39J4996 42R4860 42R8736 44V5591 |
PCI-X Tape/DASD Controller No IOP |
| 网卡 | ||
| 5700 |
00P3055 00P4499 03N6981 05N6768 09P5386 10N8586 11P3847 12R9314 15R7536 |
IBM Gigabit Ethernet-SX PCI-X Adapter |
| 5701 |
00G2380 00P3056 00P4501 00P6130 03N6070 03N6524 09P5389 21P4745 53P5450 80P4024 80P7033 |
IBM 10/100/1000 base-TX Ethernet PCI-X Adapter |
| 5706 |
00G2380 00P4289 00P6131 03N5297 03N6070 53P5450 80P4024 80P7033 |
IBM 2-Port 10/100/1000 base-TX Ethernet PCI-X Adapter |
| 5707 |
00P4290 00P6132 03N6973 05N6768 10N8587 11P3847 12R9314 15R7536 53P5450 80P4024 80P6451 80P7033 |
IBM 2-Port Gigabit Ethernet-SX PCI-X Adapter |
| 5721 |
573A 03N4590 05N6768 10N8264 10N9774 10N9775 11P3847 12R9314 15R75836 74Y2621 80P6636 80P7055 |
10 Gb Ethernet-SR PCI-X 2.0 DDR Adapter |
| 5722 |
576A 03H4588 10N8263 10N9776 10N9777 12R6249 12R9315 80P6634 80P7053 |
10 Gb Ethernet-LR PCI-X 2.0 DDR Adapter |
| 5740 | 03N5444 |
4-Port 10/100/1000 base-TX Ethernet PCI-X Adapter |
| 5767 |
10N6845 10N7405 46K6601 |
2-Port 10/100/1000 base-TX Ethernet PCI Express Adapter |
| 5768 |
05H6768 10N6846 11P3847 12R9314 15R7536 46K6602 |
2-Port Gigabit Ethernet-SX PCI Express Adapter |
| 6800 |
00P3055 00P4499 03N6981 05N6768 09P5386 10N8586 11P3847 12R9314 15R7536 |
PCI 1Gbps Ethernet IOA |
| 6801 | PCI 1Gbps Ethernet UTP IOA | |
| 适配卡 | ||
| 2742 |
07L7467 21P5267 39J2298 53P1677 73H3400 73H3401 73H3685 |
SysKonnect SK-NET FDDI-LP DAS PCI |
| 2793 |
21P5289 39J2282 39J2283 44V5116 44V5319 53P0708 |
PCI 2-Line WAN w/Modem |
| 2794 | PCI 2-Line WAN w/Modem (CIM) | |
| 2805 |
21P8186 39J2290 44V5110 97P5638 |
PCI Quad Modem IOA |
| 2844 |
52G4337 21P6018 39J1719 39J3242 39J5013 43L9059 97P2694 |
PCI IOP |
| 2847 |
39J2513 39J2894 39J4035 42R6471 |
PCI IOP for SAN Load Source |
| 2893 |
26P1139 42R5678 42R8192 26P1139 42R5678 42R8192 44V5323 |
PCIe 2-Line WAN w/Modem |
| 4806 | PCI-X Crypto Coprocessor | |
| 6805 |
21P5267 39J2298 53P1677 |
PCI 2-Line WAN IOA No IOP |
| 6808 |
21P8186 39J2290 44V5110 97P5638 |
PCI 4-Modem WAN IOA No IOP |
| 6809 |
21P8190 39J2294 44V5113 97P5641 |
PCI 4-Modm WAN IOA NoIOP CIM |
| 6833 |
21P5289 39J2282 39J2283 44V5116 53P0708 |
PCI 2-Line WAN w/Modem NoIOP |
| 显卡 | ||
| 633 | Graphics Adapter | |
| 光纤卡 | ||
| 629 | 4Gbps Fibre Channel (1-Port) | |
| 630 |
03N6056 30R5219 46K7342 |
PCI-X 1Gbps iSCSI TOE-Copper |
| 631 | 03N6058 30R5519 | PCI-X 1Gbps iSCSI TOE-Optic |
| 5759 |
03N5027 03N5029 03N6768 10N8620 10N3847 12R9314 |
4 Gb Dual-Port Fibre Channel PCI-X 2.0 DDR Adapter |
| 5760 |
03N5014 3N5016 46K6838 46K6840 |
PCI-X Fibre Chan Disk Ctlr |
| 5761 |
03N5012 03N5014 03N5016 46K6838 46K6840 |
PCI-X Fibre Channel Tape Ctlr |
| 5783 |
03N6056 30R5219 46K7342 |
System i5 Integrated xSeries PCI-x iSCSI HBA (copper) |
| 5784 | 03N6058 30R5519 |
System i5 Integrated xSeries PCI-x iSCSI HBA (fiber) |
| 电源 | ||
| 5138 | 05H4646 | Redundant Power and Cooling |
| 7707 |
44V3559 44V4951 44V7292 |
Power Supply, 1700 Watt AC, Hot-swap, base and Redundant |
| 稳压模块 | ||
| 44V5183 |
Memory Voltage regulator 95 A (VRM1A, VRM1B) |
|
| 2A2C | 42R6498 42R8609 | Voltage regulator 30 A (VRM2) |
| 电池 | ||
| 39J5554 97P4846 | IBM Li-ion Cache Battery | |
| 39J5555 |
Cache battery pack for RAID card 571B, 1913, or 5737. |
|
| 光驱 | ||
| 5756 |
39J5773 39J5774 42R5292 42R5293 |
IDE Slimline DVD-ROM Drive |
| 5757 |
18P8166 39J5771 39J5772 42R7969 42R7970 |
IBM 4.7 GB IDE Slimline DVD-RAM Drive |
| 磁带机 | ||
| 5619 | 80/160GB DAT160 SAS Tape Drive | |
| 5746 |
24R1922 35L2086 45E1126 45E1127 45E1129 95P4436 95P4450 96P1203 |
Half High 800GB/1.6TB LTO4 SAS Tape Drive |
| 5907 |
18P7912 21F8763 23R2528 23R2530 59H3465 59H4456 59H4457 59H4458 |
36/72GB 4mm DAT72 SAS Tape Drive |
| 磁带 | ||
| 4684 | 39J5594 53P2386 | 30GB 1/4-Inch Cartridge Tape |
| 4687 |
04N2351 04N2567 09L5276 09L5277 35L0967 39L5596 45E0670 53P2650 95P1868 95P1869 |
50GB 1/4-Inch Cartridge Tape |
| 5689 | 23R5635 | DAT160 Data Cartridge |
| 5747 | IBM LTO Ultrium 4 800 GB Data Cartridge | |
| 线缆 | ||
| 3668 | 42R5751 |
SAS Cable, DASD Backplane to Rear Bulkhead |
| 其它 | ||
| 620 | Direct Attach-5700 | |
| 621 | Direct Attach-5701 | |
| 296C | 44V4749 | Control panel |
| 4746 |
21F5093 21H5497 39J3707 39J5129 44V7382 55F4343 97H7760 |
PCI Twinaxial Workstn IOA |
| 6598 | 12R7457 64P1426 | Disk Slot Fillers (Quantity 4) |
| 7188 | Power Distribution Unit | |
| 7862 | 21P8331 97P5663 | Blind Swap Cassette (Long) |
| 7863 |
21P8333 44V5205 97P6483 |
Blind Swap Cassette (Double) |
| 8345 |
10N9664 44V4270 44V5561 46K6634 46K6635 |
DASD/Media Backplane for 3.5" DASD/DVD/Tape; with External SAS Port |
