| 整机信息 | |

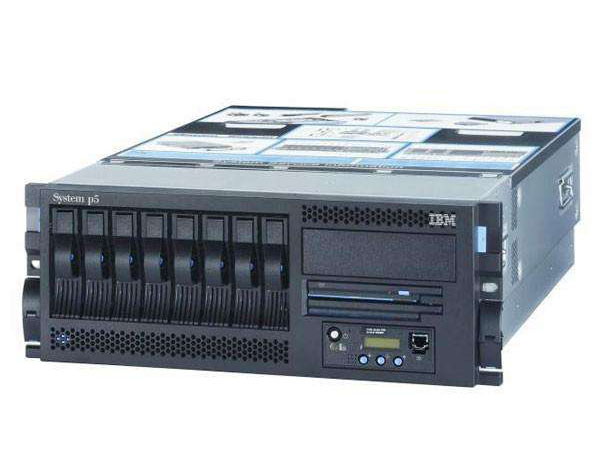

| 名称 | IBM System p5 55A |
| 型号 | 9133-55A |
| 品牌 | IBM |
| 类型 | 小型机 |
| CPU信息 |
2 路或 4 路 64 位 2.1 GHz 的 POWER5+ 处理器， 4 路或 8 路 64 位 1.65 GHz 的 POWER5+ 的处理器。 |
| CPU类型 | POWER5+ |
|
CPU插槽 数 |
2 |
| CPU激活 | 需要激活码 |
| 机架类型 | 机架式，塔式 |
| 机架空间 | 4U |
| 硬盘信息 | 最大硬盘背板数量为 2 |
|
最大硬盘 数量 |
8 |
| 内存提示 |
插槽位在 CPU 上， 单 CPU 有 8 个槽位， 双 CPU 最多支持 16 个槽位, 528MHz DDR2 的内存。 |
|
支持内存容 量范围 |
1GB-64GB |
|
内存插槽 数量 |
16 |
|
内存是否 需要激活 |
不需要激活 |
| 电源描述 |
100v 到 127v， 或者 200v 到 240v 交流。 |
|
单机电源 数量 |
2 |
| 介质托架 |
2 个细线电缆和 1 个半高介质托架。 |
|
适配器插 槽 |
5 个 PCI-X 适配器插槽 (4 个 133 兆赫，1 个 266 兆赫 （DDR）)。 |
| 端口 |
2 个 10/100/1000 以太网端口， 可选的 2 千兆位光纤通道， 万兆以太网和 4x InfiniBand® 适配器， 2 个 USB 端口， 2 个 HMC 端口 和 2 个串口。 |
| IO适配器 |
双通道 Ultra320 SCSI 控制器 （仅限内部使用，可选 RAID）。 |
| IO扩展 |
最多8个7311-D20 I/O扩展抽屉 提供7个64位PCI-x插槽和 多达12个磁盘支架。 |
| 发布日期 | 2005/10/14 |
| 下架日期 | 2008/12/12 |
|
服务截止 期 |
|
| 操作系统 |
AIX 5L Versions 5.2/5.3， SUSE LINUX Enterprise Server 9 f或者 POWER (SLES 9) 或者更高版本，Red Hat Enterprise LinuX AS 3 f 或者 POWER updat 4 (RHEL AS 3) 或者更高版本。 |
| 产品尺寸 |
桌边式： 21.1"高x7.9"宽x30.7"长 （533 毫米 x 201 毫米 x 779 毫米）， 机架抽屉： 7.0"高（4U）x17.2"宽x27.0"长 （178 毫米 x 437 毫米 x 731 毫米）。 |
| 产品重量 | 91.0 磅（41.4 千克）。 |
| 配件信息 | ||
| FC号 | PN号 | 描述 |
| CPU | ||
| 8285/53BA | 10N8123 |
4-core 1.65GHz POWER5+ Processor Card, 2 x 36MB L3 Cache, 8 Memory DIMM Slots |
| 8286/53BB | 10N8125 |
2-core 2.1GHz POWER5+ Processor Card, 36MB L3 Cache, 8 Memory DIMM Slots |
| 8309/831A |
03N6734/10N6463/ 10N7778 |
2-Way 1.65GHz POWER5+ Processor Card, 36MB L3 Cache, 8 Memory DIMM Slots |
| 8312 | 03N6737/10N6466 |
2-Way 1.9GHz POWER5+ Processor Card, 36MB L3 Cache, 8 Memory DIMM Slots |
| 8313 |
03N6500/03N6740/ 03N6951/10N6469 |
4-Way 1.5GHz POWER5+ Processor Card, 2x36 MB L3 cache, 8 Memory DIMM Slots |
| 系统板 | ||
| 28D9 |
10N6472/32N1238/ 32N1239 |
System backplane |
| 28EC |
03N7294/03N4987/ 03N6954/03N6743/ 80P6381/80P6700 |
System backplane |
| 内存 | ||
| 1930 | 12R8251/15R7166 |
1GB (2x512MB) DIMMs, 276-PIN, 533MHz DDR2 SDRAM |
| 1931 | 12R8255/15R7168 |
2GB (2x1GB) DIMMs, 276-PIN, 533MHz DDR2 SDRAM |
| 1932 | 12R8239/15R7170 |
4GB (2x2GB) DIMMs, 276-PIN, 533MHz DDR2 SDRAM |
| 1934 | 12R8247/15R7172 |
8GB (2x4GB) DIMMs, 276-PIN, 533MHz DDR2 SDRAM |
| 8231 |
Memory Offering -- 32GB/64GB/96GB/128GB (Multiples of 4 of 2x4GB DIMMs) |
|
| 硬盘 | ||
| 1968 |
03N5261/03N5262/ 03N6327/17R6169/ 26K5161/26K5250/ 26K5573/52P8626/ 80P3406/80P6320 |
73.4 GB 10,000 RPM Ultra320 SCSI Disk Drive Assembly |
| 1969 |
03N5267/03N6332/ 26K5162/26K5259/ 26K5574/52P8627/ 80P3408/80P6321 |
146.8 GB 10,000 RPM Ultra320 SCSI Disk Drive Assembly |
| 1970 |
03N5277/03N6341/ 03N6342/24P3749/ 26K5164/26K5254/ 26K5570/52P8628/ 80P6324/80P6422 |
36.4 GB 15,000 RPM Ultra320 SCSI Disk Drive Assembly |
| 1971 |
03N5281/03N5282/ 03N6346/03N6347/ 24P3750/26K5165/ 26K5255/26K5571/ 52P8629/80P6325/ 80P6424 |
73.4 GB 15,000 RPM Ultra320 SCSI Disk Drive Assembly |
| 1972 |
03N5288/03N6351/ 03N6352/26K5166/ 26K5256/26K5572/ 80P3412/80P6426 |
146.8 GB 15,000 RPM Ultra320 SCSI Disk Drive Assembly |
| 1973 |
03N5272/03N6337 /03N6357/26K5163/ 26K5284/26K5575 /80P3410/80P6322 |
300 GB 10,000 RPM Ultra320 SCSI Disk Drive Assembly |
| 3585 |
10N7195/10N7211/ 10N8578 |
300 GB 15K RPM SCSI Disk Drive |
| 硬盘背板 | ||
| 6592/292C |
03N5876/03N5997/ 03N5998/32N1200/ 32N1201/64P1269/ 80P4611/80P4770/ 80P5002/80P5393/ 80P6430/ |
Ultra320 SCSI disk drive 4-pack backplane for external SCSI port. (This feature enables external SCSI devices to connect to internal SCSI controller channels.) |
| 6593/292E |
03N5877/03N5880/ 64P1270/80P5003/ 80P5105 |
Ultra320 SCSI 4-Pack for Disk Mirroring |
| RAID卡 | ||
| 1907 |
39J1309/39J3540/ 39J4604/39J5653/ 39J5654 |
Dual Channel SCSI RAID Enablement Daughter Card, Cache battery pack 42R5070. |
| 1913 |
571B/39J2418/ 39J5026/42R4857 |
PCI-X DDR Dual Channel Ultra320 SCSI RAID Adapter, Cache battery pack 39J5555. Note: The 1913 adapter is not supported by i5/OS. |
| 1975 |
39J5107/52P8630/ 80P6515 |
PCI-X Dual Channel Ultra320 SCSI RAID Adapter |
| SCSI卡 | ||
| 1912 |
39J2421/39J4998/ 42R4862/42R4362/ 52P8558 |
PCI-X DDR Dual Channel Ultra320 LVD SCSI Adapter |
| 1974 | 52P8632/80P6513 |
PCI-X Dual Channel Ultra320 SCSI Adapter |
| 网卡 | ||
| 1954 | 00N5444/03N5446 |
4-Port 10/100/1000 baseT Ethernet PCI-X Adapter |
| 1978 |
03N6981/03N6982/ 05N6768/11P3847/ 12R9314/15R7536/ 52P8641/83P6444 |
IBM Gigabit Ethernet-SX PCI-X Adapter |
| 1979 |
00G2380/03N6070/ 03N6525/52P8642/ 80P6445 |
10/100/1000 base-TX Ethernet PCI-X Adapter |
| 1981 |
03N6970/05N6768/ 11P3847/12R9314/ 15R7536/52P8614/ 80P6452 |
10 Gigabit Ethernet -SR PCI-X Adapter |
| 1982 |
03N6972/12R6249/ 12R9315/52P8615/ 80P6453 |
IBM 10 Gigabit Ethernet-LR PCI-X Adapter |
| 1983 |
00G2380/03N6070/ 52P8643/80P6450 |
IBM 2-Port 10/100/1000 base-TX Ethernet PCI-X Adapter |
| 1984 |
03N6974/05H6768/ 11P3847/12R9314/ 15R7536/52P8644/ 80P6451 |
IBM 2-Port Gigabit Ethernet-SX PCI-X Adapter |
| 5721 |
573A/03N4590/ 05N6768/10N8264/ 10N9774/10N9775/ 11P3847/12R9314/ 15R75836/74Y2621/ 80P6636/80P7055 |
10 Gb Ethernet-SR PCI-X 2.0 DDR Adapter |
| 5722 |
576A/03H4588/ 10N8263/10N9776/ 10N9777/12R6249/ 12R9315/80P6634 /80P7053 |
10 Gb Ethernet-LR PCI-X 2.0 DDR Adapter |
| 适配卡 | ||
| 80P3259 | VPD card. | |
| 1809 |
03N6028/03N6662/ 39J5538/42R5841 |
GX Dual-port 4x HCA |
| 1820 | 26K7434/26K7452 | PCI-X Dual-port 4x IB HCA |
| 2738 |
28EF/52P8639/ 80P2994/80P6227 |
2-Port USB PCI Adapter |
| 2943 |
07L9001/07L9822/ 11H5967/11H5968/ 11H5969/11H6011/ 42R4761/6298964/ 93H6540/93H6541/ 94H6541 |
8-Port Asynchronous Adapter EIA-232/RS-422, PCI bus |
| 2947 |
07L8796/53G0638/ 84H3413/87H3311/ 87H3410/87H3413/ 87H3420/87H3427/ 87H3439/87H3440/ 87H3442/87H3450/ 87H3500/87H3565/ 87H3566/87H3567/ 87H3568/87H3613/ 87H3615/87H3616/ 87H3620/87H3617/ 87H3621/87H3622/ 87H3625/87H3626/ 87H3627/87H3630/ 87H3631/87H3632/ 87H3663/87H3715 /87H3772 |
IBM ARTIC960Hx 4-Port Multiprotocol PCI Adapter |
| 4764 |
12R6540/12R6714/ 41U0441/41U0442/ 41V0161 |
PCI-X Cryptographic Coprocessor (FIPS 4) |
| 5723 | 64P1243/80P4353 |
2-Port Asynchronous EIA-232 PCI Adapter |
| 6312 |
00P3119/10N7380/ 87H3588 |
Quad Digital Trunk Telephony PCI Adapter |
| 显卡 | ||
| 1980 |
03N5853/03N5855/ 52P8645/80P6408/ 80P6411 |
POWER GXT135P Graphics Accelerator with Digital Support |
| 2842 |
00P2939/00P4474/ 00P4476/09P3425/ 09P6543/09P6547/ 10N9107/10N9108/ 80P7124/80P7125 |
POWER GXT4500P Graphics Accelerator |
| 2843 |
00P4471/00P4473/ 09P3391/09P6536/ 09P6540/09P6595/ 10N9105/80P7117/ 80P7118 |
POWER GXT6500P Graphics Accelerator |
| 2849 |
00P5756/00P5758/ 03N5853/09P5758 |
POWER GXT135P Graphics Accelerator with Digital Support |
| 光纤卡 | ||
| 1905 |
03N5005/03N5010/ 46K6838 |
4 Gb Single-Port Fibre Channel PCI-X 2.0 DDR Adapter |
| 1910 |
03N5020/03N5025/ 05N6768/11P3847/ 12R9314 |
4 Gb Dual-Port Fibre Channel PCI-X 2.0 DDR Adapter |
| 1977 |
03N6439/03N7067/ 05N6768/10N8623/ 11P3847/12R9314/ 15R7536/52P8633/ 80P6101/80P6455 |
2 Gigabit Fibre Channel PCI-X Adapter |
| 1986 |
26K6490/30R5209/ 32R1926/49Y4236/ 52P8480/80P4092 |
1 Gigabit iSCSI TOE PCI-X on Copper Media Adapter |
| 1987 |
30R5509/52P8456/ 80P4094 |
1 Gigabit iSCSI TOE PCI-X on Optical Media Adapter |
| 电源 | ||
| 6289 | 23R0631/42R8662 |
Power Supply, 1050 Watt, DC, Hot-swap, base and Redundant |
| 7889 |
21P8243/39J2576/ 39J3741/39J5638/ 42R7854/42R8401/ 52P8646/52P8647/ 52P8654/52P8655/ 52P8656/52P8657/ 52P8658/52P8659/ 52P8660/52P8661/ 52P8662/52P8663/ 52P8664/52P8665/ 52P8666/52P8667/ 52P8668/97P5883/ 97P6760 |
Power Supply, 1475 watt AC, Hot-swap, base and Redundant |
| 稳压模块 | ||
| 7876 | 44P3193 | 1.2V Processor Power Regulator |
| 电池 | ||
|
04N2496/22R2717/ 42R5070/44L0313 |
Battery for raid card. | |
| 光驱 | ||
| 1993 |
03N4713/18P8166/ 39J3532/42R7967/ 42R7968/52P8450/ 52P8636/80P6340/ 80P6341 |
IBM 4.7 GB IDE Slimline DVD-RAM Drive |
| 1994 |
03N4712/52P8635/ 80P6300 |
IDE Slimline DVD-ROM Drive |
| 磁带机 | ||
| 1892 | 95P1975/95P1977 | VXA-320 160/320GB Internal Tape Drive |
| 1991 |
24R1986/24R1987/ 52P8638/95P1987/ 95P1989 |
36/72GB 4mm Internal Tape Drive |
| 1992 |
19P4876/19P4877/ 19P4878/19P4879/ 19P4880/19P4897/ 19P4898/24R1988/ 24R1989/24R2134/ 24R2135/24R2137/ 24R2138/39J5601/ 52P8652/59P6746/ 95P1870/95P1871/ 96P1771/96P1772/ 97P3045/97P3046 |
IBM 80/160 GB Internal Tape Drive with VXA Technology |
| 1997 | 96P1776/96P1777 |
200/400GB Half High Ultrium 2 Tape Drive |
| 磁带 | ||
| 6271 | LTO Ultrium 200GB Data Cartridge | |
| 风扇 | ||
| 97P6567 | PCI fan | |
| 97P6568 | CPU fan. | |
| 导轨 | ||
| 7162 |
42R3866/52P8414/ 97P5271 |
IBM/OEM Rack-mount Drawer Rail Kit |
| 7163 | 42R3866/52P8414 | OEM Rack-mount Drawer Rail Kit |
| 7192 |
IBM Rack-mount Drawer Bezel and Hardware |
|
| 7874 |
OEM Rack-mount Drawer Bezel and Hardware |
|
| 线缆 | ||
| 1835 |
26R0813/42R6244/ 44V5082/97P6113 |
3 meter 4x Cable |
| 1836 |
21P8318/26R0847/ 26R0848/42R6245/ 44V5083 |
8 meter 4x Cable |
| 1839 |
39J4319/42R6243/ 44V5081 |
1.5 meter 4x Cable |
| 2114 | 40H6603/52G0173 |
PCI SCSI Adapter 16-Bit Differential External Y Cable |
| 2118 |
01K6497/07L9628/ 76H0518 |
Converter Cable VHDCI to P Mini-68 pin to 68 pin 0.3M |
| 2424 | 52G4291 |
0.6M 16-bit SCSI-2 System to System Cable |
| 2425 | 40H2172/52G4233 |
2.5M 16-bit SCSI-2 System-to- System Cable |
| 2456 |
09P3044/11P1352/ 11P1373/12R9321 |
LC-SC 50 Micron Fiber Converter Cable |
| 2459 |
00P4023/11P1374/ 12R9322 |
LC-SC 62.5 Micron Fiber Converter Cable |
| 2709 |
87H3517/87H3518/ 87H3587 |
ARTIC960Hx/RxD 4-Port T1 RJ-45 Cable |
| 2710 |
87H3514/87H3515/ 87H3586 |
ARTIC960Hx/RxD 4-Port E1 RJ-45 Cable |
| 2861 |
07L8817/87H3404/ 87H3405/87H3406/ 87H3439/87H3568 |
ARTIC960Hx 4-Port EIA-232 Cable |
| 2863 |
53G0638/87H3407/ 87H3408/87H3409/ 87H3566 |
ARTIC960Hx 4-Port X.21 Cable |
| 2864 |
87H3398/87H3399/ 87H3400/87H3442/ 87H3565 |
ARTIC960Hx 4-Port V.35 (DTE Cable |
| 2871 |
34f0875/34f0876/ 87h3776/87H3793/ 87H3795 |
ARTIC960RxD Quad DTA, T1, 100 Ohm, 3M 4-Port Cable |
| 2872 | 54F0740/87H3791 |
ARTIC960RxD Quad DTA, T1, 100 Ohm, 15M Extension Cable |
| 2873 |
34f0875/34f0876/ 87h3773/87H3790/ 87H3791 |
IBM ARTIC960RxD Quad DTA, E1, 120 Ohm Balanced, 3M 4-dro Cable |
| 2874 | 05F2045 |
IBM ARTIC960RxD Quad DTA, E1, 120 Ohm Balanced, 7.5M Extension Cable |
| 2877 | 08L1215/42R4756 |
IBM ARTIC960RxD Quad DTA, H.100, 4-dro Cable |
| 2934 |
10N6535/12H1204/ 40H0744/40H2206 |
Asynchronous Terminal/Printer Cable EIA-232 |
| 2936 |
30F9453/42R5206/ 53F3205/53F3662/ 6223741/6323741 |
Asynchronous Cable EIA-232/V.24 |
| 2951 |
33F8985/93H2899/ 93H5263 |
Cable V.24 / EIA-232 |
| 2952 |
71F0163/93H2900/ 93H5264 |
Cable V.35 |
| 2953 |
73H2508/93H2901/ 93H5265 |
Cable V.36 / EIA-499 |
| 2954 |
40F9904/93H2902/ 93H5267 |
Cable X.21 |
| 3124 |
10N7158/88G4771/ 88G4853 |
Serial to Serial Port Cable for Drawer/Drawer |
| 3125 |
10N7159/88G4772/ 88G4854 |
Serial to Serial Port Cable for Rack/Rack |
| 3146 |
00P3237/09P2631/ 21P5454/39J2562/ 44V5140 |
RIO-2(Remote I/O-2Cbl 1.2M |
| 3147 |
00P3238/09P2632/ 31P6131/39J2554/ 43L8981/53P2676 |
RIO-2(Remote I/O-2Cbl 3.5M |
| 3148 |
00P3239/09P2633/ 21P5456/39J2561/ 43L8982 |
RIO-2 (Remote I/O-2) Cable, 10M |
| 3156 | 00P5238/03N5867 | RIO-2 (Remote I/O-2 Cable 1.75M) |
| 3168 | 00P5239/03N5866 | RIO-2 (Remote I/O-2 Cbl 2.5M |
| 3652 | 42R6762/44V4147 | SAS Cable (EE Drawer to Drawer 1M |
| 3653 | 42R6727/44V4148 | SAS Cable (EE) Drawer to Drawer 3M |
| 3654 | 42R6728/44V4149 | SAS Cable (EE) Drawer to Drawer 6M |
| 3661 | 42R6742/44V4154 |
SAS Cable (X Adapter to SAS Enclosure Dual Controller/ Dual Path 3M |
| 3662 | 42R6743/44V4155 |
SAS Cable (X) Adapter to SAS Enclosure, Dual Controller/ Dual Path 6M |
| 3663 | 42R6744/44V4156 |
SAS Cable (X) Adapter to SAS Enclosure, Dual Controller/ Dual Path 15M |
| 3684 | 42R8118/44V4163 |
SAS Cable (AE Adapter to Enclosure single controller/ single path 3M |
| 3685 | 42R8120/44V4164 |
SAS Cable (AE) Adapter to Enclosure, single controller/ single path 6M |
| 3691 | 42R6788/44V4157 |
SAS Cable (YO Adapter to SAS Enclosure Single Controller/Dual Path 1.5 M |
| 3692 | 42R6789/44V4158 |
SAS Cable (YO) Adapter to SAS Enclosure, Single Controller/Dual Path 3 M |
| 3693 | 42R6790/44V4159 |
SAS Cable (YO) Adapter to SAS Enclosure, Single Controller/Dual Path 6 M |
| 3694 | 42R6791/44V4160 |
SAS Cable (YO) Adapter to SAS Enclosure, Single Controller/Dual Path 15 M |
| 3925 |
00P2165/23R4632/ 40H6328/40H6329 |
Serial Port Converter Cable 9-Pin to 25-Pin |
| 3926 | 00P2166 | Asynch Printer/Terminal Cable 9-pin to 25-pin 4M |
| 3927 | 10N7712 | Serial Port Null Modem Cable 9-pin to 9-pin 3.7M |
| 3928 | 10N7713 | Serial Port Null Modem Cable 9-pin to 9-pin 10M |
| 4242 |
07L9633/08L0491/ 42R4755 |
6 Foot Extender Cable for Displays (15 pin D-shell to 15 pin D-shell |
| 4256 |
00P2969/10N7374/ 32N1311/44P1375 |
Extender Cable - USB Keyboards 2M |
| 4263 |
00P6267/39J2634/ 39J4140/42R4119/ 53P4486/97P2548/ 97P5103/97O5354 |
SCSI Cables (Power and Logic) PCI Riser to SCSI LVD Media Device; Mounting Tray |
| 4274 | 39J5847/97P4962 | SCSI Cable PCI Adapter to Hot-Swap Disks |
| 4353 | 03N3493 | H-100 Bus 8-position Cable |
| 4691 | 53P2237 |
Rack Status Beacon Cable Junction Box To Drawer Or Status Beacon |
| 4692 | 53P2854 |
Rack Status Beacon Cable Junction Box Daisy Chain |
| 4693 | 53P2231 | Rack Beacon Junct Box Cable |
| 6001 | 00G1277/42F6839 | Power Control Cable (SPCN-2 meter) |
| 6006 |
09P1251/22R5239/ 93H8045 |
Power Control Cable (SPCN-3 meter) |
| 6007 |
21F9358/22R5221/ 55F4533 |
Power Control Cable (SPCN 15 meter) |
| 6008 |
21F9469/22R5219/ 55F4532/74F0188 |
Power Control Cable (SPCN 6 meter) |
| 6029 | 21F9359/22R5222 | Power Control Cable (SPCN 30 meter) |
| 6458 |
Power Cable- Drawer to IBM PDU 14-foot 250V/10A |
|
| 6460 |
Power Cor(14-foot Drawer To OEM PDU (125V 15A Plug Type #4 |
|
| 6469 |
Power Cor(14-foot Drawer to OEM PDU (250V 15A United States Plug Type #5 |
|
| 6470 |
Power Cor(6-foot To Wall (125V 15A Plug Type #4 |
|
| 6471 |
Power Cor(9-foot To Wall/OEM PDU (125V 15A Plug Type #70 |
|
| 6472 |
Power Cor(9-foot To Wall/OEM PDU (250V 16A Plug Type #18 |
|
| 6473 |
Power Cor(9-foot To Wall/OEM PDU (250V 10A Plug Type 19 |
|
| 6474 |
Power Cor(9-foot) To Wall/OEM PDU (250V 13A) Plug Type #23 |
|
| 6475 |
Power Cor(9-foot) To Wall/OEM PDU (250V 16A) Plug Type #32 |
|
| 6476 |
Power Cor(9-foot) To Wall/OEM PDU (250V 10A) Plug Type #24 |
|
| 6477 |
Power Cor(9-foot) To Wall/OEM PDU (250V 16A) Plug Type #22 |
|
| 6478 |
Power Cor(9-foot) To Wall/OEM PDU (250V 16A) Plug Type #25 |
|
| 6479 |
Power Cor(9-foot) To Wall/OEM PDU (250V 10A) Plug Type #6 |
|
| 6487 |
Power Cor(6-foot To Wall (250V 15A United States Plug Type #5 |
|
| 6488 |
Power Cor(9-foot To Wall/OEM PDU (125V 15A or 250V 10A Plug Type #2 |
|
| 6493 |
Power Cor(9-foot) To Wall/OEM PDU (250V 10A) Plug Type #62 |
|
| 6494 |
Power Cor(9-foot) To Wall/OEM PDU (250V 10A) Plug Type #69 |
|
| 6495 |
Power Cor(9-foot) To Wall/OEM PDU (250V 10A) Plug Type #73 |
|
| 6496 |
Power Cor(9-foot) To Wall/OEM PDU (250V 10A) Plug Type #66 |
|
| 6497 |
Power Cor(6-foot) To Wall/OEM PDU (250V 10A) Plug Type #10 |
|
| 6498 |
Power Cor(6-foot) To Wall/OEM PDU (250V 15A) Plug Type #34 |
|
| 6651 |
Power Cor(9-foot To Wall/OEM PDU (125V 15A Plug Type #75 |
|
| 6659 |
Power Cor(9-foot To Wall/OEM PDU (250V 15A Plug Type #76 |
|
| 6660 |
Power Cor(14-foot Drawer To OEM PDU (125V 15A Plug Type #59 (DENAN marking |
|
| 6665 |
Power Cord 3 M (10 ft Drawer to IBM PDU 250V/10A |
|
| 6669 |
Power Cor(14-foot Drawer to OEM PDU (250V 15A Plug Type #57 (DENAN marking |
|
| 6670 |
Power Cor(6-foot To Wall (125V 15A Plug Type #59 (DENAN marking |
|
| 6671 | Power Cor(9-foot) Drawer to IBM PDU 250V/10A | |
| 6672 | Power Cor(5-foot) Drawer to IBM PDU 250V/10A | |
| 6680 |
Power Cor(9-foot) To Wall/OEM PDU (250V 10A) Plug Type #6 Insulated |
|
| 6687 |
Power Cor(6-foot) To Wall (250V 15A) Plug Type #57 (DENAN marking) |
|
| 7801 |
16R0449/41V0479/ 52P7524 |
Ethernet Cable 6M Hardware Management Console to System Unit |
| 7802 |
05N5292/41V0143/ 52P7525 |
Ethernet Cable 15M Hardware Management Console to System Unit |
| 8131 | 43G0937/51G8608 | 128-Port Asynchronous Controller Cable 4.5 Meter |
| 8132 |
43F0936/43F0937/ 43G0936 |
128-Port Asynchronous Controller Cable 23cm (9-Inch |
| 8133 | 43G0935/51G8610 | RJ-45 to DB-25 Converter Cable |
| 其它 | ||
| 24P6892 | 1.8V Processor Power Regulator | |
| 97P2642 | 2.5V Processor Power Regulator | |
| 265 | AIX Partition Specify | |
| 1806 |
03N6658/39J2571/ 64P1205/80P3600/ 80P5478 |
HSL-2/RIO-G Ports - 2 Copper |
| 2591 |
03N4962/33P3339/ 52P8634 |
Ext 1.44GB Diskette Drive |
| 2.80E+06 | 39J3273/97P4935 | LCD display. |
| 3628 |
04N7160/04N7168/ 04N7170//04N7172 /04N7177/04N7529 /04N7532//04N7589/ 61H0226 |
IBM P260/P275 Color Monitor, Business Black, and Cable |
| 3636 |
31P9263/31P9264/ 31P9265/31P9266 |
L200P Flat Panel Monitor |
| 3637 |
04N7526/04N7527/ 04N7532/13F9959/ 31P7507/31P7509/ 31P7511/31P7513/ 31P7515 |
IBM T541H /L150p 15" TFT Color Monitor |
| 3638 |
22P4543/73P2310/ 73P2311/73P2313/ 73P2316 |
C220P 21" Color Monitor |
| 3639 |
13F9959/31P9575/ 31P9577/31P9584/ 31P9587/31P9590/ 73P0261 |
L180P TFT 17" Color Display |
| 3640 | L171P TFT 17" Black Display | |
| 3641 |
40K7317/40K5341/ 73P4360 |
T115 TFT 15" Color Display |
| 3642 | ThinkVision L191p Flat Panel Monitor | |
| 3644 | IBM T119 Flat Panel Monitor | |
| 3645 | 39Y9919/40k5342 | IBM T117 Flat Panel Monitor |
| 3752 | 09P3035 | Service Package |
| 4273 | 64P1271 | External SCSI Media Attach |
| 4650 | Rack Indicator-Not Factory Integrated | |
| 4651 | Rack Indicator, Rack #1 | |
| 4660 | Rack Indicator, Rack #10 | |
| 4661 | Rack Indicator, Rack #11 | |
| 4662 | Rack Indicator, Rack #12 | |
| 4663 | Rack Indicator, Rack #13 | |
| 4664 | Rack Indicator, Rack #14 | |
| 4665 | Rack Indicator, Rack #15 | |
| 4666 | Rack Indicator, Rack #16 | |
| 5001 | Customer Solution Center | |
| 5005 | software preinstall | |
| 5886 | EXP 12S Expansion Drawer | |
| 5959 | Full Width Quiet Touch Keyboard -- USB, Hungarian, #208 | |
| 5983 | USB Keybd-US English Euro | |
| 6598 | 12R7457/64P1426 | Disk Slot Fillers (Quantity 4) |
| 7191 | IBM Deskside Cover Set | |
| 7305 | SDI Software Pre-Install Indicator | |
| 7877/28D1 |
03N5895/03N5897/ 03N6004/03N6005/ 39J2521/39J2523/ 80P3510/80P4013/ 80P4137/80P4138/ 80P4179/97P3815 |
Media Backplane |
| 7917 | OEM Deskside Cover Set | |
| 7941 | Advanced POWER Virtualization | |
| 8136 |
09P4095/09P4096/ 40H2588/40H2589 |
Rack Mountable Remote Asynchronous Node 16-Port EIA-232 |
| 8422 | SpaceBall 3D Input Device | |
| 8423 | Magellan XT 3D Input Device | |
| 8424 | SpaceBall 3D Input Device (USB) | |
| 8425 | SpaceMouse Plus 3D Input Device (USB) | |
| 9004 |
Southern Hemisphere Designator for Monitors |
|
| 9300 | Language Group Specify - US English | |
| 9461 | Month Indicator | |
| 9462 | Day Indicator | |
| 9463 | Hour Indicator | |
| 9464 | Minute Indicator | |
| 9465 | Qty Indicator | |
| 9466 | Countable Member Indicator | |
| 9589 | Express Product Offering 91331E1 | |
| 9590 | Express Product Offering 91331E2 | |
| 9591 | Express Product Offering 91331E3 | |
| 9592 | Express Product Offering 91331E4 | |
| 9593 | Express Product Offering 91331E5 | |
| 9594 | Express Product Offering 91331E6 | |
| 9595 | Express Product Offering 91331E7 | |
| 9596 | Express Product Offering 91331E8 | |
| 9597 | Express Product Offering 91331E9 | |
| 9598 | Express Product Offering 91331E0 | |
| 9599 | Express Product Offering 91331EA | |
| 9600 | Express Product Offering 91331EB | |
