| 整机信息 | |

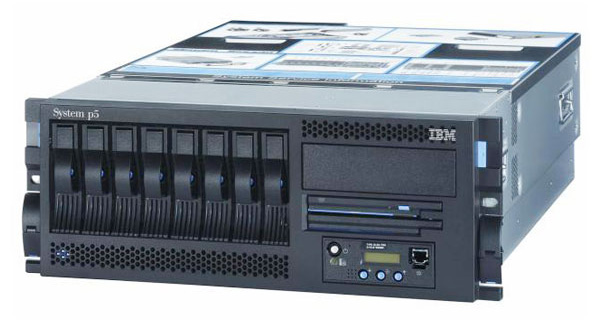

| 名称 | IBM System p5 520 |
| 型号 | 9111-520 |
| 品牌 | IBM |
| 类型 | 小型机 |
| CPU信息 |
2 路 64 位 1.65 GHz POWER5 处理器 ，1 路或 2 路 64 位 1.5 GHz Power5 处理器， 1.9 MB L2 和 36 MB L3高速缓存。 |
| CPU类型 | POWER5 |
|
CPU插槽 数 |
1 |
| CPU激活 | 需要激活码 |
| 机架类型 | 机架式，塔式 |
| 机架空间 | 4U |
| 硬盘信息 | 最大硬盘背板数量为 2 |
|
最大硬盘 数量 |
8 |
| 内存提示 |
插槽位在主板上， 可用 266 MHz DDR1 的内存。 |
|
支持内存 容量范围 |
1GB-32GB |
|
内存插槽 数量 |
8 |
|
内存是否 需要激活 |
不需要激活 |
| 电源描述 |
100v 到 127v 或者 200v 到 240v 交流。 |
|
单机电源 数量 |
2 |
| 介质托架 | 2 个细线电缆和 1 个标准的托架。 |
|
适配器插 槽 |
6 个 PCI-X 热插拨 (2 个 32位/66MHz，4 个 64位/133MHz) 。 |
| 端口 |
2 个以太网 10/100/1000 Mbps 端口， 2 个 USB 端口，2 个 HMC 端口， 2 个 串口，键盘和鼠标端口。 |
| IO适配器 |
双通道的 Ultra320 SCSI 控制器 （可选 RAID ），外置 SCSI 端口。 |
| IO扩展 |
多达 4 个可选的 7311-D20 I/O 扩展笼， 每个提供 7 个 3.3v 64 位 PCI-x 插槽 和多达 12 个磁盘支架。 |
| 发布日期 | 2004/8/31 |
| 下架日期 | 2006/5/31 |
|
服务截止 期 |
|
| 操作系统 |
AIX 5L Versions 5.2/5.3， SUSE LINUX Enterprise Server 9 或者 POWER (SLES 9) 或者更高版本， Red Hat Enterprise LinuX AS 3 f 或者 POWER Update 4 (RHEL AS 3) 或者更高版本 |
| 产品尺寸 |
桌面型： 21.0" 高 x 7.9" 宽 x 23.0" 长 （533 毫米 x 201 毫米 x 584 毫米） ；重 35.5 千克 （78 磅）， 机架扩展笼：7.0" 高 x 17.2" 宽 x 20.0" 长 （178 毫米 x 437 毫米 x 508 毫米）； 重 35.5 千克 （78 磅）。 |
| 产品重量 | 重 35.5 千克 （78 磅）。 |
| 配件信息 | ||
| FC号 | PN号 | 描述 |
| CPU | ||
| 5226/523C |
03N6638/80P5355/ 80P5356/80P6725/ 80P6975 |
2-way 1.5GHz POWER5 Processor Card, 36MB L3 Cache |
| 5229 |
03N6221/10N9543/ 80P3870/80P3871/ 80P4589/80P4816/ 80P4817/80P4924/ 80P4925/80P5586/ 80P6707 |
2-way 1.65GHz POWER5 Processor Card, 36MB L3 Cache |
| 5231 |
03N6612/10N9534/ 80P4518/80P4848/ 80P4849/80P4950/ 80P5017/80P5594/ 80P5623/80P6949 |
1-way 1.5GHz POWER5 Processor Card, No L3 Cache |
| 8955/5229 |
03N6621/10N9543/ 80P3870/80P3871/ 80P4589/80P4816/ 80P4817/80P4924/ 80P4925/80P5586/ 80P6707 |
(8955)-520 1.65GHz Proc 2-Way |
| 系统板 | ||
| 32N1272/32N1275 | SERVICE PROCESSOR CARD | |
| 80P5315 | Service processor card. | |
| 80P5530/80P6958 | System backplane. | |
| 28D7 | 32N1303 | Service processor card |
| 28F5 | 03N5875/80P6429 |
Ultra320 SCSI disk drive 4-pack backplane for external SCSI port. (This feature enables external SCSI devices to connect to internal SCSI controller channels.) |
| 内存 | ||
| 4443 | 12R9283/53P3222 |
512MB (2x256MB) DIMMs,208-pin, 250MHz DDR1 SDRAM |
| 4444 | 12R9283/53P3222 |
1GB (4x256MB) DDR1 DIMMs 208-pin, 266MHz SDRAM |
| 4445 | 00P5769/12R8614 |
4GB (4x1GB) DDR1 DIMMs 208-pin, 266MHz SDRAM |
| 4447 | 00P5767/12R9238 |
2GB (4x512MB) DIMMS 208-pin, 266MHz DDR SDRAM |
| 4449 | 00P5773/12R9257 |
8GB (4x2GB) DIMMS 208-pin, 266MHz DDR SDRAM |
| 4450 | 12R9276/16R0711 |
16GB (4x4GB) DIMMs, 208-pin, 266MHz DDR Stacked SDRAM |
| 硬盘 | ||
| 3273 |
00P2676/00P3068/ 00P3831/08K0293/ 26K5188/26K5288 |
36.4 GB 80pin Ultra320 10K SCSI Disk Drive Assembly |
| 3274 |
00P2672/00P3072/ 00P3811/00P3833/ 03N5260/03N6325/ 08K0283/26K5191/ 26K5291/26K5533 |
73.4GB 10K RPM U320 LVD 80-pin SCSI Disk Drive/Carrier ST373307LC |
| 3275 |
00P2664/00P2665/ 00P3834/00P3835/ 03N5264/03N5265/ 03N6330/08K0273/ 26K5194/26K5294/ 26K5534 |
146.8GB 10K 80 Pin RPM U320 SCSI Disk Drive/Carrier ST3146807LC |
| 3277 |
00P2692/00P2693/ 03N5275/03N6339/ 03N6340/07N6771/ 09P3631/26K5178/ 26K5278/26K5530/ 80P3159 |
36.4GB 15K 80 Pin U320 SCSI Disk Drive |
| 3278 |
00P2684/00P2685/ 00P5260/03N5279/ 03N5280/03N6344/ 03N6345/26K5180/ 26K5280/26K5531/ 55P4103/80P3163 |
73.4 GB 15,000 RPM Ultra3 SCSI Disk Drive Assembly |
| 3279 |
03N5284/03N5285/ 03N5766/03N6349/ 03N6350/26K5182/ 26K5282/26K5532/ 26K5567/80P3402/ 80P3911 |
146.8GB 15K 80 Pin U320 SCSI Disk Drive/Carrier |
| 3578 |
03N5270/03N5764/ 03N6335/26K5196/ 26K5296/26K5535/ 26K5565/71P7552/ 80P3157/80P3400/ 93N5270 |
300G 10,000 RPM Ultra320 SCSI Disk Drive Assembly |
| 硬盘背板 | ||
| 6574 |
28D2/03N5997/ 03N5998/32N1023/ 80P4610/80P4611/ 80P4770/32N1203 |
Ultra320 SCSI 4-Pack |
| 6594/292D |
03N5878/05N5062/ 80P5002 |
Ultra320 SCSI 4-Pack for Disk Mirroring |
| RAID卡 | ||
| 5703 |
39J5105/44V3319/ 53P3880/80P2696/ 97P2702/97P3960/ 97P6516/97P6654 |
PCI-X Dual Channel Ultra320 SCSI RAID Adapter |
| 5709 |
39J0148/39J0149/ 44V3312/44V3314/ 97P2823/97P3158/ 97P6308 |
RAID Enabler Card, Cache battery pack 42R5070. |
| 5727 |
39J1308/39J3539/ 39J5653/42R8607/ 44V4411/ |
Dual Channel SCSI RAID Enablement Card |
| 5737 |
571B/39J2012/ 39J3534/39J5024/ 42R4855/42R8739/ 44V5587/97P4152/ 97P4847 |
PCI-X DDR Dual Channel Ultra320 SCSI RAID Adapter, Cache battery pack 39J5555. |
| SCSI卡 | ||
| 5712 |
44V3315/53P0978/ 97P2686/97P2687/ 97P3359/97P6513 |
PCI-X Dual Channel Ultra320 SCSI Adapter |
| 5736 |
39J1643/39J2862/ 39J3536/39J4996/ 39J5022/42R4860/ 42R8736/44V5591/ 42R4362/52P8558 |
PCI-X DDR 2.0 Dual Channel Ultra320 SCSI Adapter |
| 6204 | 03N3266/11K0671 |
PCI Universal Differential Ultra SCSI Adapter |
| 网卡 | ||
| 4962 |
00G2380/00P3056/ 03N6070/09P3196/ 09P5023/44P0321 |
10/100 Mbps Ethernet PCI Adapter II Type A-E |
| 5700 |
00P3055/00P4499/ 03N6981/05N6768/ 09P5386/10N8586/ 11P3847/12R9314/ 15R7536 |
IBM Gigabit Ethernet-SX PCI-X Adapter |
| 5701 |
00G2380/00P3056/ 00P4501/00P6130/ 03N6070/03N6524/ 09P5389/21P4745/ 53P5450/80P4024/ 80P7033 |
IBM 10/100/1000 Base-TX Ethernet PCI-X Adapter |
| 5706 |
00G2380/00P4289/ 00P6131/03N5297/ 03N6070/53P5450/ 80P4024/80P7033 |
IBM 2-Port 10/100/1000 Base-TX Ethernet PCI-X Adapter |
| 5707 |
00P4290/00P6132/ 03N6973/05N6768/ 10N8587/11P3847/ 12R9314/15R7536/ 53P5450/80P4024/ 80P6451/80P7033 |
IBM 2-Port Gigabit Ethernet-SX PCI-X Adapter |
| 5718 |
03N6969/05N6768/ 11P3847/12R9314/ 15R7536/16R0299 |
10 Gigabit Ethernet-SR PCI-X Adapter |
| 5719 |
03N6971/12R6249/ 12R9315/80P4066/ 80P5758 |
IBM 10 Gigabit Ethernet-LR PCI-X Adapter |
| 5721 |
573A/03N4590/ 05N6768/10N8264/ 10N9774/10N9775/ 11P3847/12R9314/ 15R75836/74Y2621/ 80P6636/80P7055 |
10 Gb Ethernet-SR PCI-X 2.0 DDR Adapter |
| 5722 |
576A/03H4588/ 10N8263/10N9776/ 10N9777/12R6249/ 12R9315/80P6634/ 80P7053 |
10 Gb Ethernet-LR PCI-X 2.0 DDR Adapter |
| 5740 | 03N5444 |
4-Port 10/100/1000 Base-TX Ethernet PCI-X Adapter |
| 适配卡 | ||
| 80P3249 | VPD card. | |
| 1820 | 26K7434/26K7452 | PCI-X Dual-port 4x IB HCA |
| 2738 |
28EF/52P8639/ 80P2994/80P6227 |
2-Port USB PCI Adapter |
| 2888 | 39J1099/39J2923 | RIO-2 Adapter |
| 2943 |
07L9001/07L9822/ 11H5967/11H5968/ 11H5969/11H6011/ 42R4761/6298964/ 93H6540/93H6541/ 94H6541 |
8-Port Asynchronous Adapter EIA-232/RS-422, PCI bus |
| 2944 |
43G0926/43G0938/ 93H6544/93H6545/ 93H8917 |
128-Port Asynchronous Controller, PCI bus |
| 2947 |
07L8796/53G0638/ 84H3413/87H3311/ 87H3410/87H3413/ 87H3420/87H3427/ 87H3439/87H3440/ 87H3442/87H3450/ 87H3500/87H3565/ 87H3566/87H3567/ 87H3568/87H3613/ 87H3615/87H3616/ 87H3620/87H3617/ 87H3621/87H3622/ 87H3625/87H3626/ 87H3627/87H3630/ 87H3631/87H3632/ 87H3663/87H3715/ 87H3772 |
IBM ARTIC960Hx 4-Port Multiprotocol PCI Adapter |
| 2962 |
00P5920/33F8985/ 40F9904/41L5233/ 41L4235/41L5795/ 52G3379/73H2508/ 93H3662/93H5261/ 93H5270/93H6068/ 93H6086/00P5920/ 41L5233/41L5235/ 41L5795 |
2-Port Multiprotocol PCI Adapter |
| 4764 |
12R6540/12R6714 /41U0441/41U0442 /41V0161 |
PCI-X Cryptographic Coprocessor (FIPS 4) |
| 4959 |
00P1476/03N3554/ 03N5554/04H7648/ 09P4146/55F4896 |
IBM Token-Ring PCI Adapter |
| 5723 | 64P1243/80P4353 | 2-Port Asynchronous EIA-232 PCI Adapter |
| 6312 |
00P3119/10N7380 /87H3588 |
Quad Digital Trunk Telephony PCI Adapter |
| 8244 |
00P4648/10N7731/ 10N7732/80P2598 |
Audio PCI Adapter for Workstations |
| 显卡 | ||
| 2849 |
00P5756/00P5758/ 03N5853/09P5758 |
POWER GXT135P Graphics Accelerator with Digital Support |
| 光纤卡 | ||
| 5713 |
03N6056/26K6490/ 30R5219/32R1926 /46K7342/49Y4236 |
1 Gigabit iSCSI TOE PCI-X on Copper Media Adapter |
| 5714 | 03N6058/30R5519 |
1 Gigabit iSCSI TOE PCI-X on Optical Media Adapter |
| 5716 |
280B/03N6441/ 03N7069/05N6768/ 10N8622/11P3847/ 12R9314/15R7536/ 80P4543/80P4544 |
2 Gigabit Fibre Channel PCI-X Adapter |
| 5758 |
280D/03N5012/ 03N5014/46K6838 |
4 Gb Single-Port Fibre Channel PCI-X 2.0 DDR Adapter |
| 5759 |
03N5027/03N5029/ 03N6768/10N8620/ 10N3847/12R9314 |
4 Gb Dual-Port Fibre Channel PCI-X 2.0 DDR Adapter |
| 电源 | ||
| 5158 |
39J0544/39J4951/ 44V5095/97P2330 |
AC Power Supply, 850 W |
| 稳压模块 | ||
| 7876 | 44P3193 | 1.2V Processor Power Regulator |
| 电池 | ||
|
04N2496/22R2717/ 42R5070/44L0313 |
Battery for raid card. | |
| 39J5555 |
Cache battery pack for RAID card 571B, 1913, or 5737. |
|
| 光驱 | ||
| 2640 |
00P4774/00P4775/ 03N5907/03N5908/ 39J1365/39J3522/ 39J3529/42R5290/ 42R5291/51P1834/ 97P5623/97P5624 |
4.7GB 8X/24X IDE Slimline DVD-ROM Drive |
| 5751 |
18P8166/39J1364/ 39J3531/39J3804/ 39J3805/39J3808/ 39J3809/39J5769/ 39J5770/97P3692/ 97P3693/97P6883/ 97P6884 |
IBM 4.7 GB IDE Slimline DVD-RAM Drive |
| 磁带机 | ||
| 5755 |
08L9120/08L9870/ 23R3214/23R3247/ 23R3248/24R0305/ 24R0306/24R0395/ 35L2086/96P1773/ 96P1774/96P1775 |
200/400GB Half High Ultrium 2 Tape Drive |
| 6120 |
19P4876/19P4877/ 19P4878/19P4879/ 19P4880/19P4897/ 19P4898/24R1988/ 24R1989/24R2134/ 24R2135/24R2136/ 24R2137/24R2138/ 39J5601/95P1870/ 95P1871/96P1771/ 96P1772/97P3045/ 97P3046 |
80/160 GB Internal Tape Drive with VXA Technology |
| 6134 |
09L5322/09L5323/ 18P6484/19P0692/ 19P0708/35L1044/ 35L1409/59H2677/ 19P0708/52P8637 |
60/150 GB 16-bit 8mm Internal Tape Drive |
| 6258 |
18P7912/18P8777/ 18P8779/21F8763/ 40K2553/59H3465/ 59H4456/59H4457/ 59H4458/71P9163/ 95P1986/95P1988 |
36/72GB 4mm Internal Tape Drive |
| 6279 |
03N7174/19P4876/ 24R2134/24R2135/ 24R2136/24R2137/ 24R2138/95P1974/ 95P1976 |
160GB VXA-320 Tape Drive |
| 磁带 | ||
| 6271 | LTO Ultrium 200GB Data Cartridge | |
| 风扇 | ||
|
39J2473/97P3153/ 97P4349 |
cpu cooler heatsink axial Cooling Fan | |
| 导轨 | ||
| 7160 | IBM Rack-mount Drawer Rail Kit | |
| 7161 | OEM Rack-mount Drawer Rail Kit | |
| 7918 | 39J5328/97P6149 |
IBM Rack-mount Drawer Bezel and Hardware |
| 线缆 | ||
| 1835 |
26R0813/42R6244/ 44V5082/97P6113 |
3 meter 4x Cable |
| 1836 |
21P8318/26R0847/ 26R0848/42R6245/ 44V5083 |
8 meter 4x Cable |
| 1839 |
39J4319/42R6243/ 44V5081 |
1.5 meter 4x Cable |
| 2114 | 40H6603/52G0173 |
PCI SCSI Adapter 16-Bit Differential External Y Cable |
| 2118 |
01K6497/07L9628/ 76H0518 |
Converter Cable VHDCI to P Mini-68 pin to 68 pin 0.3M |
| 2424 | 52G4291 | 0.6M 16-bit SCSI-2 System to System Cable |
| 2425 | 40H2172/52G4233 | 2.5M 16-bit SCSI-2 System-to-System Cable |
| 2456 |
09P3044/11P1352/ 11P1373/12R9321 |
LC-SC 50 Micron Fiber Converter Cable |
| 2459 |
00P4023/11P1374/ 12R9322 |
LC-SC 62.5 Micron Fiber Converter Cable |
| 2709 |
87H3517/87H3518/ 87H3587 |
ARTIC960Hx/RxD 4-Port T1 RJ-45 Cable |
| 2710 |
87H3514/87H3515/ 87H3586 |
ARTIC960Hx/RxD 4-Port E1 RJ-45 Cable |
| 2861 |
07L8817/87H3404/ 87H3405/87H3406/ 87H3439/87H3568 |
ARTIC960Hx 4-Port EIA-232 Cable |
| 2863 |
53G0638/87H3407/ 87H3408/87H3409/ 87H3566 |
ARTIC960Hx 4-Port X.21 Cable |
| 2864 |
87H3398/87H3399/ 87H3400/87H3442/ 87H3565 |
ARTIC960Hx 4-Port V.35 (DTE Cable |
| 2871 |
34f0875/34f0876/ 87h3776/87H3793/ 87H3795 |
ARTIC960RxD Quad DTA, T1, 100 Ohm, 3M 4-Port Cable |
| 2872 | 54F0740/87H3791 |
ARTIC960RxD Quad DTA, T1, 100 Ohm, 15M Extension Cable |
| 2873 |
34f0875/34f0876/ 87h3773/87H3790/ 87H3791 |
IBM ARTIC960RxD Quad DTA, E1, 120 Ohm Balanced, 3M 4-Drop Cable |
| 2874 | 05F2045 |
IBM ARTIC960RxD Quad DTA, E1, 120 Ohm Balanced, 7.5M Extension Cable |
| 2877 | 08L1215/42R4756 |
IBM ARTIC960RxD Quad DTA, H.100, 4-Drop Cable |
| 2934 |
10N6535/12H1204/ 40H0744/40H2206 |
Asynchronous Terminal/Printer Cable EIA-232 |
| 2936 |
30F9453/42R5206/ 53F3205/53F3662/ 6223741/6323741 |
Asynchronous Cable EIA-232/V.24 |
| 2951 |
33F8985/93H2899/ 93H5263 |
Cable V.24 / EIA-232 |
| 2952 |
71F0163/93H2900/ 93H5264 |
Cable V.35 |
| 2953 |
73H2508/93H2901/ 93H5265 |
Cable V.36 / EIA-499 |
| 2954 |
40F9904/93H2902/ 93H5267 |
Cable X.21 |
| 3124 |
10N7158/88G4771/ 88G4853 |
Serial to Serial Port Cable for Drawer/Drawer |
| 3125 |
10N7159/88G4772/ 88G4854 |
Serial to Serial Port Cable for Rack/Rack |
| 3146 |
00P3237/09P2631/ 21P5454/39J2562/ 44V5140 |
RIO-2(Remote I/O-2Cbl 1.2M |
| 3147 |
00P3238/09P2632/ 31P6131/39J2554/ 43L8981/53P2676 |
RIO-2(Remote I/O-2Cbl 3.5M |
| 3148 |
00P3239/09P2633/ 21P5456/39J2561/ 43L8982 |
RIO-2 (Remote I/O-2) Cable, 10M |
| 3156 | 00P5238/03N5867 | RIO-2 (Remote I/O-2 Cable 1.75M) |
| 3168 | 00P5239/03N5866 | RIO-2 (Remote I/O-2 Cbl 2.5M |
| 3652 | 42R6762/44V4147 | SAS Cable (EE Drawer to Drawer 1M |
| 3653 | 42R6727/44V4148 | SAS Cable (EE) Drawer to Drawer 3M |
| 3654 | 42R6728/44V4149 | SAS Cable (EE) Drawer to Drawer 6M |
| 3661 | 42R6742/44V4154 |
SAS Cable (X Adapter to SAS Enclosure Dual Controller/ Dual Path 3M |
| 3662 | 42R6743/44V4155 |
SAS Cable (X) Adapter to SAS Enclosure, Dual Controller/ Dual Path 6M |
| 3663 | 42R6744/44V4156 |
SAS Cable (X) Adapter to SAS Enclosure, Dual Controller/ Dual Path 15M |
| 3684 | 42R8118/44V4163 |
SAS Cable (AE Adapter to Enclosure single controller/ single path 3M |
| 3685 | 42R8120/44V4164 |
SAS Cable (AE) Adapter to Enclosure, single controller/ single path 6M |
| 3691 | 42R6788/44V4157 |
SAS Cable (YO Adapter to SAS Enclosure Single Controller/Dual Path 1.5 M |
| 3692 | 42R6789/44V4158 |
SAS Cable (YO) Adapter to SAS Enclosure, Single Controller/Dual Path 3 M |
| 3693 | 42R6790/44V4159 |
SAS Cable (YO) Adapter to SAS Enclosure, Single Controller/Dual Path 6 M |
| 3694 | 42R6791/44V4160 |
SAS Cable (YO) Adapter to SAS Enclosure, Single Controller/Dual Path 15 M |
| 3925 |
00P2165/23R4632/ 40H6328/40H6329 |
Serial Port Converter Cable 9-Pin to 25-Pin |
| 3926 | 00P2166 |
Asynch Printer/Terminal Cable 9-pin to 25-pin 4M |
| 3927 | 10N7712 |
Serial Port Null Modem Cable 9-pin to 9-pin 3.7M |
| 3928 | 10N7713 |
Serial Port Null Modem Cable 9-pin to 9-pin 10M |
| 4242 |
07L9633/08L0491/ 42R4755 |
6 Foot Extender Cable for Displays (15 pin D-shell to 15 pin D-shell |
| 4256 |
00P2969/10N7374/ 32N1311/44P1375 |
Extender Cable - USB Keyboards 2M |
| 4263 |
00P6267/39J2634/ 39J4140/42R4119/ 53P4486/97P2548/ 97P5103/97O5354 |
SCSI Cables (Power and Logic) PCI Riser to SCSI LVD Media Device; Mounting Tray |
| 4267 |
39J0444/42R4052/ 53P4485/64P1258 |
SCSI Cable PCI Adapter to Hot-Swap Disks |
| 4270 | External SCSI Port Enablement Cable | |
| 4275 | 64P1271 | External SCSI Port Enablement Cable |
| 4278 |
39J2634/39J4140/ 42R4119/53P4486/ 97P2548/97P5103/ 97P5354 |
SCSI Cables (Power and Logic PCI Riser to SCSI LVD Media Device; Mounting Tray |
| 4353 | 03N3493 | H-100 Bus 8-position Cable |
| 4691 | 53P2237 |
Rack Status Beacon Cable Junction Bo x To Drawer Or Status Beacon |
| 4692 | 53P2854 |
Rack Status Beacon Cable Junction Box Daisy Chain |
| 6001 | 00G1277/42F6839 | Power Control Cable (SPCN-2 meter) |
| 6006 |
09P1251/22R5239/ 93H8045 |
Power Control Cable (SPCN-3 meter) |
| 6007 |
21F9358/22R5221/ 55F4533 |
Power Control Cable (SPCN 15 meter) |
| 6008 |
21F9469/22R5219/ 55F4532/74F0188 |
Power Control Cable (SPCN 6 meter) |
| 6029 | 21F9359/22R5222 | Power Control Cable (SPCN 30 meter) |
| 6458 |
Power Cable- Drawer to IBM PDU 14-foot 250V/10A |
|
| 6460 |
Power Cord (14-foot Drawer To OEM PDU (125V 15A Plug Type #4 |
|
| 6469 |
Power Cord (14-foot Drawer to OEM PDU (250V 15A United States Plug Type #5 |
|
| 6470 | Power Cord (6-foot To Wall (125V 15A Plug Type #4 | |
| 6471 |
Power Cord (9-foot To Wall/OEM PDU (125V 15A Plug Type #70 |
|
| 6472 |
Power Cord (9-foot To Wall/OEM PDU (250V 16A Plug Type #18 |
|
| 6473 |
Power Cord (9-foot To Wall/OEM PDU (250V 10A Plug Type 19 |
|
| 6474 |
Power Cord (9-foot) To Wall/OEM PDU (250V 13A) Plug Type #23 |
|
| 6475 |
Power Cord (9-foot) To Wall/OEM PDU (250V 16A) Plug Type #32 |
|
| 6476 |
Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #24 |
|
| 6477 |
Power Cord (9-foot) To Wall/OEM PDU (250V 16A) Plug Type #22 |
|
| 6478 |
Power Cord (9-foot) To Wall/OEM PDU (250V 16A) Plug Type #25 |
|
| 6487 |
Power Cord (6-foot To Wall (250V 15A United States Plug Type #5 |
|
| 6488 |
Power Cord (9-foot To Wall/OEM PDU (125V 15A or 250V 10A Plug Type #2 |
|
| 6493 |
Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #62 |
|
| 6494 |
Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #69 |
|
| 6495 |
Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #73 |
|
| 6496 |
Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #66 |
|
| 6651 |
Power Cord (9-foot To Wall/OEM PDU (125V 15A Plug Type #75 |
|
| 6659 |
Power Cord (9-foot To Wall/OEM PDU (250V 15A Plug Type #76 |
|
| 6660 |
Power Cord (14-foot Drawer To OEM PDU (125V 15A Plug Type #59 (DENAN marking |
|
| 6665 |
Power Cord 3 M (10 ft Drawer to IBM PDU 250V/10A |
|
| 6669 |
Power Cord (14-foot Drawer to OEM PDU (250V 15A Plug Type #57 (DENAN marking |
|
| 6670 |
Power Cord (6-foot To Wall (125V 15A Plug Type #59 (DENAN marking |
|
| 6671 |
Power Cord (9-foot) Drawer to IBM PDU 250V/10A |
|
| 6672 |
Power Cord (5-foot) Drawer to IBM PDU 250V/10A |
|
| 6680 |
Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #6 Insulated |
|
| 6687 |
Power Cord (6-foot) To Wall (250V 15A) Plug Type #57 (DENAN marking) |
|
| 7801 |
16R0449/41V0479/ 52P7524 |
Ethernet Cable 6M Hardware Management Console to System Unit |
| 7802 |
05N5292/41V0143/ 52P7525 |
Ethernet Cable 15M Hardware Management Console to System Unit |
| 8131 | 43G0937/51G8608 |
128-Port Asynchronous Controller Cable 4.5 Meter |
| 8132 |
43F0936/43F0937/ 43G0936 |
128-Port Asynchronous Controller Cable 23cm (9-Inch |
| 8133 | 43G0935/51G8610 | RJ-45 to DB-25 Converter Cable |
| 其它 | ||
| 24P6892 | 1.8V Processor Power Regulator | |
| 97P2642 | 2.5V Processor Power Regulator | |
| 265 | AIX Partition Specify | |
| 2591 |
03N4962/33P3339 52P8634 |
Ext 1.44GB Diskette Drive |
| 2800000 | 39J3273/97P4935 | LCD display. |
| 3752 | 09P3035 | Service Package |
| 5001 | Customer Solution Center | |
| 5005 | software preinstall | |
| 5886 | EXP 12S Expansion Drawer | |
| 6585 | DASD Locking Kit | |
| 6587 | Acoustic Option -- Rear Muffler | |
| 7184 | IBM Deskside Cover Set | |
| 7185 | IBM Acoustic Deskside Cover Set | |
| 7193 | OEM Acoustic Deskside Cover Set | |
| 7305 | SDI Software Pre-Install Indicator | |
| 7600 | processor entitlement | |
| 7877/28D1 | Media Backplane | |
| 7916 | OEM Deskside Cover Set | |
| 7940 | Adv Power Virtualization | |
| 8136 |
09P4095/09P4096/ 40H2588/40H2589 |
Rack Mountable Remote Asynchronous Node 16-Port EIA-232 |
| 8227 | Tie-down Strap Security Device | |
| 9461 | Month Indicator | |
| 9462 | Day Indicator | |
| 9463 | Hour Indicator | |
| 9464 | Minute Indicator | |
| 9465 | Qty Indicator | |
| 9466 | Countable Member Indicator | |
