| 整机信息 | |

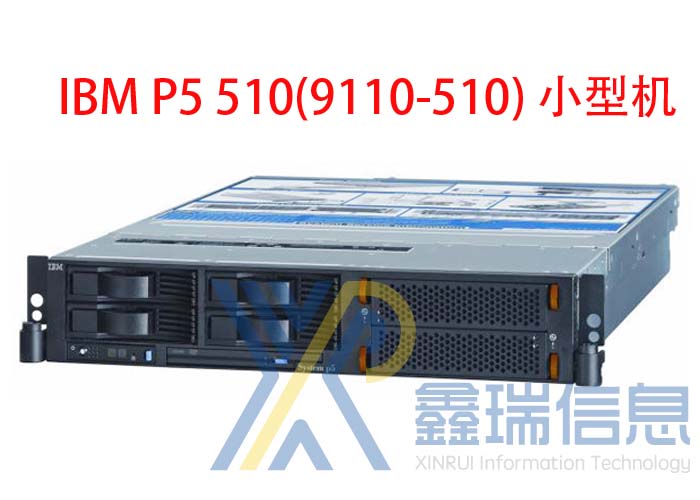

| 名称 | IBM System p5 510 |
| 型号 | 9110-510 |
| 品牌 | IBM |
| 类型 | 小型机 |
| CPU信息 |
1 路或 2 路1.65 GHz (或 1.5GHz 可选) POWER5 处理器， 1.9 MB L2和 36 MB L3 高速缓存 ，CPU 集成在主板上，如果需要升级， CPU 需要随着主板一起更换。 |
| CPU类型 | POWER5 |
|
CPU插槽 数 |
1 |
| CPU激活 | 需要激活码 |
| 机架类型 | 机架式 |
| 机架空间 | 4U |
| 硬盘信息 | 最大硬盘背板数量为 1 |
|
最大硬盘 数量 |
4 |
| 内存提示 |
插槽位在主板上， 可用 266 MHz DDR1 的内存。 |
|
支持内存 容量范围 |
512MB-32G |
|
内存插槽 数量 |
8 |
|
内存是否 需要激活 |
不需要激活 |
| 电源描述 | 100v 到 127v 或 200v 到 240v 交流。 |
|
单机电源 数量 |
2 |
| 介质托架 |
用于 DVD-ROM 或 DVD-RAM 驱动器的细线电缆支架。 |
|
适配器插 槽 |
3 个热插拔 3.3v PCI-X （3 个 64 位 133MHz）。 |
| 端口 |
2 个以太网 10/100/1000 Mbps 端口、 1 个外置 SCSI 端口 、2 个串口、 2 个 USB端口、 2 个 HMC 端口、 键盘和鼠标。 |
| IO适配器 |
双通道 Ultra320 SCSI 控制器 （内置和外置端口； 可选的 RAID 子卡）。 |
| IO扩展 | IBM 2104 Expandable Storage Plus。 |
| 发布日期 | 2005/2/18 |
| 下架日期 | 2006/11/13 |
|
服务截止 期 |
|
| 操作系统 |
AIX 5L V5.2/5.3, SUSE LINUX Enterprise Server 9 或者 POWER™ （SLES 9）或更高版本，Red Hat Enterprise LinuX AS 3 f 或者 POWER Update 4（RHEL AS 3） 或更高版本。 |
| 产品尺寸 |
机架扩展笼：高 3.5" x 宽 71.2" x 长 27.0" （89mm x 437mm x 686mm）。 |
| 产品重量 | 重 16.8 千克 （37 磅）。 |
| 配件信息 | ||
| FC号 | PN号 | 描述 |
| CPU | ||
| 7609/261D |
03N4861/03N6254/ 10N7324/80P6160/ 80P7190 |
1-way 1.5GHz POWER5 Processor Card, No L3 Cache |
| 7610/261E |
03N4851/03N6242/ 10N7313//80P6140 /80P7167 |
1-way 1.65GHz POWER5 Processor Card, 36MB L3 Cache |
| 7611/261F |
03N4831/03N6217/ 10N7292/80P6120/ 80P7145 |
2-way 1.65GHz POWER5 Processor Card, 36MB L3 Cache |
| 7612/262A |
03N4429/03N4430/ 03N6268/10N7335 |
2-way 1.5GHz POWER5 Processor Card, 36MB L3 Cache |
| 内存 | ||
| 4443 | 12R9283/53P3222 |
512MB (2x256MB) DIMMs,208-pin, 250MHz DDR1 SDRAM |
| 4444 | 12R9283/53P3222 |
1GB (4x256MB) DDR1 DIMMs 208-pin, 266MHz SDRAM |
| 4445 | 00P5769/12R8614 |
4GB (4x1GB) DDR1 DIMMs 208-pin, 266MHz SDRAM |
| 4447 | 00P5767/12R9238 |
2GB (4x512MB) DIMMS 208-pin, 266MHz DDR SDRAM |
| 4449 | 00P5773/12R9257 |
8GB (4x2GB) DIMMS 208-pin, 266MHz DDR SDRAM |
| 4450 | 12R9276/16R0711 |
16GB (4x4GB) DIMMs, 208-pin, 266MHz DDR Stacked SDRAM |
| 硬盘 | ||
| 3274 |
00P2672/00P3072/ 00P3811/00P3833/ 03N5260/03N6325/ 08K0283/26K5191/ 26K5291/26K5533 |
73.4GB 10K RPM U320 LVD 80-pin SCSI Disk Drive/Carrier ST373307LC |
| 3275 |
00P2664/00P2665/ 00P3834/00P3835/ 03N5264/03N5265/ 03N6330/08K0273/ 26K5194/26K5294/ 26K5534 |
146.8GB 10K 80 Pin RPM U320 SCSI Disk Drive/Carrier ST3146807LC |
| 3277 |
00P2692/00P2693/ 03N5275/03N6339/ 03N6340/07N6771/ 09P3631/26K5178/ 26K5278/26K5530/ 80P3159 |
36.4GB 15K 80 Pin U320 SCSI Disk Drive |
| 3278 |
00P2684/00P2685/ 00P5260/03N5279/ 03N5280/03N6344/ 03N6345/26K5180/ 26K5280/26K5531/ 55P4103/80P3163 |
73.4 GB 15,000 RPM Ultra3 SCSI Disk Drive Assembly |
| 3279 |
03N5284/03N5285/ 03N5766/03N6349/ 03N6350/26K5182/ 26K5282/26K5532/ 26K5567/80P3402/ 80P3911 |
146.8GB 15K 80 Pin U320 SCSI Disk Drive/Carrier |
| 3578 |
03N5270/03N5764/ 03N6335/26K5196/ 26K5296/26K5535/ 26K5565/71P7552/ 80P3157/80P3400/ 93N5270 |
300G 10,000 RPM Ultra320 SCSI Disk Drive Assembly |
| RAID卡 | ||
| 5703 |
39J5105/44V3319/ 53P3880/80P2696/ 97P2702/97P3960/ 97P6516/97P6654 |
PCI-X Dual Channel Ultra320 SCSI RAID Adapter |
| 5737 |
571B/39J2012/ 39J3534/39J5024/ 42R4855/42R8739/ 44V5587/97P4152/ 97P4847 |
PCI-X DDR Dual Channel Ultra320 SCSI RAID Adapter, Cache battery pack 39J5555. |
| SCSI卡 | ||
| 5712 |
44V3315/53P0978/ 97P2686/97P2687/ 97P3359/97P6513 |
PCI-X Dual Channel Ultra320 SCSI Adapter |
| 5736 |
39J1643/39J2862/ 39J3536/39J4996/ 39J5022/42R4860/ 42R8736/44V5591/ 42R4362/52P8558 |
PCI-X DDR 2.0 Dual Channel Ultra320 SCSI Adapter |
| 网卡 | ||
| 4962 |
00G2380/00P3056/ 03N6070/09P3196 /09P5023/44P0321 |
10/100 Mbps Ethernet PCI Adapter II Type A-E |
| 5700 |
00P3055/00P4499/ 03N6981/05N6768/ 09P5386/10N8586/ 11P3847/12R9314/ 15R7536 |
IBM Gigabit Ethernet-SX PCI-X Adapter |
| 5701 |
00G2380/00P3056/ 00P4501/00P6130/ 03N6070/03N6524/ 09P5389/21P4745/ 53P5450/80P4024/ 80P7033 |
IBM 10/100/1000 Base-TX Ethernet PCI-X Adapter |
| 5706 |
00G2380/00P4289/ 00P6131/03N5297/ 03N6070/53P5450/ 80P4024/80P7033 |
IBM 2-Port 10/100/1000 Base-TX Ethernet PCI-X Adapter |
| 5707 |
00P4290/00P6132/ 03N6973/05N6768/ 10N8587/11P3847/ 12R9314/15R7536/ 53P5450/80P4024/ 80P6451/80P7033 |
IBM 2-Port Gigabit Ethernet-SX PCI-X Adapter |
| 5718 |
03N6969/05N6768/ 11P3847/12R9314/ 15R7536/16R0299 |
10 Gigabit Ethernet-SR PCI-X Adapter |
| 5719 |
03N6971/12R6249/ 12R9315/80P4066/ 80P5758 |
IBM 10 Gigabit Ethernet-LR PCI-X Adapter |
| 5721 |
573A/03N4590/ 05N6768/10N8264/ 10N9774/10N9775/ 11P3847/12R9314/ 15R75836/74Y2621/ 80P6636/80P7055 |
10 Gb Ethernet-SR PCI-X 2.0 DDR Adapter |
| 5722 |
576A/03H4588/ 10N8263/10N9776/ 10N9777/12R6249/ 12R9315/80P6634/ 80P7053 |
10 Gb Ethernet-LR PCI-X 2.0 DDR Adapter |
| 5740 | 03N5444 |
4-Port 10/100/1000 Base-TX Ethernet PCI-X Adapter |
| 适配卡 | ||
| 1820 | 26K7434/26K7452 | PCI-X Dual-port 4x IB HCA |
| 2738 |
28EF/52P8639/ 80P2994/80P6227 |
2-Port USB PCI Adapter |
| 2943 |
07L9001/07L9822/ 11H5967/11H5968/ 11H5969/11H6011/ 42R4761/6298964/ 93H6540/93H6541/ 94H6541 |
8-Port Asynchronous Adapter EIA-232/RS-422, PCI bus |
| 2944 |
43G0926/43G0938/ 93H6544/93H6545/ 93H8917 |
128-Port Asynchronous Controller, PCI bus |
| 2947 |
07L8796/53G0638/ 84H3413/87H3311/ 87H3410/87H3413/ 87H3420/87H3427/ 87H3439/87H3440/ 87H3442/87H3450/ 87H3500/87H3565/ 87H3566/87H3567/ 87H3568/87H3613/ 87H3615/87H3616/ 87H3620/87H3617/ 87H3621/87H3622/ 87H3625/87H3626/ 87H3627/87H3630/ 87H3631/87H3632/ 87H3663/87H3715/ 87H3772 |
IBM ARTIC960Hx 4-Port Multiprotocol PCI Adapter |
| 2962 |
00P5920/33F8985/ 40F9904/41L5233/ 41L4235/41L5795/ 52G3379/73H2508/ 93H3662/93H5261/ 93H5270/93H6068/ 93H6086/00P5920/ 41L5233/41L5235/ 41L5795 |
2-Port Multiprotocol PCI Adapter |
| 4764 |
12R6540/12R6714/ 41U0441/41U0442/ 41V0161 |
PCI-X Cryptographic Coprocessor (FIPS 4) |
| 5723 | 64P1243/80P4353 | 2-Port Asynchronous EIA-232 PCI Adapter |
| 显卡 | ||
| 2849 |
00P5756/00P5758/ 03N5853/09P5758 |
POWER GXT135P Graphics Accelerator with Digital Support |
| 光纤卡 | ||
| 5713 |
03N6056/26K6490/ 30R5219/32R1926/ 46K7342/49Y4236 |
1 Gigabit iSCSI TOE PCI-X on Copper Media Adapter |
| 5714 | 03N6058/30R5519 |
1 Gigabit iSCSI TOE PCI-X on Optical Media Adapter |
| 5716 |
280B/03N6441/ 03N7069/05N6768/ 10N8622/11P3847/ 12R9314/15R7536/ 80P4543/80P4544 |
2 Gigabit Fibre Channel PCI-X Adapter |
| 5758 |
280D/03N5012/ 03N5014/46K6838 |
4 Gb Single-Port Fibre Channel PCI-X 2.0 DDR Adapter |
| 5759 |
03N5027/03N5029/ 03N6768/10N8620/ 10N3847/12R9314 |
4 Gb Dual-Port Fibre Channel PCI-X 2.0 DDR Adapter |
| 电源 | ||
| 7989 |
03N4489/03N4490/ 03N4491/03N4492/ 03N4493/03N4494/ 03N4496/03N4497/ 03N4498/03N4499/ 03N4500/03N4501/ 03N4502/03N4503/ 03N4504/03N4505/ 03N4628/03N4629/ 03N4630/03N4631/ 03N4632/03N4633/ 03N4634/03N4635/ 03N4636/03N4637/ 39J4710/97P5834 |
Power Supply, 700 Watt AC, Hot-swap, Base or Redundant |
| 电池 | ||
|
04N2496/22R2717/ 42R5070/44L0313 |
Battery for raid card. | |
| 39J5555 |
Cache battery pack for RAID card 571B, 1913, or 5737. |
|
| 光驱 | ||
| 2640 |
00P4774/00P4775/ 03N5907/03N5908/ 39J1365/39J3522/ 39J3529/42R5290/ 42R5291/51P1834/ 97P5623/97P5624 |
4.7GB 8X/24X IDE Slimline DVD-ROM Drive |
| 5751 |
18P8166/39J1364/ 39J3531/39J3804/ 39J3805/39J3808/ 39J3809/39J5769/ 39J5770/97P3692/ 97P3693/97P6883/ 97P6884 |
IBM 4.7 GB IDE Slimline DVD-RAM Drive |
| 磁带机 | ||
| 1955 | 23R2618/23R2619 | 36/72 GB 4mm Internal Tape Drive |
| 导轨 | ||
| 7166 | 42R3866/52P8414 | IBM/OEM Rack-mount Drawer Rail Kit |
| 7998 | 52P8411 | IBM Rack-mount Drawer Bezel and Hardware |
| 线缆 | ||
| 1835 |
26R0813/42R6244/ 44V5082/97P6113 |
3 meter 4x Cable |
| 1836 |
21P8318/26R0847/ 26R0848/42R6245/ 44V5083 |
8 meter 4x Cable |
| 1839 |
39J4319/42R6243/ 44V5081 |
1.5 meter 4x Cable |
| 2114 | 40H6603/52G0173 |
PCI SCSI Adapter 16-Bit Differential External Y Cable |
| 2118 |
01K6497/07L9628/ 76H0518 |
Converter Cable VHDCI to P Mini-68 pin to 68 pin 0.3M |
| 2425 | 40H2172/52G4233 | 2.5M 16-bit SCSI-2 System-to-System Cable |
| 2456 |
09P3044/11P1352/ 11P1373/12R9321 |
LC-SC 50 Micron Fiber Converter Cable |
| 2459 |
00P4023/11P1374/ 12R9322 |
LC-SC 62.5 Micron Fiber Converter Cable |
| 2861 |
07L8817/87H3404/ 7H3405/87H3406/ 87H3439/87H3568 |
ARTIC960Hx 4-Port EIA-232 Cable |
| 2863 |
53G0638/87H3407/ 87H3408/87H3409/ 87H3566 |
ARTIC960Hx 4-Port X.21 Cable |
| 2864 |
87H3398/87H3399/ 87H3400/87H3442/ 87H3565 |
ARTIC960Hx 4-Port V.35 (DTE Cable |
| 2934 |
10N6535/12H1204/ 40H0744/40H2206 |
Asynchronous Terminal/Printer Cable EIA-232 |
| 2936 |
30F9453/42R5206/ 53F3205/53F3662/ 6223741/6323741 |
Asynchronous Cable EIA-232/V.24 |
| 2951 |
33F8985/93H2899/ 93H5263 |
Cable V.24 / EIA-232 |
| 2952 |
71F0163/93H2900/ 93H5264 |
Cable V.35 |
| 2953 |
73H2508/93H2901/ 93H5265 |
Cable V.36 / EIA-499 |
| 2954 |
40F9904/93H2902/ 93H5267 |
Cable X.21 |
| 3124 |
10N7158/88G4771/ 88G4853 |
Serial to Serial Port Cable for Drawer/Drawer |
| 3125 |
10N7159/88G4772/ 88G4854 |
Serial to Serial Port Cable for Rack/Rack |
| 3925 |
00P2165/23R4632/ 40H6328/40H6329 |
Serial Port Converter Cable 9-Pin to 25-Pin |
| 3926 | 00P2166 |
Asynch Printer/Terminal Cable 9-pin to 25-pin 4M |
| 3927 | 10N7712 |
Serial Port Null Modem Cable 9-pin to 9-pin 3.7M |
| 3928 | 10N7713 |
Serial Port Null Modem Cable 9-pin to 9-pin 10M |
| 4242 |
07L9633/08L0491/ 42R4755 |
6 Foot Extender Cable for Displays (15 pin D-shell to 15 pin D-shell |
| 4256 |
00P2969/10N7374/ 32N1311/44P1375 |
Extender Cable - USB Keyboards 2M |
| 4691 | 53P2237 |
Rack Status Beacon Cable Junction Box To Drawer Or Status Beacon |
| 4692 | 53P2854 |
Rack Status Beacon Cable Junction Box Daisy Chain |
| 5989 | 49Y0488/49Y0499 |
3m IBM Optical for the Mellanox ConnectX-2 QDR Adapter. |
| 6458 |
Power Cable- Drawer to IBM PDU 14-foot 250V/10A |
|
| 6460 |
Power Cord (14-foot Drawer To OEM PDU (125V 15A Plug Type #4 |
|
| 6469 |
Power Cord (14-foot Drawer to OEM PDU (250V 15A United States Plug Type #5 |
|
| 6470 |
Power Cord (6-foot To Wall (125V 15A Plug Type #4 |
|
| 6471 |
Power Cord (9-foot To Wall/OEM PDU (125V 15A Plug Type #70 |
|
| 6472 |
Power Cord (9-foot To Wall/OEM PDU (250V 16A Plug Type #18 |
|
| 6473 |
Power Cord (9-foot To Wall/OEM PDU (250V 10A Plug Type 19 |
|
| 6474 |
Power Cord (9-foot) To Wall/OEM PDU (250V 13A) Plug Type #23 |
|
| 6475 |
Power Cord (9-foot) To Wall/OEM PDU (250V 16A) Plug Type #32 |
|
| 6476 |
Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #24 |
|
| 6477 |
Power Cord (9-foot) To Wall/OEM PDU (250V 16A) Plug Type #22 |
|
| 6478 |
Power Cord (9-foot) To Wall/OEM PDU (250V 16A) Plug Type #25 |
|
| 6479 |
Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #6 |
|
| 6487 |
Power Cord (6-foot To Wall (250V 15A United States Plug Type #5 |
|
| 6494 |
Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #69 |
|
| 6495 |
Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #73 |
|
| 6496 |
Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #66 |
|
| 6651 |
Power Cord (9-foot To Wall/OEM PDU (125V 15A Plug Type #75 |
|
| 6659 |
Power Cord (9-foot To Wall/OEM PDU (250V 15A Plug Type #76 |
|
| 6660 |
Power Cord (14-foot Drawer To OEM PDU (125V 15A Plug Type #59 (DENAN marking |
|
| 6669 |
Power Cord (14-foot Drawer to OEM PDU (250V 15A Plug Type #57 (DENAN marking |
|
| 6670 |
Power Cord (6-foot To Wall (125V 15A Plug Type #59 (DENAN marking |
|
| 6671 | Power Cord (9-foot) Drawer to IBM PDU 250V/10A | |
| 6672 | Power Cord (5-foot) Drawer to IBM PDU 250V/10A | |
| 6680 |
Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #6 Insulated |
|
| 6687 |
Power Cord (6-foot) To Wall (250V 15A) Plug Type #57 (DENAN marking) |
|
| 7801 |
16R0449/41V0479/ 52P7524 |
Ethernet Cable 6M Hardware Management Console to System Unit |
| 7802 |
05N5292/41V0143/ 52P7525 |
Ethernet Cable 15M Hardware Management Console to System Unit |
| 8131 | 43G0937/51G8608 | 128-Port Asynchronous Controller Cable 4.5 Meter |
| 8132 |
43F0936/43F0937/ 43G0936 |
128-Port Asynchronous Controller Cable 23cm (9-Inch |
| 8133 | 43G0935/51G8610 | RJ-45 to DB-25 Converter Cable |
| 其它 | ||
| 03N6786 | Operator panel | |
| 265 | AIX Partition Specify | |
| 2591 |
03N4962/33P3339/ 52P8634 |
Ext 1.44GB Diskette Drive |
| 292F | 42R5760/97P6777 |
Control panel and removable media tray assembly |
| 3636 |
31P9263/31P9264/ 31P9265/31P9266 |
L200P Flat Panel Monitor |
| 3637 |
04N7526/04N7527/ 04N7532/13F9959/ 31P7507/31P7509/ 31P7511/31P7513/ 31P7515 |
IBM T541H /L150p 15" TFT Color Monitor |
| 3638 |
22P4543/73P2310/ 73P2311/73P2313/ 73P2316 |
C220P 21" Color Monitor |
| 3639 |
13F9959/31P9575/ 31P9577/31P9584/ 31P9587/31P9590/ 73P0261 |
L180P TFT 17" Color Display |
| 3640 | L171P TFT 17" Black Display | |
| 3641 |
40K7317/40K5341/ 73P4360 |
T115 TFT 15" Color Display |
| 3642 | ThinkVision L191p Flat Panel Monitor | |
| 3644 | IBM T119 Flat Panel Monitor | |
| 3645 | 39Y9919/40k5342 | IBM T117 Flat Panel Monitor |
| 3752 | 09P3035 | Service Package |
| 5001 | Customer Solution Center | |
| 5005 | software preinstall | |
| 5959 | Full Width Quiet Touch Keyboard -- USB, Hungarian, #208 | |
| 5983 | USB Keybd-US English Euro | |
| 6B15 | 03N5849/80P7060 | PCI adapter and riser enclosure |
| 7305 | SDI Software Pre-Install Indicator | |
| 7432 | Advanced POWER Virtualization | |
| 7877/28D1 |
03N5895/03N5897/ 03N6004/03N6005/ 39J2521/39J2523/ 80P3510/80P4013/ 80P4137/80P4138 /80P4179/97P3815 |
Media Backplane |
| 8136 |
09P4095/09P4096/ 40H2588/40H2589 |
Rack Mountable Remote Asynchronous Node 16-Port EIA-232 |
| 9004 | Southern Hemisphere Designator for Monitors | |
| 9300 | Language Group Specify - US English | |
