| 整机信息 | |

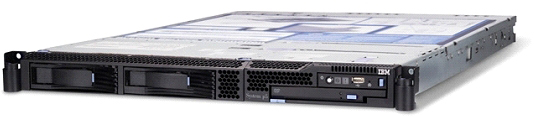

| 名称 | IBM System p5 505 |
| 型号 | 9115-505 |
| 品牌 | IBM |
| 类型 | 小型机 |
| CPU信息 |
1 路或 2 路 64 位 1.9 GHz 的 POWER5+ 处理器内核， 或 2 路 64 位 2.1 GHz POWER5+ 处理器内核，每个处理器 1 MB L2 高速缓存。1.9 MB L2和36 MB 三级高速缓存。 |
| CPU类型 | POWER5+ |
| CPU插槽数 | 1 |
| CPU激活 | 需要激活码 |
| 机架类型 | 机架式 |
| 机架空间 | 1U |
| 硬盘信息 | 最大硬盘背板数量为 1 |
|
最大硬盘 数量 |
2 |
| 内存提示 |
533 MHz 的 DDR-2 DIMM 内存，位于主板上。 |
|
支持内存 容量范围 |
1GB-32GB |
|
内存插槽 数量 |
8 |
|
内存是否 需要激活 |
不需要激活 |
| 电源描述 | 100v 到 127v，或者 200v 到 240v 交流。 |
|
单机电源 数量 |
2 |
| 介质托架 | 1 个超薄光学器件。 |
| 适配器插槽 |
2 个 PCI-X 2.0 适配器插槽 （为 266MHz（DDR）），1 长1 短。 |
| 端口 |
双端口以太网 10/100/1000 Mbps 控制器，可选的 4 Gb光纤通道 和 10 千兆位以太网适配器， 2 个 USB 端口，2 个 HMC 端口， 2 个串口。 |
| IO适配器 |
双通道 Ultra320 SCSI 控制器的 外部 SCSI 端口。 |
| IO扩展 | |
| 发布日期 | 2005/10/14 |
| 下架日期 | 2009/5/29 |
|
服务截止 期 |
|
| 操作系统 |
AIX 5L Edition: AIX 5L Version 5.2 或者更高版本， OpenPower Edition: SUSE LINUX Enterprise Server 9 f 或者 POWER (SLES 9) 或者更高版本，Red Hat Enterprise LinuX AS 4 f 或者 POWER (RHEL AS 4) 或者更高版本。 |
| 产品尺寸 | 1.7"高 x 17.3"宽 x 28.0"长。 |
| 产品重量 | 37.4 磅。 |
| 配件信息 | ||
| FC号 | PN号 | 描述 |
| CPU | ||
| 7650/254A |
03N6553/03N6733/ 03N6759/03N7073/ 10N6679/10N7083 |
1-way 1.65GHz POWER5 Processor Card, No L3 Cache |
| 7652/254C |
03N6553/03N7073/ 10N6679/03N7082/ 10N7091 |
2-way 1.65GHz POWER5 Processor Card, 36MB L3 Cache |
| 7674/254D |
03N6562/03N7090/ 10N7091/10N6696/ 10N6697/10N7098/ 10N7099 |
2-way 1.5GHz POWER5 Processor Card, 36MB L3 Cache |
| 7679/252C |
10N6772/10N8220/ 32N1333 |
2-core 1.9GHz POWER5+ Processor Card, 36MB L3 Cache |
| 8288/834C | 10N6790 |
4-core 1.65GHz POWER5+ Processor Card, 2 x 36MB L3 Cache |
| 8289/834A | 10N6762/03N1326 |
1-core 1.9GHz POWER5+ Processor Card, No L3 Cache |
| 8290/834B |
10N6781/10N8227/ 32N1339 |
2-core 2.1 GHz POWER5+ Processor Card, 36MB L3 Cache |
| 内存 | ||
| 1930 | 12R8251/15R7166 |
1GB (2x512MB) DIMMs, 276-PIN, 533MHz DDR2 SDRAM |
| 1931 | 12R8255/15R7168 |
2GB (2x1GB) DIMMs, 276-PIN, 533MHz DDR2 SDRAM |
| 1932 | 12R8239/15R7170 |
4GB (2x2GB) DIMMs, 276-PIN, 533MHz DDR2 SDRAM |
| 1934 | 12R8247/15R7172 |
8GB (2x4GB) DIMMs, 276-PIN, 533MHz DDR2 SDRAM |
| 8230 |
Memory Offering -- 16GB (Multiples of 4 of 2x2GB DIMMs) |
|
| 8231 |
Memory Offering -- 32GB/64GB/96GB/128GB (Multiples of 4 of 2x4GB DIMMs) |
|
| 硬盘 | ||
| 1968 |
03N5261/03N5262/ 03N6327/17R6169/ 26K5161/26K5250/ 26K5573/52P8626/ 80P3406/80P6320 |
73.4 GB 10,000 RPM Ultra320 SCSI Disk Drive Assembly |
| 1969 |
03N5267/03N6332/ 26K5162/26K5259/ 26K5574/52P8627/ 80P3408/80P6321 |
146.8 GB 10,000 RPM Ultra320 SCSI Disk Drive Assembly |
| 1970 |
03N5277/03N6341/ 03N6342/24P3749/ 26K5164/26K5254/ 26K5570/52P8628/ 80P6324/80P6422 |
36.4 GB 15,000 RPM Ultra320 SCSI Disk Drive Assembly |
| 1971 |
03N5281/03N5282/ 03N6346/03N6347/ 24P3750/26K5165/ 26K5255/26K5571/ 52P8629/80P6325/ 80P6424 |
73.4 GB 15,000 RPM Ultra320 SCSI Disk Drive Assembly |
| 1972 |
03N5288/03N6351/ 03N6352/26K5166/ 26K5256/26K5572/ 80P3412/80P6426 |
146.8 GB 15,000 RPM Ultra320 SCSI Disk Drive Assembly |
| 1973 |
03N5272/03N6337/ 03N6357/26K5163/ 26K5284/26K5575/ 80P3410/80P6322 |
300 GB 10,000 RPM Ultra320 SCSI Disk Drive Assembly |
| 3274 |
00P2672/00P3072 /00P3811/00P3833/ 03N5260/03N6325/ 08K0283/26K5191/ 26K5291/26K5533 |
73.4GB 10K RPM U320 LVD 80-pin SCSI Disk Drive/Carrier ST373307LC |
| 3275 |
00P2664/00P2665/ 00P3834/00P3835/ 03N5264/03N5265/ 03N6330/08K0273/ 26K5194/26K5294/ 26K5534 |
146.8GB 10K 80 Pin RPM U320 SCSI Disk Drive/Carrier ST3146807LC |
| 3277 |
00P2692/00P2693/ 03N5275/03N6339/ 03N6340/07N6771/ 09P3631/26K5178/ 26K5278/26K5530/ 80P3159 |
36.4GB 15K 80 Pin U320 SCSI Disk Drive |
| 3278 |
00P2684/00P2685/ 00P5260/03N5279/ 03N5280/03N6344/ 03N6345/26K5180/ 26K5280/26K5531/ 55P4103/80P3163 |
73.4 GB 15,000 RPM Ultra3 SCSI Disk Drive Assembly |
| 3585 |
10N7195/10N7211/ 10N8578 |
300 GB 15K RPM SCSI Disk Drive |
| RAID卡 | ||
| 1908 |
39J1985/39J3541/ 39J4610/39J5676 |
Dual Channel SCSI RAID Enablement Card |
| 1913 |
571B/39J2418/ 39J5026/42R4857 |
PCI-X DDR Dual Channel Ultra320 SCSI RAID Adapter, Cache battery pack 39J5555. Note: The 1913 adapter is not supported by i5/OS. |
| 1975 |
39J5107/52P8630/ 80P6515 |
PCI-X Dual Channel Ultra320 SCSI RAID Adapter |
| 5703 |
39J5105/44V3319/ 53P3880/80P2696/ 97P2702/97P3960/ 97P6516/97P6654 |
PCI-X Dual Channel Ultra320 SCSI RAID Adapter |
| SCSI卡 | ||
| 1912 |
39J2421/39J4998/ 42R4862/42R4362/ 52P8558 |
PCI-X DDR Dual Channel Ultra320 LVD SCSI Adapter |
| 1974 | 52P8632/80P6513 | PCI-X Dual Channel Ultra320 SCSI Adapter |
| 5712 |
44V3315/53P0978/ 97P2686/97P2687 /97P3359/97P6513 |
PCI-X Dual Channel Ultra320 SCSI Adapter |
| 网卡 | ||
| 1954 | 00N5444/03N5446 | 4-Port 10/100/1000 BaseT Ethernet PCI-X Adapter |
| 1959 |
00G2380/03H4700/ 03N6070/03N6526 |
10/100/1000 Base-TX Ethernet Low Profile PCI-X Adapter (Copper) |
| 1978 |
03N6981/03N6982/ 05N6768/11P3847/ 12R9314/15R7536/ 52P8641/83P6444 |
IBM Gigabit Ethernet-SX PCI-X Adapter |
| 1979 |
00G2380/03N6070/ 03N6525/52P8642/ 80P6445 |
10/100/1000 Base-TX Ethernet PCI-X Adapter |
| 1981 |
03N6970/05N6768/ 11P3847/12R9314/ 15R7536/52P8614/ 80P6452 |
10 Gigabit Ethernet -SR PCI-X Adapter |
| 1982 |
03N6972/12R6249/ 12R9315/52P8615/ 80P6453 |
IBM 10 Gigabit Ethernet-LR PCI-X Adapter |
| 1983 |
00G2380/03N6070/ 52P8643/80P6450 |
IBM 2-Port 10/100/1000 Base-TX Ethernet PCI-X Adapter |
| 1984 |
03N6974/05H6768/ 11P3847/12R9314/ 15R7536/52P8644/ 80P6451 |
IBM 2-Port Gigabit Ethernet-SX PCI-X Adapter |
| 1985 |
00G2380/03N6070/ 52P8640/80P6508 |
10/100 Mbps Ethernet PCI Adapter II |
| 1990 | 03N4701/03N5531 | Dual Port 10/100/1000 Base-tx Ethernet |
| 4962 |
00G2380/00P3056/ 03N6070/09P3196/ 09P5023/44P0321 |
10/100 Mbps Ethernet PCI Adapter II Type A-E |
| 5700 |
00P3055/00P4499/ 03N6981/05N6768/ 09P5386/10N8586/ 11P3847/12R9314/ 15R7536 |
IBM Gigabit Ethernet-SX PCI-X Adapter |
| 5701 |
00G2380/00P3056/ 00P4501/00P6130/ 03N6070/03N6524/ 09P5389/21P4745/ 53P5450/80P4024/ 80P7033 |
IBM 10/100/1000 Base-TX Ethernet PCI-X Adapter |
| 5706 |
00G2380/00P4289/ 00P6131/03N5297/ 03N6070/53P5450/ 80P4024/80P7033 |
IBM 2-Port 10/100/1000 Base-TX Ethernet PCI-X Adapter |
| 5707 |
00P4290/00P6132/ 03N6973/05N6768/ 10N8587/11P3847/ 12R9314/15R7536/ 53P5450/80P4024/ 80P6451/80P7033 |
IBM 2-Port Gigabit Ethernet-SX PCI-X Adapter |
| 5718 |
03N6969/05N6768/ 11P3847/12R9314/ 15R7536/16R0299 |
10 Gigabit Ethernet-SR PCI-X Adapter |
| 5719 |
03N6971/12R6249/ 12R9315/80P4066/ 80P5758 |
IBM 10 Gigabit Ethernet-LR PCI-X Adapter |
| 5721 |
573A/03N4590 /05N6768/10N8264/ 10N9774/10N9775/ 11P3847/12R9314/ 15R75836/74Y2621/ 80P6636/80P7055 |
10 Gb Ethernet-SR PCI-X 2.0 DDR Adapter |
| 5722 |
576A/03H4588/ 10N8263/10N9776/ 10N9777/12R6249/ 12R9315/80P6634/ 80P7053 |
10 Gb Ethernet-LR PCI-X 2.0 DDR Adapter |
| 适配卡 | ||
| 1820 | 26K7434/26K7452 | PCI-X Dual-port 4x IB HCA |
| 2738 |
28EF/52P8639/ 80P2994/80P6227 |
2-Port USB PCI Adapter |
| 2943 |
07L9001/07L9822/ 11H5967/11H5968/ 11H5969/11H6011/ 42R4761/6298964/ 93H6540/93H6541/ 94H6541 |
8-Port Asynchronous Adapter EIA-232/RS-422, PCI bus |
| 2947 |
07L8796/53G0638/ 84H3413/87H3311/ 87H3410/87H3413/ 87H3420/87H3427/ 87H3439/87H3440/ 87H3442/87H3450/ 87H3500/87H3565/ 87H3566/87H3567/ 87H3568/87H3613/ 87H3615/87H3616/ 87H3620/87H3617/ 87H3621/87H3622/ 87H3625/87H3626/ 87H3627/87H3630/ 87H3631/87H3632/ 87H3663/87H3715/ 87H3772 |
IBM ARTIC960Hx 4-Port Multiprotocol PCI Adapter |
| 4764 |
12R6540/12R6714/ 41U0441/41U0442/ 41V0161 |
PCI-X Cryptographic Coprocessor (FIPS 4) |
| 5723 | 64P1243/80P4353 | 2-Port Asynchronous EIA-232 PCI Adapter |
| 显卡 | ||
| 1980 |
03N5853/03N5855/ 52P8645/80P6408/ 80P6411 |
POWER GXT135P Graphics Accelerator with Digital Support |
| 2848 |
00P2526/00P2530/ 00P5756/00P5758/ 09P3209/09P5074/ 09P5269/09P5758/ 80P4527 |
PCI 2D Entry Graphics Adptr |
| 2849 |
00P5756/00P5758/ 03N5853/09P5758 |
POWER GXT135P Graphics Accelerator with Digital Support |
| 光纤卡 | ||
| 1905 |
03N5005/03N5010 /46K6838 |
4 Gb Single-Port Fibre Channel PCI-X 2.0 DDR Adapter |
| 1910 |
03N5020/03N5025/ 05N6768/11P3847/ 12R9314 |
4 Gb Dual-Port Fibre Channel PCI-X 2.0 DDR Adapter |
| 1957 |
03N4698/03N6440/ 03N7068/05N6768/ 10N8624/11P3847/ 12R9314/15R7536 |
2 Gigabit Fibre Channel PCI-X Adapter (Low profile) |
| 1977 |
03N6439/03N7067/ 05N6768/10N8623/ 11P3847/12R9314/ 15R7536/52P8633/ 80P6101/80P6455 |
2 Gigabit Fibre Channel PCI-X Adapter |
| 1986 |
26K6490/30R5209/ 32R1926/49Y4236/ 52P8480/80P4092 |
1 Gigabit iSCSI TOE PCI-X on Copper Media Adapter |
| 1987 |
30R5509/52P8456/ 80P4094 |
1 Gigabit iSCSI TOE PCI-X on Optical Media Adapter |
| 5716 |
280B/03N6441/ 03N7069/05N6768/ 10N8622/11P3847/ 12R9314/15R7536/ 80P4543/80P4544 |
2 Gigabit Fibre Channel PCI-X Adapter |
| 电源 | ||
| 7958 |
Power Supply, 600 Watt AC, Hot-swap, Base and Redundant |
|
| 电池 | ||
|
04N2496/22R2717/ 42R5070/44L0313 |
Battery for raid card. | |
| 42R5064/39J0374 |
Battery for Ultra320 SCSI RAID, SFF daughter card |
|
| 光驱 | ||
| 1900 |
03N4539/03N4540/ 18P8166/39J3802/ 39J3803/39J3806/ 39J3807/39J5767/ 39J5768/42R7965/ 42R7966 |
4.7 GB IDE Slimline DVD-RAM Drive |
| 1903 |
03N4536/39J0552/ 42R5289 |
IDE Slimline DVD-ROM Drive |
| 导轨 | ||
| 7103 | 62G3061 |
IBM/OEM Rack-mount Drawer Rail Kit -- Full Access |
| 7179 | IBM'OEM Rack-mount Drawer Rail Kit | |
| 许可协议 | ||
| 7289 |
One Processor Entitlement for Processor Feature #8289 |
|
| 线缆 | ||
| 1835 |
26R0813/42R6244/ 44V5082/97P6113 |
3 meter 4x Cable |
| 1836 |
21P8318/26R0847/ 26R0848/42R6245/ 44V5083 |
8 meter 4x Cable |
| 1839 |
39J4319/42R6243/ 44V5081 |
1.5 meter 4x Cable |
| 2114 | 40H6603/52G0173 |
PCI SCSI Adapter 16-Bit Differential External Y Cable |
| 2118 |
01K6497/07L9628 /76H0518 |
Converter Cable VHDCI to P Mini-68 pin to 68 pin 0.3M |
| 2425 | 40H2172/52G4233 | 2.5M 16-bit SCSI-2 System-to-System Cable |
| 2456 |
09P3044/11P1352/ 11P1373/12R9321 |
LC-SC 50 Micron Fiber Converter Cable |
| 2459 |
00P4023/11P1374/ 12R9322 |
LC-SC 62.5 Micron Fiber Converter Cable |
| 2861 |
07L8817/87H3404/ 87H3405/87H3406/ 87H3439/87H3568 |
ARTIC960Hx 4-Port EIA-232 Cable |
| 2863 |
53G0638/87H3407/ 87H3408/87H3409/ 87H3566 |
ARTIC960Hx 4-Port X.21 Cable |
| 2864 |
87H3398/87H3399/ 87H3400/87H3442/ 87H3565 |
ARTIC960Hx 4-Port V.35 (DTE Cable |
| 2877 | 08L1215/42R4756 | IBM ARTIC960RxD Quad DTA, H.100, 4-Drop Cable |
| 2934 |
10N6535/12H1204/ 40H0744/40H2206 |
Asynchronous Terminal/Printer Cable EIA-232 |
| 2936 |
30F9453/42R5206/5 3F3205/53F3662/ 6223741/6323741 |
Asynchronous Cable EIA-232/V.24 |
| 3124 |
10N7158/88G4771/ 88G4853 |
Serial to Serial Port Cable for Drawer/Drawer |
| 3125 |
10N7159/88G4772/ 88G4854 |
Serial to Serial Port Cable for Rack/Rack |
| 3925 |
00P2165/23R4632/ 40H6328/40H6329 |
Serial Port Converter Cable 9-Pin to 25-Pin |
| 3926 | 00P2166 | Asynch Printer/Terminal Cable 9-pin to 25-pin 4M |
| 3927 | 10N7712 |
Serial Port Null Modem Cable 9-pin to 9-pin 3.7M |
| 3928 | 10N7713 |
Serial Port Null Modem Cable 9-pin to 9-pin 10M |
| 4242 |
07L9633/08L0491/ 42R4755 |
6 Foot Extender Cable for Displays (15 pin D-shell to 15 pin D-shell |
| 4256 |
00P2969/10N7374 32N1311/44P1375 |
Extender Cable - USB Keyboards 2M |
| 4691 | 53P2237 |
Rack Status Beacon Cable Junction Box To Drawer Or Status Beacon |
| 4692 | 53P2854 |
Rack Status Beacon Cable Junction Box Daisy Chain |
| 6458 |
Power Cable- Drawer to IBM PDU 14-foot 250V/10A |
|
| 6460 |
Power Cord (14-foot Drawer To OEM PDU (125V 15A Plug Type #4 |
|
| 6469 |
Power Cord (14-foot Drawer to OEM PDU (250V 15A United States Plug Type #5 |
|
| 6470 | Power Cord (6-foot To Wall (125V 15A Plug Type #4 | |
| 6471 |
Power Cord (9-foot To Wall/OEM PDU (125V 15A Plug Type #70 |
|
| 6472 |
Power Cord (9-foot To Wall/OEM PDU (250V 16A Plug Type #18 |
|
| 6473 |
Power Cord (9-foot To Wall/OEM PDU (250V 10A Plug Type 19 |
|
| 6474 |
Power Cord (9-foot) To Wall/OEM PDU (250V 13A) Plug Type #23 |
|
| 6475 |
Power Cord (9-foot) To Wall/OEM PDU (250V 16A) Plug Type #32 |
|
| 6476 |
Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #24 |
|
| 6477 |
Power Cord (9-foot) To Wall/OEM PDU (250V 16A) Plug Type #22 |
|
| 6478 |
Power Cord (9-foot) To Wall/OEM PDU (250V 16A) Plug Type #25 |
|
| 6487 |
Power Cord (6-foot To Wall (250V 15A United States Plug Type #5 |
|
| 6488 |
Power Cord (9-foot To Wall/OEM PDU (125V 15A or 250V 10A Plug Type #2 |
|
| 6493 |
Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #62 |
|
| 6494 |
Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #69 |
|
| 6495 |
Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #73 |
|
| 6496 |
Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #66 |
|
| 6651 |
Power Cord (9-foot To Wall/OEM PDU (125V 15A Plug Type #75 |
|
| 6659 |
Power Cord (9-foot To Wall/OEM PDU (250V 15A Plug Type #76 |
|
| 6660 |
Power Cord (14-foot Drawer To OEM PDU (125V 15A Plug Type #59 (DENAN marking |
|
| 6665 |
Power Cord 3 M (10 ft Drawer to IBM PDU 250V/10A |
|
| 6669 |
Power Cord (14-foot Drawer to OEM PDU (250V 15A Plug Type #57 (DENAN marking |
|
| 6670 |
Power Cord (6-foot To Wall (125V 15A Plug Type #59 (DENAN marking |
|
| 6671 |
Power Cord (9-foot) Drawer to IBM PDU 250V/10A |
|
| 6672 |
Power Cord (5-foot) Drawer to IBM PDU 250V/10A |
|
| 6680 |
Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #6 Insulated |
|
| 6687 |
Power Cord (6-foot) To Wall (250V 15A) Plug Type #57 (DENAN marking) |
|
| 7801 |
16R0449/41V0479/ 52P7524 |
Ethernet Cable 6M Hardware Management Console to System Unit |
| 7802 |
05N5292/41V0143 /52P7525 |
Ethernet Cable 15M Hardware Management Console to System Unit |
| 8131 | 43G0937/51G8608 |
128-Port Asynchronous Controller Cable 4.5 Meter |
| 8132 |
43F0936/43F0937/ 43G0936 |
128-Port Asynchronous Controller Cable 23cm (9-Inch |
| 8133 | 43G0935/51G8610 | RJ-45 to DB-25 Converter Cable |
| 其它 | ||
| 39J0361/42R5377 |
Control panel and removable media tray assembly |
|
| 265 | AIX Partition Specify | |
| 2591 |
03N4962/33P3339/ 52P8634 |
Ext 1.44GB Diskette Drive |
| 3628 |
04N7160/04N7168/ 04N7170//04N7172/ 04N7177/04N7529// 04N7532//04N7589/ 61H0226 |
IBM P260/P275 Color Monitor, Business Black, and Cable |
| 3636 |
31P9263/31P9264/ 31P9265/31P9266 |
L200P Flat Panel Monitor |
| 3637 |
04N7526/04N7527/ 04N7532/13F9959/ 31P7507/31P7509/ 31P7511/31P7513/ 31P7515 |
IBM T541H /L150p 15" TFT Color Monitor |
| 3638 |
22P4543/73P2310/ 73P2311/73P2313/ 73P2316 |
C220P 21" Color Monitor |
| 3639 |
13F9959/31P9575/ 31P9577/31P9584/ 31P9587/31P9590/ 73P0261 |
L180P TFT 17" Color Display |
| 3640 | L171P TFT 17" Black Display | |
| 3641 |
40K7317/40K5341/ 73P4360 |
T115 TFT 15" Color Display |
| ThinkVision L191p Flat Panel Monitor | ||
| 3644 | IBM T119 Flat Panel Monitor | |
| 3645 | 39Y9919/40k5342 | IBM T117 Flat Panel Monitor |
| 3752 | 09P3035 | Service Package |
| 5001 | Customer Solution Center | |
| 5005 | software preinstall | |
| 7305 | SDI Software Pre-Install Indicator | |
| 7432 | Advanced POWER Virtualization | |
| 8136 |
09P4095/09P4096/ 40H2588/40H2589 |
Rack Mountable Remote Asynchronous Node 16-Port EIA-232 |
| 9461 | Month Indicator | |
| 9462 | Day Indicator | |
| 9463 | Hour Indicator | |
| 9464 | Minute Indicator | |
| 9465 | Qty Indicator | |
| 9466 | Countable Member Indicator | |
