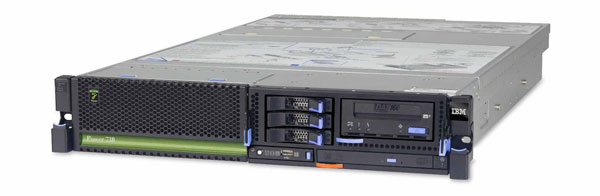

IBM P730(8231-E2B)

IBM P730(8231-E2B) B款小型机, 2U机架式服务器,高性能,高可用性,如需了解最新价格请咨询鑫瑞信息

品牌:IBM

系列:P7

支持CPU个数:无

支持最大内存:128G

支持最大硬盘容量:900GB

机身高度:2U

商品价格:5000元

上架时间:18-10-24

上一篇:IBM P720(8202-E4C)多少钱_配置参数_价格_最新报价

下一篇:IBM P730(8231-E2C)多少钱_配置参数_价格_最新报价

  • 产品描述
  • 相关产品
  • 相关配件

整机信息
名称 IBM Power 730 Express Server (8231-E2B)
型号 8231-E2B
品牌 IBM
类型 小型机
CPU信息 8 路 3.0 和 3.7 GHz 的,12 路 3.7 GHz 的,16 路 3.55 GHz 的 POWER7 处理器。
CPU类型 POWER7
CPU插槽数 2
CPU激活 需要激活码
机架类型 机架式
机架空间 4U
硬盘信息 最大硬盘背板数量为 1
最大硬盘数量 6
内存提示 DDR3 的内存,整机默认包含一个Memory
Riser Card,提供四个内存槽位,最多三个
#5265的Memory Riser Card可以安装到
Power 730中。
支持内存容量范围 8GB-128GB
内存插槽数量 4-16(三个 FC#5265 Memory riser card)
内存是否需要激活 内存的容量不需要激活,Active Memory
Expansion 是从POWER7开始支持的一项
新的内存虚拟技术,需要激活码。Option
(4795)-Power Active Memory Expansion
Enablement
电源描述 100v 到 240v 交流。
单机电源数量 2
介质托架 用于 DVD-RAM 的薄型托架,用于磁带驱
动器或可移动磁盘的半高托架。
适配器插槽 4 个 PCI Express 8x 的小型插槽。
端口 4 个以太网 10/100/1000 Mbps 端口(或
)2 个 10 千兆以太网端口,3 个 USB 端口,
2 HMC 端口,2 个系统端口,2 个 SPCN 端口。
IO适配器 1 个用于 SAS DASD/ 固态硬盘和 DVD-RAM
 控制器,可选的 175 MB 保护缓存。
IO扩展
发布日期 2010/1/17
下架日期
服务截止期
操作系统 AIX, IBM I, LinuX f或者 POWER®。
产品尺寸 Width: 440 mm (19.0 in),
Depth: 706 mm (27.8 in)
, Height: 89 mm (3.5 in).
产品重量 29.5 千克(65 磅)。

配件信息
FC号 PN号 描述
CPU
8348 74Y6155 4-core 3.7GHz POWER7
Processor Module
8349 74Y6153 6-core 3.7GHz POWER7
Processor Module
8350 537D/74Y6149 4-core 3.0GHz POWER7
Processor Module
8359 74Y6154 8-core 3.55GHz POWER7
 Processor Module
系统板
  2BE3/74Y1959/
00E0635
Memory card assembly
  52C9/74Y2642 System VPD card
内存
  31F8/78P1011 2 GB, 1066 MHz DDR3 DIMM
4525 04N2568/04N2967/
19P2481/73H2601/
81F8902/93H8055/
97H7330/97H7610/
97H7796
4GB (2x2GB) Memory DIMMs,
1066MHz, 2GB DDR3 DRAM
4526 77P8784 8GB (2x4GB) Memory DIMMs,
1066MHz, 2GB DDR3 DRAM
4527 77P8632 16GB (2x8GB) Memory DIMMs,
1066MHz, 2GB DDR3 DRAM
硬盘
  19A3/74Y4897 571 GB 10K small form factor
SAS disk drive (IBM® i)
  19A4/74Y9271 857 GB 10K small form factor
SAS disk drive (IBM i)
  58B3/74Y5293/
74Y5294
177 GB small form factor
solid-state
SAS drive for 9117-MMC,
9117-MMD,
9179-MHC, or 9179-MHD.
  58B8/74Y9524 387 GB small form factor
solid-state SAS drive
  58B9/74Y9526 387 GB small form factor
solid-state SAS drive
  74Y4900 600 GB 10K small form
 factor SAS disk drive
  74Y9272 900 GB 10K small form factor SAS
disk drive
1790   600GB 10K RPM SAS SFF Disk Drive
 (AIX/Linux)
1793   177GB SFF-2 SSD w/ eMLC (AIX/Linux)
1883 44V4426/44V4427/
44V4428/44V6842
73.4 GB 15K RPM SAS SFF Disk Drive
1884 198B/44V4429/
44V4430
69.7 GB 15K RPM SAS SFF Disk Drive
1885 42R6833/44V6831/
44V6833/44V6838
300GB 10K RPM SFF SAS Disk Drive
1886 44V6843/44V6845/
44V6850
146GB 15K RPM SFF SAS Disk Drive
1888 198C/44V6844/
00E6166
139 GB 15K small form factor SAS disk
 drive, IBM® i
1890/1909 58B0/44V6817/
44V6821/44V8674
69GB SFF SAS Solid State Drive
1911 198D/74Y4896 283GB 10K RPM SFF SAS Disk
 Drive (IBM i)
1917   146GB 15k RPM SAS SFF-2 Disk
 Drive (AIX/Linux)
1925   300GB 10k RPM SAS SFF-2 Disk
 Drive (AIX/Linux)
1964   600GB 10k RPM SAS SFF-2 Disk
Drive (AIX/Linux)
1995 58B2/43W7749 177GB SSD Module with eMLC
(AIX/Linux)
3647 10N7203/10N7204/
10N7232/42R4234
146 GB 15K RPM SAS Disk Drive
3648 10N7207/10N7208/
10N7234/42R5648
300 GB 15K RPM SAS Disk Drive
3649 44V4432/44V4433/
44V4438/44V4440
450 GB 15K RPM SAS Disk Drive
硬盘背板
  2BD7/74Y3352
74Y2023
Disk drive and media backplane
 (supports six disk drives and one
 DVD drive)
5263 2BE7/74Y3355/
74Y2024
Storage Backplane -- 3 SFF Drives/
SATA DVD/HH Tape
5267   DASD/Media Backplane -- 6 SFF
 DASD/SATA DVD
5268   DASD/Media Backplane -- 6 SFF
 DASD/SATA DVD/RAID/External
SAS Port
RAID卡
2053 43K6366/43K6367/
74Y6409
PCIe LP RAID & SSD SAS Adapter 3Gb
网卡
5271   PCIe Low Profile 4-Port 10/100/1000
Base-TX Ethernet Adapter
5272   PCIe LP 10GbE CX4 1-port Adapter
5274   PCIe LP 2-Port 1GbE SX Adapter
5275   PCIe LP 10GbE SR 1-port Adapter
适配卡
  2BCF/44V8361/
74Y6020/74Y3343
Cache battery card
  2BD9/44V8353/
74Y2071
RAID and cache storage controller
  2BE1/46K7723 RAID enablement card
  2D1E/74Y2022 Interposer card assembly
  2D1F/74Y2021 Interposer card assembly
 (with RAID feature)
1824 266D/46K8121 Quad-port 1 Gb HEA Daughter Card
1825 266E/74Y2000 Dual-port 10 Gb HEA Daughter Card
 (Fiber)
1826 266F/74Y2003 Dual-port 10 Gb HEA Daughter Card
 (Copper)
1832 41V0231/42R6155/
42V2133
Quad-port 1 Gb HEA Daughter Card
1833 39J5641/42R6156/
42R6259/97P3654
Dual-port 10Gb HEA Daughter Card
(Fiber)
5266 2BDB/74Y1958 GX++ Dual-port 4x Channel Attach
5277   PCIe LP 4-Port Async EIA-232 Adapter
5278   PCIe LP 2-x4-port SAS Adapter 3Gb
显卡
5269 74Y2025 PCIe LP POWER GXT145 Graphics
Accelerator
光纤卡
5270   PCIe LP 10Gb FCoE 2-port Adapter
5273   PCIe LP 8Gb 2-Port Fibre
Channel Adapter
5276   PCIe LP 4Gb 2-Port Fibre
Channel Adapter
电源
5603 2BCB/74Y5985 System AC Power Supply, 1725 W
稳压模块
  2BE8/74Y5457 Processor VRM
电池
  44V4359/74Y9628 Time-of-day battery
  74Y6773 Cache battery pack for cache battery
card and RAID and cache storage controller
光驱
5762 44V4219/44V4220 SATA Slimline DVD-RAM Drive
磁带机
1124 23R5635/23R5636/
23R5638/23R9722/
23R9723/46C2214/
46C2215
80/160GB DAT160 SAS Tape Drive (3.5")
5673 46C1933/46K7434 DAT320 160 GB USB Tape Drive
风扇
  44V8326 Heat sink
  6B1E/74Y5222 60 mm fan assembly
  74Y3353/74Y6275 Fan cage assembly (front)
导轨
  00E5669/59Y4919/
49Y5312
Slide rail assembly with 49Y5312
Attaching screw for slide rail assembly
  46K6257 Rail kit (includes two slides)
6586 10N7683/80P3263 Modem Tray for 19-Inch Rack
7841   Ruggedize Rack Kit
线缆
  46K7435 USB internal cable for tape drive
1025 42R5087/43L6774/
75G3801/87G6236
Modem Cable - US/Canada and
General Use
1827 39J5836/97P4299 3m RIO to RIO-2 Cable
2456 09P3044/11P1352/
11P1373/12R9321
LC-SC 50 Micron Fiber Converter Cable
2459 00P4023/11P1374/
12R9322
LC-SC 62.5 Micron Fiber
Converter Cable
2934 10N6535/12H1204/
40H0744/40H2206
Asynchronous Terminal/Printer
Cable EIA-232
2936 30F9453/42R5206/
53F3205/53F3662/
6223741/6323741
Asynchronous Cable EIA-232/V.24
3124 10N7158/88G4771/
88G4853
Serial to Serial Port Cable for Drawer/Drawer
3125 10N7159/88G4772/
88G4854
Serial to Serial Port Cable for Rack/Rack
3246   3-meter DDR 4X Copper Cable
3652 42R6762/44V4147 SAS Cable (EE Drawer to Drawer 1M
3653 42R6727/44V4148 SAS Cable (EE) Drawer to Drawer 3M
3654 42R6728/44V4149 SAS Cable (EE) Drawer to Drawer 6M
3661 42R6742/44V4154 SAS Cable (X Adapter to SAS Enclosure
Dual Controller/ Dual Path 3M
3662 42R6743/44V4155 SAS Cable (X) Adapter to SAS Enclosure,
 Dual Controller/ Dual Path 6M
3663 42R6744/44V4156 SAS Cable (X) Adapter to SAS Enclosure,
Dual Controller/ Dual Path 15M
3684 42R8118/44V4163 SAS Cable (AE Adapter to Enclosure
single controller/ single path 3M
3685 42R8120/44V4164 SAS Cable (AE) Adapter to Enclosure,
single controller/ single path 6M
3686 42R6792/44V4161 SAS Cable (YI) System to SAS Enclosure,
Single Controller/Dual Path 1.5M
3687 42R6793/44V4162 SAS Cable (YI) System to SAS Enclosure,
Single Controller/Dual Path 3M
3691 42R6788/44V4157 SAS Cable (YO Adapter to SAS Enclosure
Single Controller/Dual Path 1.5 M
3692 42R6789/44V4158 SAS Cable (YO) Adapter to SAS Enclosure,
 Single Controller/Dual Path 3 M
3693 42R6790/44V4159 SAS Cable (YO) Adapter to SAS Enclosure,
Single Controller/Dual Path 6 M
3694 42R6791/44V4160 SAS Cable (YO) Adapter to SAS Enclosure,
Single Controller/Dual Path 15 M
3925 00P2165/23R4632/
40H6328/40H6329
Serial Port Converter Cable 9-Pin to 25-Pin
3926 00P2166 Asynch Printer/Terminal Cable 9-pin to 25-pin 4M
3927 10N7712 Serial Port Null Modem Cable 9-pin to 9-pin 3.7M
3928 10N7713 Serial Port Null Modem Cable 9-pin to 9-pin 10M
3930   System Serial Port Converter Cable
4242 07L9633/08L0491/
42R4755
6 Foot Extender Cable for Displays (15 pin
 D-shell to 15 pin D-shell
4256 00P2969/10N7374/
32N1311/44P1375
Extender Cable - USB Keyboards 2M
6458   Power Cable- Drawer to IBM PDU 14-foot 250V/10A
6460   Power Cord (14-foot Drawer To OEM PDU
(125V 15A Plug Type #4
6469   Power Cord (14-foot Drawer to OEM PDU
 (250V 15A United States Plug Type #5
6470   Power Cord (6-foot To Wall (125V 15A Plug Type #4
6471   Power Cord (9-foot To Wall/OEM PDU
(125V 15A Plug Type #70
6472   Power Cord (9-foot To Wall/OEM PDU
(250V 16A Plug Type #18
6473   Power Cord (9-foot To Wall/OEM PDU
(250V 10A Plug Type 19
6474   Power Cord (9-foot) To Wall/OEM PDU
(250V 13A) Plug Type #23
6475   Power Cord (9-foot) To Wall/OEM PDU
 (250V 16A) Plug Type #32
6476   Power Cord (9-foot) To Wall/OEM PDU
(250V 10A) Plug Type #24
6477   Power Cord (9-foot) To Wall/OEM PDU
(250V 16A) Plug Type #22
6478   Power Cord (9-foot) To Wall/OEM PDU
(250V 16A) Plug Type #25
6479   Power Cord (9-foot) To Wall/OEM PDU
(250V 10A) Plug Type #6
6487   Power Cord (6-foot To Wall
(250V 15A United States Plug Type #5
6488   Power Cord (9-foot To Wall/OEM PDU
(125V 15A or 250V 10A Plug Type #2
6493   Power Cord (9-foot) To Wall/OEM PDU
(250V 10A) Plug Type #62
6494   Power Cord (9-foot) To Wall/OEM PDU
 (250V 10A) Plug Type #69
6495   Power Cord (9-foot) To Wall/OEM PDU
(250V 10A) Plug Type #73
6496   Power Cord (9-foot) To Wall/OEM PDU
(250V 10A) Plug Type #66
6497   Power Cord (6-foot) To Wall/OEM PDU
(250V 10A) Plug Type #10
6498   Power Cord (6-foot) To Wall/OEM PDU
(250V 15A) Plug Type #34
6651   Power Cord (9-foot To Wall/OEM PDU
(125V 15A Plug Type #75
6659   Power Cord (9-foot To Wall/OEM PDU
(250V 15A Plug Type #76
6660   Power Cord (14-foot Drawer
To OEM PDU
 (125V 15A Plug Type #59
 (DENAN marking
6665   Power Cord 3 M (10 ft Drawer to IBM
PDU 250V/10A
6669   Power Cord (14-foot Drawer to OEM PDU
 (250V 15A Plug Type #57 (DENAN marking
6670   Power Cord (6-foot To Wall
(125V 15A Plug Type #59 (DENAN marking
6671   Power Cord (9-foot) Drawer to
 IBM PDU 250V/10A
6672   Power Cord (5-foot) Drawer to IBM
PDU 250V/10A
6680   Power Cord (9-foot) To Wall/OEM
PDU
 (250V 10A) Plug Type #6 Insulated
6687   Power Cord (6-foot) To Wall
(250V 15A) Plug Type #57
(DENAN marking)
7801 16R0449/41V0479/
52P7524
Ethernet Cable 6M Hardware
Management Console to System Unit
7802 05N5292/41V0143/
52P7525
Ethernet Cable 15M Hardware
Management Console to System Unit
EN01   1m (3.3-ft), 10GbE'Net Cable
SFP+ Act Twinax Copper
EN02   3m (9.8-ft) 10GbE'Net Cable
SFP+ Act Twinax Copper
EN03   5m (16.4-ft) 10GbE'Net Cable
SFP+ Act Twinax Copper
机壳
7317 2BFC/46K7877/
74Y7445
System backplane. Chassis with
One Processor Planar.
7318 2BFB/46K7505/
74Y7445
System backplane.
7840   Side-by-Side for 1.8m Racks
其它
  2BCD/74Y5481/
74Y3964
Control panel assembly
  74Y7205 Interlock switch
1106 46C5374/46C5375 USB 160 GB Removable Disk Drive
1107 46C5379/46C5395 USB 500 GB Removable Disk Drive
1123 46K7434 Internal power cable for tape drive
1140   Custom Service Specify, Rochester Minn, USA
1406 14F1553/39M5279/
39Y5565/40K9772
200V 16A 4.3m (14-Ft) TL Line Cord
1413   125V 4.3m (14-Ft) Line Cord
1414 39M5115/41V1961/
86G7878
200V 6-Ft Locking Line Cord
1415 41V1966/73F4931 200V 1.8m (6-Ft) Watertight Line Cord
1416   200V 14-Ft Locking Line Cord
1417   200V 4.3m (14-Ft) Watertight Line Cord
1418 14F1557/39M5291/
40K9770
4.3m 200V/16A Power Cord S. Africa
1419 14F1561/39M5311/
40K9771
4.3m 200V/16A Power Cord Israel
1420 14F1554/39M5383/
40K9766
4.3m 200V/16A Power Cord EU/Asia
1421 14F1555/36L8823/
39M5323/40K9769
4.3m 200V/16A Power Cord CH/DK
1424 11F0114/11F0117/
11F0117/41V2004
200V 6-Ft Locking Line Cord
1425 07H6891/23R3230/
46F4593
200V 6-Ft Wtrtght Line Cord
1426 11F0113/11F0115/
41V2003
200V 14-Ft Locking Line Cord
1427 23R3231/46F4594 200V 14-Ft Wtrtght Line Cord
1439 13F99809/39M5124 4.3m 200V/10A Power Cord EU/Asia
1440 13F9998/39M5131 4.3m 200V/10A Pwr Cd Denmark
1441 14F0016/39M5145 4.3m 200V/10A Pwr Cd S Afric
1442 14F0052/39M5159 4.3m 200V/10A Pwr Cd Swiss
1443 14F0034/39M5152 4.3m 200V/10A Pwr Cd UK
1449 21H7693 4.3m 200V/32A Power Cord EU 1-PH
1450 21H7691 4.3m 200V/16A Pwr Cd EU 2-PH
1451 14F1547/39M5261 200V (6-Ft) 1.8m Line Cord
1452 14F1548/39M5263 200V 14-Ft Line Cord
1453 14F1549/39M5273 200V 6-Ft Locking Line Cord
1454 14F1550/39M5275 200V 12A 14-Ft TL Line Cord
1455 14F1551/39M5313/
86F2645
200V 6-Ft Wtrtght Line Cord
1456 14F1552/39M5315
/86F2646
200V (14-Ft) 4.3m Watertight Line Cord
1457 12J5120/39M5262 200V 6-Ft (1.8mUpper Line Cord
1458 12J5119/39M5274 200V 6-Ft (1.8mUpper Locking Cord
1459 93M5314/55H6644 200V 6-Ft Upper Wtrtght Cord
1476 12J5988/39M5295/
40K9767
4.3m/200V/12A Pwr Cd UK
1477   4.3m 200V/16A Pwr Cd
2145 21H8079 Primary OS - IBM i
2146 44H6111 Primary OS - AIX
2147   Primary OS - Linux
3632   Widescreen LCD Monitor
3637 04N7526/04N7527/
04N7532/13F9959/
31P7507/31P7509/
31P7511/31P7513/
31P7515
IBM T541H /L150p 15" TFT Color Monitor
3639 13F9959/31P9575/
31P9577/31P9584/
31P9587/31P9590/
73P0261
L180P TFT 17" Color Display
3640   L171P TFT 17" Black Display
3641 40K7317/40K5341/
73P4360
T115 TFT 15" Color Display
3642   ThinkVision L191p Flat Panel Monitor
3644   IBM T119 Flat Panel Monitor
3645 39Y9919/40k5342 IBM T117 Flat Panel Monitor
4276 04N7533/09N3435/
25R9043
VGA to DVI Connection Converter
4650   Rack Indicator-Not Factory Integrated
4651   Rack Indicator, Rack #1
4660   Rack Indicator, Rack #10
4661   Rack Indicator, Rack #11
4662   Rack Indicator, Rack #12
4663   Rack Indicator, Rack #13
4664   Rack Indicator, Rack #14
4665   Rack Indicator, Rack #15
4666   Rack Indicator, Rack #16
4795   Active Memory Expansion
Enablement
5000   Software Preload Required
5002 07H9163/07H9163/
31H3140/31H3140
AS/400 CDSC - Rochester Mfg
5225 08L6201/08L6239 PowerVM Express Edition
5227   PowerVM Standard Edition
5228 50G0947 PowerVM Enterprise Edition
5265   Memory Riser Card
5524   RFID TAGS FOR SERVERS,
BLADES, BLADECENTERS,
RACKS, AND HMCS
5550   Sys Console On HMC
5553   Sys Console-Ethernet No IOP
5886   EXP 12S Expansion Drawer
5887   EXP24S SFF Gen2-bay Drawer
5959   Full Width Quiet Touch Keyboard -- USB, Hungarian, #208
5983   USB Keybd-US English Euro
6068   Opt Front Door for 1.8m Rack
6069   Opt Front Door for 2.0m Rack
6248 12R8349/44V0103 1.8m Rack Acoustic Doors
6249   2.0m Rack Acoustic Doors
6263   1.8m Rack Trim Kit
6272   2.0m Rack Trim Kit
6492   4.3m (14-Ft) 1PH/48-60A Pwr Cord
6577   Power Cable - Drawer to IBM PDU, 200-240V/10A
6580 41V0489 Optional Rack Security Kit
7118   Environmental Monitoring Probe
7305   SDI Software Pre-Install Indicator
7780   2.0m Rack Side Attach Kit
8143   Linux Software Preinstall
8144   Linux Software Preinstall (SDIs)
9300   Language Group Specify - US English
9359   specify mode-1 1(1)5901/5278 for EXP24S #5887
9360   Specify mode-1 1(2)5901/5278 for EXP24S #5887
9361   Specify mode-2 1(2)5901/5278 for EXP24S #5887
9365   Specify mode-4 1(4)5901/5278 for EXP24S #5887
9366   -Specify mode-2 1(4)5901/5278 for EXP24S #5887
9384   Specify mode-1 & CEC SAS port for EXP24 #5887
9440   New AIX License Core Counter
9441   New IBM i License Core Counter
9442   New Red Hat License Core Counter
9443   New SUSE License Core Counter
9444   Other AIX License Core Counter
9445   Other Linux License Core Counter
9446   3rd Party Linux Core Counter
9447   VIOS Core Counter
9461   Month Indicator
9462   Day Indicator
9463   Hour Indicator
9464   Minute Indicator
9465   Qty Indicator
9466   Countable Member Indicator
ELPM   Trial PowerVM Live Partition
 Mobility
ERA1   Rational Appliance Cobol
Solution Tracking Code
ERA2   Rational Appliance C/C++
Solution Tracking Code
ERA3   Rational Appliance Cobol
Solution Tracking Code
ERA4   Rational Appliance C/C++
Solution Tracking Code

返回上级
