| 整机信息 | |

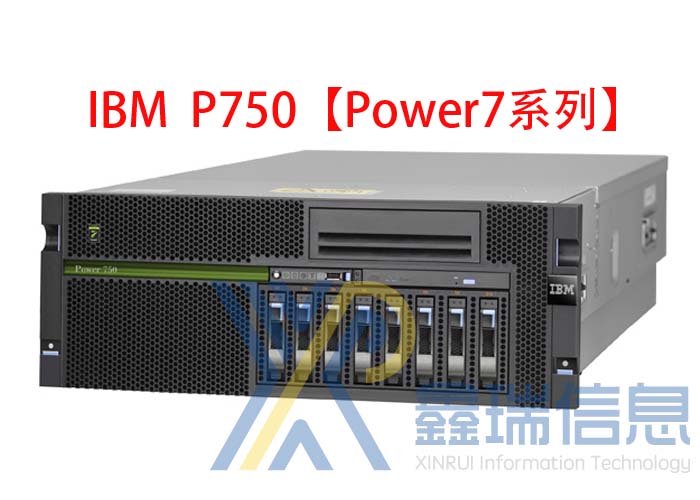

| 名称 | IBM P750 |
| 型号 | 8233-E8B |
| 品牌 | IBM |
| 类型 | 小型机 |
| CPU信息 |
4 路 3.7 GHz 或者 6 路 3.7 GHz 或者 8 路 3.2 GHz 或者 8 路 3.6 GHz POWER7 处理器。 |
| CPU类型 | POWER7 |
| CPU插槽数 | 4 |
| CPU激活 | 需要激活码 |
| 机架类型 | 机架式 |
| 机架空间 | 4U |
| 硬盘信息 | 最大硬盘背板数量为 2 |
|
最大硬盘 数量 |
8 |
| 内存提示 | DDR3 的内存。 |
|
支持内存 容量范围 |
8GB-512GB |
|
内存插槽 数量 |
单个CPU 8根插槽， 最多32根插槽。 |
|
内存是否 需要激活 |
内存的容量不需要激活， Active Memory Expansion 是从POWER7开始支持的 一项新的内存虚拟技术， 需要激活码。Option (4792)- Power Active Memory Expansion Enablement |
| 电源描述 | 200v 到 240v 交流。 |
|
单机电源 数量 |
2 |
| 介质托架 |
用于 DVD-RAM 的薄型 托架，用于磁带驱动器 或可移动磁盘的半高托 架。 |
|
适配器插 槽 |
2 个 PCI-X 2.0，3个 PCI Express 8x 插槽。 |
| 端口 |
4 个以太网 10/100/1000 Mbps 端口（或）2个 10 千兆 以太网端口，3 个 USB 端口， 2 HMC 端口，2 个串口， 2 个 SPCN 端口。 |
| IO适配器 |
1 个 SAS DASD/SSD 和 DVD-RAM 控制器，可选 175 MB 高速保护缓存。 |
| IO扩展 |
最多 4 个 PCIe 12x I/O 抽屉， 最多 8 个 PCI-x DDR 12x I/O 抽屉。 |
| 发布日期 | 2010/1/19 |
| 下架日期 | |
|
服务截止 期 |
|
| 操作系统 |
AIX, IBM I, LinuX f 或者 POWER®。 |
| 产品尺寸 |
Depth: 237.0 mm, Width: 400.0 mm, Height: 457.0 mm |
| 产品重量 | 54.4 千克 (120.0 磅)。 |
| 配件信息 | ||
| FC号 | PN号 | 描述 |
| CPU | ||
| 8332 | 74Y1840/74Y2453 |
8-core 3.3GHz POWER7 Processor Card |
| 8334 | 74Y1855/74Y2457 |
8-core 3.0 GHz POWER7 Processor Card |
| 8335 | 74Y1845 |
6-core 3.3GHz POWER7 Processor Card |
| 8336 | 74Y1833/74Y2451 |
8-core 3.55GHz POWER7 Processor Card |
| EPA1 |
8-core 3.61GHz POWER7 Processor Card |
|
| EPA2 |
6-core 3.72GHz POWER7 Processor Card |
|
| EPA4 |
8-core 3.22GHz POWER7 Processor Card |
|
| 内存 | ||
| 4526 | 77P8784 |
8GB (2x4GB) Memory DIMMs, 1066MHz, 2GB DDR3 DRAM |
| 4527 | 77P8632 |
16GB (2x8GB) Memory DIMMs, 1066MHz, 2GB DDR3 DRAM |
| 4528 | 77P8633 |
32GB (2x16GB) Memory DIMMs, 1066MHz, 2GB DDR3 DRAM |
| 4544 | 77P8633 |
Memory Offering, 512GB (Multiples of 16 of 2x16GB DIMMs) |
| 硬盘 | ||
| 1790 |
600GB 10K RPM SAS SFF Disk Drive (AIX/Linux) |
|
| 1793 |
177GB SFF-2 SSD w/ eMLC (AIX/Linux) |
|
| 1882 |
42R5661/42R8390/ 42R8392/46V6830/ 46V6837 |
146.8GB 10K RPM SAS SFF Disk Drive |
| 1883 |
44V4426/44V4427/ 44V4428/44V6842 |
73.4 GB 15K RPM SAS SFF Disk Drive |
| 1885 |
42R6833/44V6831/ 44V6833/44V6838 |
300GB 10K RPM SFF SAS Disk Drive |
| 1886 |
44V6843/44V6845/ 44V6850 |
146GB 15K RPM SFF SAS Disk Drive |
| 1890/1909 |
58B0/44V6817/ 44V6821/44V8674 |
69GB SFF SAS Solid State Drive |
| 1917 |
146GB 15k RPM SAS SFF-2 Disk Drive (AIX/Linux) |
|
| 1925 |
300GB 10k RPM SAS SFF-2 Disk Drive (AIX/Linux) |
|
| 1964 |
600GB 10k RPM SAS SFF-2 Disk Drive (AIX/Linux) |
|
| 1995 | 58B2/43W7749 |
177GB SSD Module with eMLC (AIX/Linux) |
| 3586 | 58B0/44V6819/44V8673 | 69GB 3.5" SAS Solid State Drive |
| 3647 |
10N7203/10N7204/ 10N7232/42R4234 |
146 GB 15K RPM SAS Disk Drive |
| 3648 |
10N7207/10N7208/ 10N7234/42R5648 |
300 GB 15K RPM SAS Disk Drive |
| 3649 |
44V4432/44V4433/ 44V4438/44V4440 |
450 GB 15K RPM SAS Disk Drive |
| 4367 |
Bundle: 5 x #2055 and 20 x #1995 (AIX/Linux) |
|
| RAID卡 | ||
| 2054 |
43K6366/43K6367 /74Y6409 |
PCIe RAID & SSD SAS Adapter 3Gb |
| 5805 |
PCIe 380MB Cache Dual - x4 3Gb SAS RAID Adapter |
|
| 5903 |
574E/44V4198/ 44V7436/44V7597/ 74Y6124 |
PCIe 380MB Cache Dual - x4 3Gb SAS RAID Adapter |
| 5923 | Non-paired PCIe SAS RAID Indicator | |
| SCSI卡 | ||
| 5736 |
39J1643/39J2862/ 39J3536/39J4996/ 39J5022/42R4860/ 42R8736/44V5591/ 42R4362/52P8558 |
PCI-X DDR 2.0 Dual Channel Ultra320 SCSI Adapter |
| 5901 |
57B3/44V4852/ 44V8580/45K4732 |
PCIe Dual-x4 SAS Adapter |
| 网卡 | ||
| 5706 |
00G2380/00P4289/ 00P6131/03N5297/ 03N6070/53P5450/ 80P4024/80P7033 |
IBM 2-Port 10/100/1000 Base-TX Ethernet PCI-X Adapter |
| 5717 |
10N7405/10N8556/ 46Y3512 |
4-Port 10/100/1000 Base-TX PCI Express Adapter |
| 5732 |
45D4771/46K6696/ 46K7899 |
10 Gigabit Ethernet-CX4 PCIe (x8)Adapter |
| 5740 | 03N5444 |
4-Port 10/100/1000 Base-TX Ethernet PCI-X Adapter |
| 5767 |
10N6845/10N7405/ 46K6601 |
2-Port 10/100/1000 Base-TX Ethernet PCI Express Adapter |
| 5768 |
05H6768/10N6846/ 11P3847/12R9314/ 15R7536/46K6602 |
2-Port Gigabit Ethernet-SX PCI Express Adapter |
| 5769 |
05N6768/10N9505/ 11P3847/12R9314/ 46K7897 |
10 Gigabit Ethernet-CX4 PCIe (x8)Adapter |
| 5772 |
576E/05N6768/ 10N9034/11P3847/ 12R9314 |
10 Gigabit Ethernet-CX4 PCIe (x8)Adapter |
| 适配卡 | ||
| 2728 |
57D1/46K6692/ 46K7494 |
4 port USB PCIe Adapter |
| 4764 |
12R6540/12R6714/ 41U0441/41U0442 /41V0161 |
PCI-X Cryptographic Coprocessor (FIPS 4) |
| 4807 |
45D5803/45D6680/ 45D7948 |
PCIe Crypto Coprocessor No BSC 4765-001 |
| 4808 |
45D5803/45D6680/ 45D7948 |
PCIe Crypto Coprocessor Gen3 BSC 4765-001 |
| 5785 |
57D2/42R5143/ 46K6734/46K6735/ 6298965 |
4 Port Async EIA-232 PCIe Adapter |
| 显卡 | ||
| 5748 | 10N7756 |
POWER GXT145 PCI Express Graphics Accelerator |
| 光纤卡 | ||
| 5708 |
2B3B/05N6768/ 11P3847/12R9314/ 46K8088 |
10Gb FCoE PCIe Dual Port Adapter |
| 5713 |
03N6056/26K6490/ 30R5219/32R1926/ 46K7342/49Y4236 |
1 Gigabit iSCSI TOE PCI-X on Copper Media Adapter |
| 5735 |
577D/05N6768/ 10N9824/11P3847/ 12R9314/46C7006 |
8 Gigabit PCI Express Dual Port Fibre Channel Adapter |
| 5759 |
03N5027/03N5029/ 03N6768/10N8620/ 10N3847/12R9314 |
4 Gb Dual-Port Fibre Channel PCI-X 2.0 DDR Adapter |
| 5774 |
05N6768/10N7255/ 11P3847/12R9314/ 15R7536 |
4 Gigabit PCI Express Dual Port Fibre Channel Adapter |
| 电源 | ||
| 7708 |
Power Supply, 1700 Watt DC, Hot-swap, Base and Redundant |
|
| 7740 | 46K5673 |
Power Supply, 1725 Watt AC, Hot-swap, Base or Redunda |
| 光驱 | ||
| 5762 | 44V4219/44V4220 | SATA Slimline DVD-RAM Drive |
| 磁带机 | ||
| 5619 | 80/160GB DAT160 SAS Tape Drive | |
| 5638 | 46C2007 | 1.5TB/3.0TB LTO-5 SAS Tape Drive |
| 5661 | 46C1932/46C1933 | DAT320 160/320 GB Tape Drive |
| 5746 |
24R1922/35L2086/ 45E1126/45E1127/ 45E1129/95P4436/ 95P4450/96P1203 |
Half High 800GB/1.6TB LTO4 SAS Tape Drive |
| 磁带 | ||
| 5689 | 23R5635 | DAT160 Data Cartridge |
| 5747 |
IBM LTO Ultrium 4 800 GB Data Cartridge |
|
| 导轨 | ||
| 6586 | 10N7683/80P3263 | Modem Tray for 19-Inch Rack |
| 7841 | Ruggedize Rack Kit | |
| 线缆 | ||
| 1025 |
42R5087/43L6774/ 75G3801/87G6236 |
Modem Cable - US/Canada and General Use |
| 1111 | CAT5E Ethernet Cable, 3M BLUE | |
| 1112 | CAT5E Ethernet Cable, 10M BLUE | |
| 1113 | CAT5E Ethernet Cable, 25M BLUE | |
| 1115 | CAT5E Ethernet Cable, 3M GREEN | |
| 1116 | CAT5E Ethernet Cable, 10M GREEN | |
| 1117 | CAT5E Ethernet Cable, 25M GREEN | |
| 1118 | CAT5E Ethernet Cable, 3M YELLOW | |
| 1119 | CAT5E Ethernet Cable, 10M YELLOW | |
| 1121 | CAT5E Ethernet Cable, 25M YELLOW | |
| 1827 | 39J5836/97P4299 | 3m RIO to RIO-2 Cable |
| 1828 | 15R8139/45D2235 |
1.5 Meter 12X to 4X Channel Conversion Cable |
| 1829 | 41V0226/42V2129 | 0.6 Meter 12X Cable |
| 1830 |
41V0227/42R6153/ 42V3130 |
1.5 Meter 12X cable |
| 1834 |
39J5642/42R6157/ 42R6160 |
8.0 Meter 12X Cable |
| 1840 | 42V2132 | 3.0 Meter 12X Cable |
| 1841 | 15R8140/45D2236 |
3 Meter 12X to 4X Channel Conversion Cable |
| 1854 |
10 Meter 12X to 4X Enhanced Channel Conversion Cable |
|
| 1861 | 44V3421/45D4785 | 0.6 Meter 12X DDR Cable |
| 1862 | 44V3423/45D4786 | 1.5 Meter 12X DDR Cable |
| 1864 | 45D4788 | 8.0 Meter 12X DDR Cable |
| 1865 |
44V3426/45D2571/ 45D5271 |
3.0 Meter 12X DDR Cable |
| 1878 |
42R6067/42R6069/ 44V7190 |
Op Panel Cable for Rack-mount Drawer w/2.5" DASD |
| 2118 |
01K6497/07L9628/ 76H0518 |
Converter Cable VHDCI to P Mini-68 pin to 68 pin 0.3M |
| 2124 |
09L3299/36R2585/ 41Y0596 |
Ultra 320 SCSI Cable 1 Meter |
| 2125 |
09L3301/36R2576/ 41Y0597 |
Ultra 320 SCSI Cable 3 Meter |
| 2126 |
09L3303/36R2577/ 41Y0598 |
Ultra 320 SCSI Cable 5 Meter |
| 2127 |
09L0881/09L3305/ 36R2578/41Y0599 |
Ultra 320 SCSI Cable 10 Meter |
| 2128 |
09L3307/19P1904/ 36R2579/41Y0600 |
Ultra 320 SCSI Cable 20 Meter |
| 2138 | 41Y0601/42D9817 | 0.55 Meter Ultra 320 SCSI Cable |
| 2456 |
09P3044/11P1352/ 11P1373/12R9321 |
LC-SC 50 Micron Fiber Converter Cable |
| 2459 |
00P4023/11P1374/ 12R9322 |
LC-SC 62.5 Micron Fiber Converter Cable |
| 2861 |
07L8817/87H3404/ 87H3405/87H3406/ 87H3439/87H3568 |
ARTIC960Hx 4-Port EIA-232 Cable |
| 2863 |
53G0638/87H3407/ 87H3408/87H3409/ 87H3566 |
ARTIC960Hx 4-Port X.21 Cable |
| 2864 |
87H3398/87H3399/ 87H3400/87H3442/ 87H3565 |
ARTIC960Hx 4-Port V.35 (DTE Cable |
| 2934 |
10N6535/12H1204/ 40H0744/40H2206 |
Asynchronous Terminal/Printer Cable EIA-232 |
| 2936 |
30F9453/42R5206/ 53F3205/53F3662/ 6223741/6323741 |
Asynchronous Cable EIA-232/V.24 |
| 2951 |
33F8985/93H2899 /93H5263 |
Cable V.24 / EIA-232 |
| 2952 |
71F0163/93H2900/ 93H5264 |
Cable V.35 |
| 2953 |
73H2508/93H2901/ 93H5265 |
Cable V.36 / EIA-499 |
| 2954 |
40F9904/93H2902/ 93H5267 |
Cable X.21 |
| 3124 |
10N7158/88G4771/ 88G4853 |
Serial to Serial Port Cable for Drawer/Drawer |
| 3125 |
10N7159/88G4772/ 88G4854 |
Serial to Serial Port Cable for Rack/Rack |
| 3652 | 42R6762/44V4147 | SAS Cable (EE Drawer to Drawer 1M |
| 3653 | 42R6727/44V4148 | SAS Cable (EE) Drawer to Drawer 3M |
| 3654 | 42R6728/44V4149 | SAS Cable (EE) Drawer to Drawer 6M |
| 3656 | 95P4084 | SAS SFF Cable |
| 3657 | 42R5815/46K5450 | Right Angle SAS Tape Drive Cable |
| 3661 | 42R6742/44V4154 |
SAS Cable (X Adapter to SAS Enclosure Dual Controller/ Dual Path 3M |
| 3662 | 42R6743/44V4155 |
SAS Cable (X) Adapter to SAS Enclosure, Dual Controller/ Dual Path 6M |
| 3663 | 42R6744/44V4156 |
SAS Cable (X) Adapter to SAS Enclosure, Dual Controller/ Dual Path 15M |
| 3668 | 42R5751 |
SAS Cable, DASD Backplane to Rear Bulkhead |
| 3669 | 44V5252 |
SAS Cable, DASD Backplane (Split) to Rear Bulkhead |
| 3679 | 42R6751/44V4041 | SAS Cable (AI)-1M |
| 3681 | 44V4151/44V8231 | 3M SAS CABLE, ADPTR TO ADPTR (AA) |
| 3682 | 44V4152/44V8230 | 6M SAS CABLE, ADPTR TO ADPTR (AA) |
| 3684 | 42R8118/44V4163 |
SAS Cable (AE Adapter to Enclosure single controller/ single path 3M |
| 3685 | 42R8120/44V4164 |
SAS Cable (AE) Adapter to Enclosure, single controller/ single path 6M |
| 3686 | 42R6792/44V4161 |
SAS Cable (YI) System to SAS Enclosure, Single Controller/Dual Path 1.5M |
| 3687 | 42R6793/44V4162 |
SAS Cable (YI) System to SAS Enclosure, Single Controller/Dual Path 3M |
| 3688 | 44V5132 | SAS Cable (AT 0.6 Meter) |
| 3691 | 42R6788/44V4157 |
SAS Cable (YO Adapter to SAS Enclosure Single Controller/Dual Path 1.5 M |
| 3692 | 42R6789/44V4158 |
SAS Cable (YO) Adapter to SAS Enclosure, Single Controller/Dual Path 3 M |
| 3693 | 42R6790/44V4159 |
SAS Cable (YO) Adapter to SAS Enclosure, Single Controller/Dual Path 6 M |
| 3694 | 42R6791/44V4160 |
SAS Cable (YO) Adapter to SAS Enclosure, Single Controller/Dual Path 15 M |
| 3925 |
00P2165/23R4632/ 40H6328/40H6329 |
Serial Port Converter Cable 9-Pin to 25-Pin |
| 3926 | 00P2166 | Asynch Printer/Terminal Cable 9-pin to 25-pin 4M |
| 3927 | 10N7712 | Serial Port Null Modem Cable 9-pin to 9-pin 3.7M |
| 3928 | 10N7713 | Serial Port Null Modem Cable 9-pin to 9-pin 10M |
| 4242 |
07L9633/08L0491/ 42R4755 |
6 Foot Extender Cable for Displays (15 pin D-shell to 15 pin D-shell |
| 4256 |
00P2969/10N7374/ 32N1311/44P1375 |
Extender Cable - USB Keyboards 2M |
| 6001 | 00G1277/42F6839 | Power Control Cable (SPCN-2 meter) |
| 6006 |
09P1251/22R5239/ 93H8045 |
Power Control Cable (SPCN-3 meter) |
| 6007 |
21F9358/22R5221 /55F4533 |
Power Control Cable (SPCN 15 meter) |
| 6008 |
21F9469/22R5219/ 55F4532/74F0188 |
Power Control Cable (SPCN 6 meter) |
| 6029 | 21F9359/22R5222 | Power Control Cable (SPCN 30 meter) |
| 6458 |
Power Cable- Drawer to IBM PDU 14-foot 250V/10A |
|
| 6460 |
Power Cord (14-foot Drawer To OEM PDU (125V 15A Plug Type #4 |
|
| 6469 |
Power Cord (14-foot Drawer to OEM PDU (250V 15A United States Plug Type #5 |
|
| 6470 | Power Cord (6-foot To Wall (125V 15A Plug Type #4 | |
| 6471 |
Power Cord (9-foot To Wall/OEM PDU (125V 15A Plug Type #70 |
|
| 6472 |
Power Cord (9-foot To Wall/OEM PDU (250V 16A Plug Type #18 |
|
| 6473 |
Power Cord (9-foot To Wall/OEM PDU (250V 10A Plug Type 19 |
|
| 6474 |
Power Cord (9-foot) To Wall/OEM PDU (250V 13A) Plug Type #23 |
|
| 6475 |
Power Cord (9-foot) To Wall/OEM PDU (250V 16A) Plug Type #32 |
|
| 6476 |
Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #24 |
|
| 6477 |
Power Cord (9-foot) To Wall/OEM PDU (250V 16A) Plug Type #22 |
|
| 6478 |
Power Cord (9-foot) To Wall/OEM PDU (250V 16A) Plug Type #25 |
|
| 6479 |
Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #6 |
|
| 6487 |
Power Cord (6-foot To Wall (250V 15A United States Plug Type #5 |
|
| 6488 |
Power Cord (9-foot To Wall/OEM PDU (125V 15A or 250V 10A Plug Type #2 |
|
| 6493 |
Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #62 |
|
| 6494 |
Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #69 |
|
| 6495 |
Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #73 |
|
| 6496 |
Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #66 |
|
| 6497 |
Power Cord (6-foot) To Wall/OEM PDU (250V 10A) Plug Type #10 |
|
| 6498 |
Power Cord (6-foot) To Wall/OEM PDU (250V 15A) Plug Type #34 |
|
| 6651 |
Power Cord (9-foot To Wall/OEM PDU (125V 15A Plug Type #75 |
|
| 6659 |
Power Cord (9-foot To Wall/OEM PDU (250V 15A Plug Type #76 |
|
| 6660 |
Power Cord (14-foot Drawer To OEM PDU (125V 15A Plug Type #59 (DENAN marking |
|
| 6665 |
Power Cord 3 M (10 ft Drawer to IBM PDU 250V/10A |
|
| 6669 |
Power Cord (14-foot Drawer to OEM PDU (250V 15A Plug Type #57 (DENAN marking |
|
| 6670 |
Power Cord (6-foot To Wall (125V 15A Plug Type #59 (DENAN marking |
|
| 6671 | Power Cord (9-foot) Drawer to IBM PDU 250V/10A | |
| 6672 | Power Cord (5-foot) Drawer to IBM PDU 250V/10A | |
| 6680 |
Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #6 Insulated |
|
| 6687 |
Power Cord (6-foot) To Wall (250V 15A) Plug Type #57 (DENAN marking) |
|
| 7801 |
16R0449/41V0479 /52P7524 |
Ethernet Cable 6M Hardware Management Console to System Unit |
| 7802 |
05N5292/41V0143/ 52P7525 |
Ethernet Cable 15M Hardware Management Console to System Unit |
| 机壳 | ||
| 7840 | Side-by-Side for 1.8m Racks | |
| 其它 | ||
| 712 | Manufacturing Routing Code for CSC | |
| 1103 | 46C5370/46C5380 |
USB Internal Docking Station for Removable Disk Drive |
| 1104 |
39M5516/44E8889/ 44V3429/46C5381/ 46C5394/49Y9890 |
USB External Docking Station for Removable Disk Drive |
| 1106 | 46C5374/46C5375 | USB 160 GB Removable Disk Drive |
| 1107 | 46C5379/46C5395 | USB 500 GB Removable Disk Drive |
| 1108 |
04N2351/04N2567 /09L2576/09L2577/ 09L5276/09L5277/ 39J5596/45E0670/ 53P2650/95P1868/ 95P1869 |
Juniper EXP4200 Ethernet Switch |
| 1109 | IBM Ethernet Switch J48E | |
| 1114 | Smart Analytics System routing indicator | |
| 1140 |
Custom Service Specify, Rochester Minn, USA |
|
| 1406 |
14F1553/39M5279/ 39Y5565/40K9772 |
200V 16A 4.3m (14-Ft) TL Line Cord |
| 1413 | 125V 4.3m (14-Ft) Line Cord | |
| 1414 |
39M5115/41V1961/ 86G7878 |
200V 6-Ft Locking Line Cord |
| 1415 | 41V1966/73F4931 | 200V 1.8m (6-Ft) Watertight Line Cord |
| 1416 | 200V 14-Ft Locking Line Cord | |
| 1417 | 200V 4.3m (14-Ft) Watertight Line Cord | |
| 1418 |
14F1557/39M5291/ 40K9770 |
4.3m 200V/16A Power Cord S. Africa |
| 1419 |
14F1561/39M5311/ 40K9771 |
4.3m 200V/16A Power Cord Israel |
| 1420 |
14F1554/39M5383/ 40K9766 |
4.3m 200V/16A Power Cord EU/Asia |
| 1421 |
14F1555/36L8823/ 39M5323/40K9769 |
4.3m 200V/16A Power Cord CH/DK |
| 1424 |
11F0114/11F0117/ 11F0117/41V2004 |
200V 6-Ft Locking Line Cord |
| 1425 |
07H6891/23R3230/ 46F4593 |
200V 6-Ft Wtrtght Line Cord |
| 1426 |
11F0113/11F0115/ 41V2003 |
200V 14-Ft Locking Line Cord |
| 1427 | 23R3231/46F4594 | 200V 14-Ft Wtrtght Line Cord |
| 1439 | 13F99809/39M5124 | 4.3m 200V/10A Power Cord EU/Asia |
| 1440 | 13F9998/39M5131 | 4.3m 200V/10A Pwr Cd Denmark |
| 1441 | 14F0016/39M5145 | 4.3m 200V/10A Pwr Cd S Afric |
| 1442 | 14F0052/39M5159 | 4.3m 200V/10A Pwr Cd Swiss |
| 1443 | 14F0034/39M5152 | 4.3m 200V/10A Pwr Cd UK |
| 1449 | 21H7693 | 4.3m 200V/32A Power Cord EU 1-PH |
| 1450 | 21H7691 | 4.3m 200V/16A Pwr Cd EU 2-PH |
| 1451 | 14F1547/39M5261 | 200V (6-Ft) 1.8m Line Cord |
| 1452 | 14F1548/39M5263 | 200V 14-Ft Line Cord |
| 1453 | 14F1549/39M5273 | 200V 6-Ft Locking Line Cord |
| 1454 | 14F1550/39M5275 | 200V 12A 14-Ft TL Line Cord |
| 1455 |
14F1551/39M5313/ 86F2645 |
200V 6-Ft Wtrtght Line Cord |
| 1456 |
14F1552/39M5315/ 86F2646 |
200V (14-Ft) 4.3m Watertight Line Cord |
| 1457 | 12J5120/39M5262 | 200V 6-Ft (1.8mUpper Line Cord |
| 1458 | 12J5119/39M5274 | 200V 6-Ft (1.8mUpper Locking Cord |
| 1459 | 93M5314/55H6644 | 200V 6-Ft Upper Wtrtght Cord |
| 1476 |
12J5988/39M5295/ 40K9767 |
4.3m/200V/12A Pwr Cd UK |
| 1477 | 4.3m 200V/16A Pwr Cd | |
| 2145 | 21H8079 | Primary OS - IBM i |
| 2146 | 44H6111 | Primary OS - AIX |
| 2147 | Primary OS - Linux | |
| 3632 | Widescreen LCD Monitor | |
| 3637 |
04N7526/04N7527/ 04N7532/13F9959/ 31P7507/31P7509/ 31P7511/31P7513/ 31P7515 |
IBM T541H /L150p 15" TFT Color Monitor |
| 3639 |
13F9959/31P9575/ 31P9577/31P9584/ 31P9587/31P9590/ 73P0261 |
L180P TFT 17" Color Display |
| 3640 | L171P TFT 17" Black Display | |
| 3641 |
40K7317/40K5341/ 73P4360 |
T115 TFT 15" Color Display |
| 3642 | ThinkVision L191p Flat Panel Monitor | |
| 3644 | IBM T119 Flat Panel Monitor | |
| 3645 | 39Y9919/40k5342 | IBM T117 Flat Panel Monitor |
| 4276 |
04N7533/09N3435/ 25R9043 |
VGA to DVI Connection Converter |
| 4650 | Rack Indicator-Not Factory Integrated | |
| 4651 | Rack Indicator, Rack #1 | |
| 4660 | Rack Indicator, Rack #10 | |
| 4661 | Rack Indicator, Rack #11 | |
| 4662 | Rack Indicator, Rack #12 | |
| 4663 | Rack Indicator, Rack #13 | |
| 4664 | Rack Indicator, Rack #14 | |
| 4665 | Rack Indicator, Rack #15 | |
| 4666 | Rack Indicator, Rack #16 | |
| 5000 | Software Preload Required | |
| 5001 | Customer Solution Center | |
| 5002 |
07H9163/07H9163/ 31H3140/31H3140 |
AS/400 CDSC - Rochester Mfg |
| 5524 |
RFID TAGS FOR SERVERS, BLADES, BLADECENTERS, RACKS, AND HMCS |
|
| 5550 | Sys Console On HMC | |
| 5553 | Sys Console-Ethernet No IOP | |
| 5786 | TotalStorage EXP24 Disk Dwr | |
| 5787 | TotalStorage EXP24 Disk Twr | |
| 5796 | PCI-DDR 12X Expansion Drawer | |
| 5802 | 12X I/O Drawer PCIe, SFF disk | |
| 5877 | 12X I/O Drawer PCIe, No Disk | |
| 5887 | EXP24S SFF Gen2-bay Drawer | |
| 5959 |
Full Width Quiet Touch Keyboard -- USB, Hungarian, #208 |
|
| 5983 | USB Keybd-US English Euro | |
| 6068 | Opt Front Door for 1.8m Rack | |
| 6069 | Opt Front Door for 2.0m Rack | |
| 6248 | 12R8349/44V0103 | 1.8m Rack Acoustic Doors |
| 6249 | 2.0m Rack Acoustic Doors | |
| 6263 | 1.8m Rack Trim Kit | |
| 6272 | 2.0m Rack Trim Kit | |
| 6492 | 4.3m (14-Ft) 1PH/48-60A Pwr Cord | |
| 6577 |
Power Cable - Drawer to IBM PDU, 200-240V/10A |
|
| 6580 | 41V0489 | Optional Rack Security Kit |
| 7118 | Environmental Monitoring Probe | |
| 7204 | Quantity 150 of #2124 | |
| 7205 | Quantity 150 of #2125 | |
| 7206 | Quantity 150 of #2126 | |
| 7207 | Quantity 150 of #2127 | |
| 7208 | Quantity 150 of #2128 | |
| 7213 | Quantity 150 of #2138 | |
| 7305 | SDI Software Pre-Install Indicator | |
| 7307 | Dual I/O Unit Enclosure | |
| 7314 | Dual 5796 Unit Enclosure | |
| 7780 | 2.0m Rack Side Attach Kit | |
| 7793 | PowerVM Express | |
| 7794 | PowerVM Standard | |
| 7795 | PowerVM Enterprise | |
| 8143 | Linux Software Preinstall | |
| 8144 | Linux Software Preinstall (SDIs) | |
| 8340 | 74Y2244 |
Enhanced DASD/Media Backplane for 2.5" DASD/SATA DVD/ Tape with External SAS Port |
| 9300 | Language Group Specify - US English | |
| 9359 | specify mode-1 1(1)5901/5278 for EXP24S #5887 | |
| 9360 | Specify mode-1 1(2)5901/5278 for EXP24S #5887 | |
| 9361 | Specify mode-2 1(2)5901/5278 for EXP24S #5887 | |
| 9365 | Specify mode-4 1(4)5901/5278 for EXP24S #5887 | |
| 9366 | -Specify mode-2 1(4)5901/5278 for EXP24S #5887 | |
| 9367 | -Specify mode-1 1(2)5903/5805 for EXP24S #5887 | |
| 9368 | Specify mode-2 1(4)5903/5805 for EXP24S #5887 | |
| 9382 | Specify mode-1 1(1)5904/6/8 for EXP24S #5887 | |
| 9383 | Specify mode-1 1(2) 5904/6/8 for EXP24S #5887 | |
| 9384 | Specify mode-1 & CEC SAS port for EXP24 #5887 | |
| 9440 | New AIX License Core Counter | |
| 9441 | New IBM i License Core Counter | |
| 9442 | New Red Hat License Core Counter | |
| 9443 | New SUSE License Core Counter | |
| 9444 | Other AIX License Core Counter | |
| 9445 | Other Linux License Core Counter | |
| 9446 | 3rd Party Linux Core Counter | |
| 9447 | VIOS Core Counter | |
| 9461 | Month Indicator | |
| 9462 | Day Indicator | |
| 9463 | Hour Indicator | |
| 9464 | Minute Indicator | |
| 9465 | Qty Indicator | |
| 9466 | Countable Member Indicator | |
| 9666 |
POWER7 Tivoli Storage Manager Specify |
|
| ERA5 |
Rational Appliance Cobol Solution Tracking Code |
|
| ERA6 |
Rational Appliance C/C++ Solution Tracking code |
|
