| 整机信息 | |

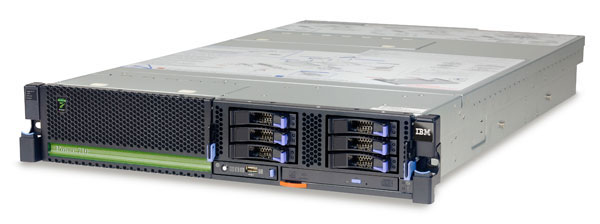

| 名称 | IBM Power 710 Express (8231-E1C) |
| 型号 | 8231-E1C |
| 品牌 | IBM |
| 类型 | 小型机 |
| CPU信息 | 4-core, 6-core, and 8-core processor modules |
| CPU类型 | Power 7 |
| CPU插槽数 | 1 |
| CPU激活 | 需要激活 |
| 机架类型 | 机架式 |
| 机架空间 | 2U |
| 硬盘信息 |
Six disk/solid-state drive (SSD) SAS SFF (small form-factor) bays -- up to 3.6 TB |
| 最大硬盘数量 | 六个 |
| 内存提示 |
4 GB, 8 GB, 16 GB, or 32 GB of 1066 MHz DDR3 ECC memory |
| 支持内存容量范围 | 最大支持128GB |
| 内存插槽数量 | 4,可选内存扩展卡，最多8个。 |
| 内存是否需要激活 |
内存的容量不需要激活， Active Memory Expansion 是从POWER7开始支持的一项新的 内存虚拟技术，需要激活码。 Option (4795)-Power Active Memory Expansion Enablement |
| 电源描述 | 标配单电源，可升级为冗余双电源。 |
| 单机电源数量 | 2 |
| 介质托架 | 细缆DVD，磁带机托架 |
| 适配器插槽 | 5个PCIe G2 Low Profile插槽，2个1GbE或4个1Gbe网口。 |
| 端口 | |
| IO适配器 | |
| IO扩展 | |
| 发布日期 | 2011/1/21 |
| 下架日期 | |
| 服务截止期 | |
| 操作系统 |
AIX, IBM i, or Linux operating systems and solutions from thousands of ISVs |
| 产品尺寸 |
Width: 440 mm (19.0 in), Depth: 706 mm (27.8 in), Height: 89 mm (3.5 in). |
| 产品重量 | 满配28.2 kg (62 lbs) |
| FC号 | PN号 | 描述 |
| CPU | ||
| 543A/74Y8610 | 6-core 3.72 GHz processor module | |
| 543B/74Y8616 | 4-core 3.72 GHz processor module | |
| 543C/74Y8613 | 8-core 3.55 GHz processor module | |
| 544A/74Y8607 | 4-core 3.0 GHz processor module | |
| 系统板 | ||
| 2B4A/00E1768 |
System backplane (contains two processor modules) |
|
| 2B4B/00E1765 |
System backplane (contains one processor module) |
|
|
2BE3/74Y1959/ 00E0635 |
Memory card assembly | |
| 52DC/00E0940 | System VPD card | |
| 内存 | ||
| 31F3/78P0554 | 4 GB, 1066 MHz DDR3 DIMM | |
| 31F4/78P0555 | 8 GB, 1066 MHz DDR3 DIMM | |
| 31F5/78P0639 | 16 GB, 1066 MHz DDR3 DIMM | |
| 31F8/78P1011 | 2 GB, 1066 MHz DDR3 DIMM | |
| 硬盘 | ||
| 19A1/74Y6495 |
283 GB 15K small form factor SAS disk drive |
|
| 19A3/74Y4897 |
571 GB 10K small form factor SAS disk drive (IBM® i) |
|
| 19A4/74Y9271 |
857 GB 10K small form factor SAS disk drive (IBM i) |
|
|
58B3/74Y5293/ 74Y5294 |
177 GB small form factor solid-state SAS drive for 9117-MMC, 9117-MMD, 9179-MHC, or 9179-MHD. |
|
| 58B8/74Y9524 |
387 GB small form factor solid-state SAS drive |
|
| 58B9/74Y9526 |
387 GB small form factor solid-state SAS drive |
|
| 74Y4900 |
600 GB 10K small form factor SAS disk drive |
|
| 74Y6496 |
300 GB 15K small form factor SAS disk drive |
|
| 74Y9272 |
900 GB 10K small form factor SAS disk drive |
|
| 1885 |
42R6833/44V6831/ 44V6833/44V6838 |
300GB 10K RPM SFF SAS Disk Drive |
| 1886 |
44V6843/44V6845/ 44V6850 |
146GB 15K RPM SFF SAS Disk Drive |
| 1888 |
198C/44V6844/ 00E6166 |
139 GB 15K small form factor SAS disk drive, IBM® i |
| 1911 | 198D/74Y4896 |
283GB 10K RPM SFF SAS Disk Drive (IBM i) |
| 1995 | 58B2/43W7749 |
177GB SSD Module with eMLC (AIX/Linux) |
| 硬盘背板 | ||
|
2BD7/74Y3352/ 74Y2023 |
Disk drive and media backplane (supports six disk drives and one DVD drive) |
|
| 5263 |
2BE7/74Y3355/ 74Y2024 |
Storage Backplane -- 3 SFF Drives/SATA DVD/HH Tape |
| RAID卡 | ||
|
2B4C/00E0663 /00E0665 |
RAID and cache storage controller |
|
| 适配卡 | ||
| 2B4D/74Y4116 |
GX book assembly, Double-wide GX adapter |
|
|
2BCF/44V8361/ |
Cache battery card | |
| 2C1F/74Y3388 | PCIe x8 GX adapter | |
| 2D1E/00E0980 | Interposer card assembly | |
| 74Y3755 | SPCN cable assembly | |
| 5615 |
2BDA/00E0646/ |
GX book assembly(CCIN:2BDA) with 00E1088(CCIN:2C1E) GX adapter |
| 电源 | ||
|
2B46/74Y9082/ 00E7187 |
Power supply assembly | |
| 稳压模块 | ||
| 2B4E/00J0252 | Processor VRM | |
| 电池 | ||
| 44V4359/74Y9628 | Time-of-day battery | |
| 74Y6773 |
Cache battery pack for cache battery card and RAID and cache storage controller |
|
| 磁带机 | ||
| 5673 | 46C1933/46K7434 | DAT320 160 GB USB Tape Drive |
| 风扇 | ||
| 6B1E/74Y5222 | 60 mm fan assembly | |
| 74Y3353/74Y6275 | Fan cage assembly (front) | |
| 74Y7421 | Heat sink | |
| 导轨 | ||
|
00E5669/59Y4919/ 49Y5312 |
Slide rail assembly with 49Y5312 Attaching screw for slide rail assembly |
|
| 46K6257 | Rail kit (includes two slides) | |
| 线缆 | ||
| 46K5849 | Internal SAS port cable | |
| 46K7435 | USB internal cable for tape drive | |
| 74Y6761 |
SAS power and logic cable for tape drive |
|
| 其它 | ||
|
2BCD/74Y5481/ 74Y3964 |
Control panel assembly | |
| 74Y7205 | Interlock switch | |
| 74Y9063 | Cable management arm assembly | |
| 1123 | 46K7434 |
Internal power cable for tape drive |
