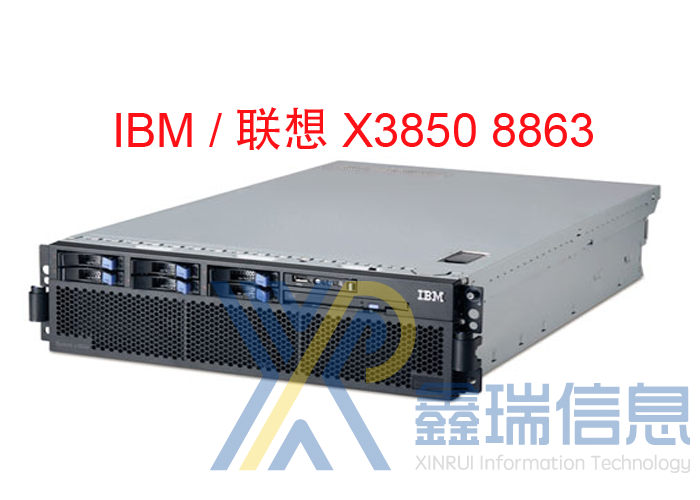

IBM X3850 8863

8863是IBM X3850第一代的服务器,是X3850较早期的服务器型号,支持4颗CPU和64G内存,欲了解更多IBM X3850系列服务器的信息,请咨询广州鑫瑞信息

品牌:IBM

系列:X3850系列

CPU:英特尔至强系列

支持CPU个数:4个

支持最大内存:64G

支持最大硬盘容量:300GB

机身高度:4U

商品价格:2500元

上架时间:18-10-24

上一篇:IBM/联想 X3650 M4(7915)多少钱_配置参数_X3650 M4系列服务器最新价格

下一篇:IBM X3850 M2(7141)多少钱_配置参数_IBM X3850系列服务器最新价格

  • 产品描述
  • 相关产品
  • 相关配件

联想/IBM服务器 X3850 整机信息
名称 IBM System x3850 and xSeries x366
型号 8863
品牌 IBM
类型 PC服务器
CPU信息 64-bit Intel® Xeon™ Processor MP at up to 3.66Ghz/supports Intel® Extended Memory 64 Technology.
CPU类型 Xeon MP
CPU插槽数 4
CPU激活 不需要激活
机架类型 机架式
机架空间
硬盘信息 最大硬盘容量: 440.4GB
最大硬盘数量 6
内存提示 DDR2
支持内存容量范围 最大内存容量: 64GB
内存插槽数量
内存是否需要激活 不需要激活
电源描述 电源电压: 220V ; 电源功率: 1300W
单机电源数量 2
介质托架 DVD/CD-RW Combo:24X Max
适配器插槽 两个PCI-X 2.0/266 MHz 和四个PCI-Express x8
端口 2 RJ-45、2 个串口、2 个 USB 2.0(后面)、1 USB (front)、鼠标、Video、键盘
发布日期
下架日期
服务截止期
操作系统 Microsoft Windows Server 2003 (32 位和 x64 的 Standard 和 Enterprise 版)、 Red Hat Linux、 SUSE Linux、 Microsoft Windows 2000、 VMware ESX Server
产品尺寸 128.4×442×701mm
产品重量 最大37.6Kg


FC号 PN号 描述
CPU
  41Y5005 Dual Core X3 Upgrade Kit2
346 13M7421/13N0694/13N0694 3.16GHz 667MHz 1M L2 Cache, 0M L3 Cache 11Y, 1RY, 1TY, E4Y,13Y
347 13M7423/13N0695/40K2520 3.66GHz 667MHz 1M L2 Cache, 0M L3 Cache 21Y, 2RY, 2TY, E1Y, 12Y, 1SY,
381 13M7422/13N0694/40K2521 Additional 3.16GHz 667MHz 1M L2 Cache, 0M L3 Cache
384 13M7424/13N0695/40K2520 Additional 3.66GHz 667MHz 1M L2 Cache, 0M L3 Cache
444 31R3776/25R8941 Addl Dual-Core Intel Xeon Processor 7020 (2.6GHz 667MHz 2x1MB L2)
445 25R8942/31R3778/40K2523 Addl Dual-Core Intel Xeon Processor 7040 (3.0GHz 667MHz 2x2MB L2)
651 31R3775/40K2522 Dual-Core Intel Xeon Processor 7020 (2.67GHz 667MHz 2x1MB L2) -
652 31R3777 Dual-Core Intel Xeon Processor 7040 (3.0GHz 667MHz 2x2MB L2) -
系统板
  13M7409/41Y5000 4-DIMM DDR2 Memory Card
4338 39R9502/41Y5000 4-DIMM DDR2 Memory Card
内存
  30R5145 8GB (2x4GB kit) PC2-3200 CL3 ECC DDR2 Chipkill SDRAM RDIMM
  39M5809 2GB (2x1GB Kit) PC2-3200 CL3 ECC DDR2 SDRAM RDIMM (512Mb)
  39M5812/73P2867 4GB (2x2GB Kit) PC2-3200 Dual Rank CL3 ECC DDR2 SDRAM RDIMM
504 73P2874/73P2866 1GB PC2-3200 CL3 ECC DDR2 SDRAM RDIMM
硬盘
  26K5654 36GB 2.5" 10K RPM SAS Hot-Swap HDD
  26K5655 73GB SAS 2.5" 10K RPM SAS Hot-Swap HDD
  40K1052/39R7366 73GB 10K 2.5" Hot-Swap SAS HDD
  42D0617 IBM 146GB 10K 6Gbps SAS 2.5” SFF HS HDD
5158 40K1083/40K1051 36GB 10K 2.5" Hot-Swap SAS HDD
5199 42D0654/42D0652 IBM 146GB 15K 6Gbps SAS
5509 42D0612/42D0613/42D0614 IBM 300GB 10K 6Gbps SAS
5534 43X0824/43X0825/43X0826 146GB 10K 2.5" Hot-Swap SAS HDD
5543 43X0841/43X0837/43X0839 73GB SAS 15K 2.5" SFF HS
RAID卡
1654 02R0995/32P0033 ServeRAID-6M Ultra 320 SCSI
1672 13N2227/25R8123/39R8729/39R8731 ServeRAID 8i SAS RAID Controller
1685 32P0033/39R8819/39R8815 IBM ServeRAID-6M Ultra320 SCSI Controller (128MB Cache)
1686 02R0988/39R8820/39R8816 IBM ServeRAID-6M Ultra320 SCSI Controller (256MB Cache)
SCSI卡
  13N2249 IBM Ultra320 SCSI Controller 2
1680 39R8752/39R8743 Ultra320 SCSI Controller 2
网卡
  30R5001 IBM 10 GbE SR Server Adapter
1478 39Y6082/39Y6079 NetXtreme 1000 T + Ethernet Adapter- PCI-X
1486 39Y6101/39Y6098 NetXtreme 1000 Express G Ethernet Adapter
1487 39Y6091/39Y6088 NetXtreme 1000 S + Ethernet Adapter
1488 31P9601/39Y6108/39Y6105 PRO/1000 GT Server Adapter by Intel
1489 39Y6096/39Y6093 NetXtreme 1000 T + Dual Port Ethernet Adapter-PCI-X
2974 39Y6138/39Y6139/39Y6136 PRO/1000 PT Quad Port Server Adapter
2978 42C1762/42C1763/42C1760 IBM 10 GbE PCIe SR Server Adapter
适配卡
  73P2701 PRO/1000 MT Dual Port Server Adapter by Intel
  73P4001 NetXtreme 1000 SX+ Ethernet Adapter-PCI-X
  73P4101 NetXtreme 1000+ Server Adapter
1579 73P5105/73P5101 PRO/1000 GT Dual Port Server Adapter by Intel-PCI-X
1580 73P5205/73P5201 PRO/1000 GT Quad Port Server Adapter by Intel-PCI-X
1605 39Y9567/39Y9566/73P9341 Remote Supervisor Adapter II Slimline
1606 39R9504 Remote Supervisor Adapter II Slimline - - Dedicated connector
2622 172641X FC SAS Single Controller DS3400
2623 172642X FC SAS Dual Controller DS3400
2975 42C1752/42C1753/42C1750 PRO/1000 PF Server Adapter Half x4 PCIe by intel.
光纤卡
  13N1873 IBM SMB 2-Gbps Fibre Channel HBA
  39M5894 DS4000 FC 4Gbps - PCI-X Single Port HBA
  39M5895 DS4000 FC 4Gbps - PCI-X Dual Port HBA
电源
  13M7413/41Y5001 1300w Hot-Swap Redundant Power Supply
  21303RX IBM UPS 7500Xhv
  21304RX IBM UPS 10000Xhv
  39Y8857 IBM UPS 3U Online Battery Pack
光驱
  39R7508 Thinkpad 24x/24x CD-RW / DVD Combo V Ultrabay Enhanced
  39Y6824 IBM CD-RW/DVD Combo Ultrabay Enhanced Drive
  73P3275 Thinkpad 24x/24x CD-RW V Ultrabay Enhanced
4143 32R2901/43W8304 Multi-Burner Ultrabay Enhanced Drive
4144 32R2784 CD-RW/DVD Combo V Ultrabay Enhanced - CD Bay
磁带机
  33614LX IBM LTO3 4U Tape Library2, 7 - Ultra160
  33622LX LTO Gen 3 2U Autoloader - Ultra160
  3573-xxx IBM System Storage TS3100/TS3200 Tape Library (all models)
  3580-xxx IBM TotalStorage Ultrium3 3580 Tape Drive (all models)
  3583-xxx IBM Ultrium3 Scalable Tape
  4559FHX IBM 2U Full High Stand Alone SCSI Tape Drive
  87651UX 1U Tape Drive Enclosure
  87664UX IBM 4U Rackmount Tape Enclosure
  8768FHX IBM Full High Tabletop Tape Enclosure
  87691VX 1U VXA-320 Tape Autoloader
5362 39M5624/25R0045 160/320GB VXA3 Tape VXA 3 Half High Internal Back-up 2 SCSI 89mm
5364 39M5621/39M5658 IBM Half High LTO Gen 2 Tape Drive 2 SCSI 89mm
5365 42C3932/39M5657 400/800GB LTO3 Tape
线缆
  10K3661 USB to Serial Cable
其它
  17101xx IBM TotalStorage DS4000 EXP100 Storage Expansion Unit (all models)
  172260U DS4300 Midrange Disk (60U)
  17226LU DS4300 Midrange Disk (6LU)
  17226xx IBM TotalStorage DS4300 Midrange Disk Systems (all models)
  17241xx IBM TotalStorage DS4100 Midrange Disk
  17351GX IBM Local 2x8 Console Manager (LCM2)
  17351LX 1x4 port Console Switch
  17352GX IBM Global 2x16 Console Mngr(GCM2)
  17352LX 2x8 port Console Switch
  17353LX IBM 1 x 8 Console Switch
  17354GX Global 4x16 Console Mngr (GCM4)
  17354LX IBM 2 x 16 Console Switch
  17401xx IBM TotalStorage DS4000 EXP700 Expansion Unit (all models)
  17429xx IBM TotalStorage DS4500 Midrange Disk System (all models)
  24P82xx IBM Total Storage DS4300 Model 60U with
  39Y8941 IBM Enterprise C13 PDU
  39Y8948 IBM Enterprise C19 PDU
  39Y8999 32A/230V 3P w/IEC309 3P+N+Gnd Conn
  40K1692 IBM External USB Floppy Drive
  4764-001 IBM 4764 model 001 Cryptographic Coprocessor, FIPS 140-2 level 4 compliant
  73P5847 DPI 60A/208v 3-Phase High Density C19 PDU w/IEC309 3P+Gnd Connector
5300 23K4959/05K9276 IBM USB Portable Diskette Drive
8800 02R3206/25R6968 Preferred Pro Full Size Keyboard - PS/2
8904 02R3486/90P0742 IBM ScrollPoint 800 DPI Optical Mouse - USB & PS/2
8908 13M7124/90P0743 IBM Optical Wheel Mouse - USB
