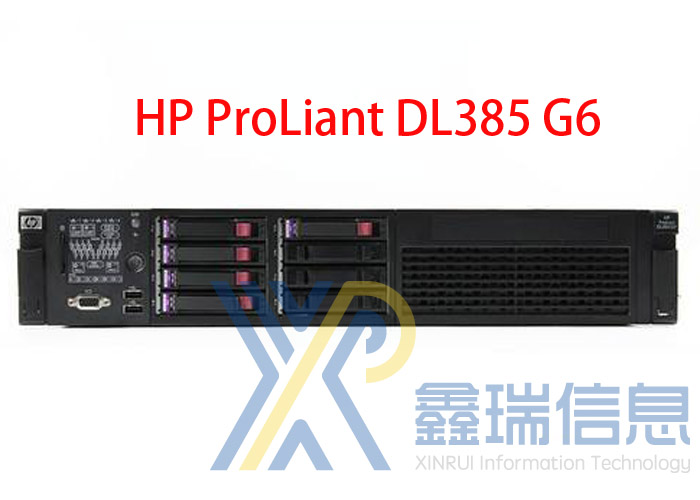

HP ProLiant DL385 Gen6具有更高的弹性与效能、企业级的开机运作时间与管理能力、双插座 Intel Xeon 效能以及 2U 密度，可供多种应用软件使用，持续展现固有的出色工程技术,欲了解更多DL385系列服务器的整机和配件，请咨询广州鑫瑞信息
| 整机信息 | |
| 名称 | HP ProLiant DL385 G6 Server series |
| 型号 | |
| 品牌 | HP |
| 类型 | PC服务器 |
| CPU信息 | 多路处理器 2 |
| CPU类型 | AMD皓龙 |
| CPU插槽数 | 2 |
| CPU激活 | 不需要激活 |
| 机架类型 | 机架式 |
| 机架空间 | 2U |
| 硬盘信息 | 存储类型：热插拔2.5英寸SAS/SATA；热插拔3.5英寸SAS/SATA。 |
| 最大硬盘数量 | 16 |
| 内存提示 | 内存类型：PC2-6400 (800 MHz) |
| 支持内存容量范围 | 最大 128 GB |
| 内存插槽数量 | 16 |
| 内存是否需要激活 | 不需要激活 |
| 电源描述 | 高性能型号标配冗余电源；入门级和基本型号为可选 |
| 单机电源数量 | 2 |
| 介质托架 | 1 个可拆卸介托架 |
| 适配器插槽 | 6个PCI插槽 － 可选的PCI-X/PCI-Express、x16 PCI或双端口10GbE riser |
| 端口 | 6个PCI插槽 － 可选的PCI-X/PCI-Express、x16 PCI或双端口10GbE riser |
| 发布日期 | |
| 下架日期 | 2010/11/23 |
| 服务截止期 | |
| 操作系统 | Microsoft Windows Server; Microsoft Windows Server Hyper-V; Red Hat Enterprise Linux (RHEL); SUSE Linux Enterprise Server (SLES); Oracle Enterprise Linux (OEL); Solaris; VMware |
| 产品尺寸 | (高x 宽x 长) (带支架) 8.59 x 44.54 x 69.98 cm |
| 产品重量 | 最大27.22kg |
HP ProLiant DL380 Gen6服务器的相关配件清单>>>>>>>
| 配件信息 | ||
| FC号 | PN号 | 描述 |
| CPU | ||
| 570113-B21 | AMD Opteron™ Processor 2435 (2.6 GHz, 75 Watts) Kit | |
| 570113-L21 | HP DL385 G6 AMD Opteron™ 2435 (2.60GHz/6-core/6MB/75W) FIO Processor Kit | |
| 570115-B21 | AMD Opteron™ Processor 2431 (2.4 GHz, 75 Watts) Kit | |
| 570115-L21 | HP DL385 G6 AMD Opteron™ 2431 (2.40GHz/6-core/6MB/75W) FIO Processor Kit | |
| 570117-B21 | AMD Opteron™ Processor 2427 (2.2 GHz, 75 Watts) Kit | |
| 570117-L21 | HP DL385 G6 AMD Opteron™ 2427 (2.20GHz/6-core/6MB/75W) FIO Processor Kit | |
| 570119-B21 | HP DL385 G6 AMD Opteron™ 2425HE (2.10GHz/6-core/6MB/55W) Processor Kit | |
| 570119-L21 | HP DL385 G6 AMD Opteron™ 2425HE (2.10GHz/6-core/6MB/55W) FIO Processor Kit | |
| 内存 | ||
| 408855-B21 | 16 GB REG PC2-5300 2 x 8 GB Kit | |
| 462967-B21 | HP 512MB P-Series Battery Backed Write Cache Upgrade | |
| 462968-B21 | HP 256MB P-series Cache Upgrade | |
| 495605-B21 | 64 GB REG PC2-5300 8 x 8 GB Kit | |
| 497765-B21 | 4 GB REG PC2-6400 2 x 2 GB Kit | |
| 497767-B21 | 8 GB REG PC2-6400 2 x 4 GB Kit | |
| 504351-B21 | 8 GB REG PC2-6400 2 x 4 GB Low Power Kit | |
| 534108-B21 | HP 256MB Factory Integrated P-Series Cache Module | |
| 534562-B21 | HP 1GB Flash Backed Cache | |
| 534916-B21 | HP 512MB Flash Backed Write Cache | |
| 硬盘 | ||
| 454146-B21 | HP 1TB 3G 7,200 RPM Hot-swap Midline (MDL) Serial ATA (SATA) 1-year Warranty 3.5-inch Hard Disk Drive | |
| 458924-B21 | HP 120GB 1.5G SATA 5.4K rpm SFF (2.5-inch) Entry 1 year Warranty Hard Drive | |
| 458928-B21 | HP 500GB 3Gb/s SATA hard drive disk - 7,200 RPM, 3.5-inch form factor | |
| 458945-B21 | HP 160GB 3G SATA 7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive | |
| 460355-B21 | HP 250GB 3G SATA 5.4K rpm SFF (2.5-inch) Entry 1 year Warranty Hard Drive | |
| 507125-B21 | HP 146GB 6G SAS 10K SFF (2.5-inch) Dual Port Enterprise 3 year Warranty Hard Drive | |
| 507127-B21 | HP 300GB 6G SAS 10K SFF (2.5-inch) Dual Port Enterprise 3 years Warranty Hard Drive | |
| 507610-B21 | HP 500GB 6G SAS 7.2K rpm SFF (2.5inch) Midline 1 year Warranty Hard Drive | |
| 507614-B21 | HP 1TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1 year Warranty Hard Drive | |
| 507616-B21 | HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1 year Warranty Hard Drive | |
| 507632-B21 | HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1 year Warranty Hard Drive | |
| 507750-B21 | HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1 year Warranty Hard Drive | |
| 512545-B21 | HP 72GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise Hard Drive | |
| 512547-B21 | HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise Hard Drive | |
| 516814-B21 | HP 300GB 6Gb/s Serial Attached SCSI (SAS) hard drive - 15,000 RPM, 3.5-inch form factor | |
| 516816-B21 | HP 450GB 6Gb/s Serial Attached SCSI (SAS) hard drive - 15,000 RPM, 3.5-inch form factor | |
| 516828-B21 | HP 600GB 6Gb/s Serial Attached SCSI (SAS) hard drive - 15,000 RPM, 3.5-inch form factor | |
| 530888-B21 | HP 160GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1 year Warranty Hard Drive | |
| 570761-B21 | HP 60TB 6G SATA 7.2K rpm LFF (3.5-inch) Midline 1 year Warranty Solid Sate Hard Drive | |
| 570763-B21 | HP 120TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1 year Warranty Solid Sate Hard Drive | |
| 571230-B21 | HP 250TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1 year Warranty Entry Hard Drive | |
| 572071-B21 | HP 60GB 3G SATA SFF (2.5-inch) Midline 1yr Warranty Solid State Drive | |
| 572073-B21 | HP 120GB 3G SATA SFF (2.5-inch) Midline 1yr Warranty Solid State Drive | |
| 581284-B21 | HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive | |
| 581286-B21 | HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive | |
| SCSI卡 | ||
| AH627A | HP U320e SCSI Dual Channel Host Bus Adapter | |
| 网卡 | ||
| 409376-B21 | HP NC360T PCI Express Dual Port Gigabit Server Adapter | |
| 435508-B21 | HP NC364T PCI Express Quad Port Gigabit Server Adapter | |
| 458492-B21 | HP NC382T PCI Express Dual Port Multifunction Gigabit Server Adapter | |
| 468332-B21 | HP NC522SFP Dual Port 10GbE Gigabit Server Adapter | |
| 503746-B21 | HP NC112T PCI Express Gigabit Server Adapter | |
| 516937-B21 | HP10 GbE PCI-e G2 Dual Port Network Adapter | |
| 538696-B21 | HP NC375T PCI Express Quad Port Gigabit Server Adapter | |
| 581201-B21 | HP NC550SFP Dual Port 10GbE Server Adapter | |
| 593722-B21/593743-001 | HP NC365T 4-port Ethernet Server Adapter | |
| 适配卡 | ||
| 394791-B21 | HP NC373T PCI Express Multifunction Gigabit Server Adapter | |
| 394793-B21 | HP NC373F PCI Express Multifunction Gigabit Server Adapter | |
| 412648-B21 | HP NC360T PCI Express Dual Port Gigabit Server Adapter | |
| 412911-B21 | HP SC11Xe Host Bus Adapter | |
| 448397-B21 | HP IB 4X DDR PCI-e Dual Port HCA | |
| 468406-B21 | HP 24 Bay 3Gb SAS Expander Card | |
| 483513-B21 | HP IB 4X DDR PCI-e Dual Port 0 Memory HCA | |
| 488765-B21 | HP SC08Ge Host Bus Adapter | |
| 572531-B21 | HP Smart Array P411/1G FBWC 2-ports Ext PCIe x8 SAS Controller | |
| 572532-B21 | HP Smart Array P410/1G FBWC 2-ports Int PCIe x8 SAS Controller | |
| 578229-B21 | HP Smart Array P411/512 FBWC 2-ports Ext PCIe x8 SAS Controller | |
| 578230-B21 | HP Smart Array P410/512 FBWC 2-ports Int PCIe x8 SAS Controller | |
| 614988-B21 | HP Modular Smart Array SC08e 2-ports Ext PCIe x8 SAS Host Bus Adapter | |
| AW520A | HP StorageWorks CN1000E Dual Port Converged Network Adapter | |
| 光纤卡 | ||
| A8002A | HP StorageWorks FC2142SR PCI Express 4Gb Host Bus Adapter | |
| A8003A | HP StorageWorks FC2242SR Dual Channel 4 Gb PCI-e Host Bus Adapter | |
| AE311A | HP StorageWorks FC1142 4Gb PCI-Express Host Bus Adapter | |
| AE312A | HP StorageWorks FC1242SR 4Gb PCIe dual-channel Host Bus Adapter | |
| AJ763A | HP StorageWorks 82E 8Gb Dual-port PCI Express Fiber Channel Host Bus Adapter | |
| AJ764A | HP StorageWorks 82Q 8Gb Dual Port PCIe Fiber Channel Host Bus Adapter | |
| AK344A | HP StorageWorks 81Q PCIe Fiber Channel Host Bus Adapter | |
| AP767A | HP StorageWorks 41B PCI Express 4Gb Host Bus Adapter - Single port, fiber channel | |
| AP768A | HP StorageWorks 42B PCI Express 4Gb Host Bus Adapter - Dual port, fiber channel | |
| AP769A | HP StorageWorks PCI Express 8Gb Host Bus Adapter - Single port, fiber channel | |
| AP770A | HP StorageWorks PCI Express 8Gb Host Bus Adapter - Dual port, fiber channel | |
| 电源 | ||
| 252663-B31 | HP Modular Power Distribution Units (mPDU), High Volt Model, 32A (200-240 VAC) (Int’l) | |
| 437573-B21 | HP 1200W Common Slot -48VDC Hot Plug Power Supply Kit | |
| 500172-B21 | HP 1200W 12V Hot Plug AC Power Supply | |
| 503296-B21 | HP 460W Common Slot Gold Hot Plug Power Supply Kit | |
| 512327-B21 | HP 750W Common Slot Gold Hot Plug Power Supply Kit | |
| AF416A | HP R5500 VA UPS, INTL | |
| AF453A | HP R/T3000 UPS, High voltage, NA/JPN | |
| AF454A | HP R/T3000 UPS, High voltage, detachable inlet cord INTL | |
| AF508A | HP 11 kVA S1316 Monitored PDU- single input, 3U, 16A (INTL) | |
| AF510A | HP 7.3kVA S1132 Monitored PDU- single input, 1U, 32A (INTL) | |
| AF914A | HP 4.9kVA 24A Single Input Single Phase Monitored Power Distribution Unit | |
| AF915A | HP 7.3 kVA S132 Monitored PDU- single input, 1Ø, 32A (INTL) | |
| 电池 | ||
| 462969-B21 | HP 650 mAh P-Series Battery | |
| 光驱 | ||
| 481041-B21 | HP Slim SATA DVD-ROM Optical Drive | |
| 481043-B21 | HP Slim SATA DVDRW Optical Drive | |
| FS943AA#ABA | HP External USB CD/DVD R/RW Optical Drive | |
| 磁带机 | ||
| AK377A | HP StorageWorks 1/8 G2 LTO-4 Ultrium 1760 SAS Tape Autoloader | |
| AK378A | HP StorageWorks MSL2024 1 LTO-4 Ultrium 1760 SAS Drive Library | |
| AK380A | HP StorageWorks MSL4048 2 LTO-4 Ultrium 1760 SAS Drive Library | |
| BL536A | HP 1/8 G2 LTO-5 Ultrium 3000 SAS Tape Autoloader | |
| BL537A | HP MSL2024 1 LTO-5 Ultrium 3000 SAS Tape Library | |
| BL538A | HP MSL4048 2 LTO-5 Ultrium 3000 SAS Tape Library | |
| EH946B | HP StorageWorks LTO-4 Ultrium 1760 SAS (1) in 1U Rack-mount Kit | |
| EJ014A | HP StorageWorks LTO-5 Ultrium 3000 SAS Tape Drive in 1U Rackmount | |
| 导轨 | ||
| AF092A | HP 10642 G2 1200mm deep Shock Rack | |
| AF094A | HP 10647 G2 1200mm deep Shock Rack | |
| 线缆 | ||
| 496012-B21 | HP Mini SAS to Mini SAS 8in Cable Assembly | |
| 591734-B21 | HP 8484 to Mini SAS 33in Cable Assembly | |
| 其它 | ||
| 252663-B24 | HP Modular Power Distribution Unit(mPDU), High Volt Model, 16A (200-240 VAC) (WW) | |
| 252663-D72 | HP 24A High Voltage Modular Power Distribution Unit (North America, Japan) - 4.9 kVA Modular PDU, 24A | |
| 252663-D73 | HP Modular Power Distribution Units (Zero-U/1U Modular PDU) - 8.3 kVA Modular PDU, 40A (USA, Canada, Japan) | |
| 381513-B21 | HP Smart Array P800/512 BBWC Controller | |
| 418408-B21 | HP StorageWorks 60 Modular Smart Array | |
| 418800-B21 | HP StorageWorks 70 Modular Smart Array | |
| 436222-B21 | HP Insight Software Media Kit | |
| 452148-B22 | HP Insight Control suite, No Media 1-Server License including 1 year of 24x7 Technical Support and Updates | |
| 452151-B21 | HP Insight Rapid Deployment software No Media 1-Server License including 1 year of 24x7 Technical Support and Updates | |
| 462830-B21 | HP Smart Array P411/256 2-ports Ext PCIe x8 SAS Controller | |
| 462832-B21 | HP Smart Array P411/512 BBWC 2-ports Ext PCIe x8 SAS Controller | |
| 462834-B21 | HP Smart Array P212/256 1-ports Int/1-ports Ext PCIe x8 SAS Controller | |
| 462860-B21 | HP Smart Array P410/ZM 2-ports Int PCIe x8 FIO SAS Controller | |
| 462862-B21 | HP Smart Array P410/256 2-ports Int PCIe x8 SAS Controller | |
| 462864-B21 | HP Smart Array P410/512 BBWC 2-ports Int PCIe x8 SAS Controller | |
| 487204-B21 | HP Smart Array P812/1G FBWC 2-ports Int/4-ports Ext PCIe x8 SAS Controller | |
| 488069-B21 | HP Trusted Platform Module Option | |
| 491195-B21 | HP Smart Array P410/256 BBWC 2-ports Int PCIe x8 FIO SAS Controller | |
| 494322-B21 | HP DL38X PCI-X riser kit (1) PCI-X, (1) x8, (1) x4) | |
| 494323-B21 | HP DL38X (2) x8 PCI-E Riser Kit | |
| 494326-B21 | HP DL38X (2) x8 PCI-E Riser Kit | |
| 500580-B21 | HP DL38X (1) x8, (2) x4 PCI-E riser kit | |
| 512485-B21 | HP iLO Advanced including 1yr 24x7 Technical Support and Updates Single Server License | |
| 516471-B21 | HP Smart Array Advanced Pack including 1yr 24x7 Technical Support and Updates Single Server License | |
| 516914-B21 | HP 8 SFF CAGE 380G6 | |
| 570121-B21 | HP DL385G6 O2435 HPM FIO PERF PACK | |
| 572431-B21 | HP ProLiant DL385G6 Rack CTO Chassis | |
| 573104-B21 | HP ProLiant DL385G6 Rack LFF CTO Chassis | |
| 582765-B21 | HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server FIO License | |
| 600278-B21 | HP 160GB Single Level Cell PCIe ioDrive for ProLiant Servers | |
| 600279-B21 | HP 320GB Multi Level Cell PCIe ioDrive for ProLiant Servers | |
| 600281-B21 | HP 320GB Single Level Cell PCIe ioDrive Duo for ProLiant Servers | |
| 600282-B21 | HP 640GB Multi Level Cell PCIe ioDrive Duo for ProLiant Servers | |
| 608447-B21 | HP 2GB USB Flash Media Drive Key Kit | |
| AF001A | 10642 G2 (42U) Rack Cabinet - Pallet | |
| AF002A | 10642 G2 (42U) Rack Cabinet - Shock Pallet | |
| AF418A | HP Rack Uninterruptible Power System R1500 G2 - 1U, 4.5cm (1.75in) high (International) | |
| AF419A | HP R1.5 VA 1U Uninterruptible Power System | |
| AF421A | HP R1.5 VA 1U Uninterruptible Power System - (Japan, Taiwan) | |
| AF426A | HP Rack Uninterruptible Power System R5500 (North America or Japan) | |
| AF504A | HP monitored single Power Distribution Unit (PDU) S1324 (North America, Japan) - 3PH, 24A, 8.6 kVA | |
| AF506A | HP Single Input 1 Phase 40A Monitored Power Distribution Unit (North America, Japan) | |
| AF616A | HP Server Console 0x2x8 Port Analog Switch | |
| AF617A | HP Server Console 0x2x16 Port Analog Switch | |
| AF618A | HP 0x2x16 KVM Server Console Switch G2 with Virtual Media CAC Software | |
| AF619A | HP 0x2x32 KVM Server Console Switch G2 with Virtual Media CAC Software | |
| AF620A | HP 1x1Ex8 KVM IP Console Switch G2 with Virtual Media CAC Software | |
| AF621A | HP 2x1Ex16 KVM IP Console Switch G2 with Virtual Media CAC Software | |
| AF622A | HP 4x1Ex32 KVM IP Console Switch G2 with Virtual Media CAC Software | |
| AG067A | AA TFT7600 Rackmount Keyboard and Monitor US | |
| AJ940A | HP D2600 Disk Enclosure | |
| AJ941A | HP D2700 Disk Enclosure | |
| AP724A | HP StorageWorks RDX160 Removable Disk Backup System DL Server Module | |
| AP725A | HP StorageWorks RDX320 Removable Disk Backup System DL Server Module | |
| AP726A | HP StorageWorks RDX500 Removable Disk Backup System DL Server Module | |
| AP835B | HP DAT 320 USB in 1U Rack-mount Kit | |
| AW578A | HP StorageWorks RDX750 Internal Removable Disk Backup System for DL Servers | |
| AZ870A | HP TFT7600 G2 KVM Console Rackmount Keyboard Monitor | |
| BV848A | HP StorageWorks RDX 1TB Removable Disk Backup System DL Server Module | |
| DT528A#ABA | HP Keyboard (USB) standard 2004 | |
| EH993B | HP D2D4112 Backup System | |
| EJ001B | HP D2D2502i Backup System | |
| EJ002B | HP D2D2504i Backup System | |
| T9074BAE | HP Insight Control including 1yr 24x7 Technical Support and Updates Electronic License | |
| T9082AAE | HP Insight Control Server Deployment including 1yr 24x7 Support Electronic License | |
| TA850AAE | HP iLO Advanced including 1yr 24x7 Technical Support and Updates Electronic License | |
| TC203A | HP Insight Control for Linux including 1yr 24x7 Support ML/DL Bundle 1 Server FIO License | |
| TC208A | HP Insight Control for Linux Media Kit | |
| TC209A | HP Insight Control for Linux including 1yr 24x7 Support Single Server License | |
| TC213AAE | HP Insight Control for Linux including 1yr 24x7 Support Electronic License | |
| TC275A | HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Tracking License | |
| TC278AAE | HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Electronic License | |
| TC330AAE | HP Data Protector Express V5.0 for 1 Server E-LTU | |
| TC331AAE | HP Data Protector Express V5.0 for 3 Servers E-LTU | |
| TC332AAE | HP Data Protector Express V5.0 for 10 Servers E-LTU | |
| TC333AAE | HP Basic Upgrade to Data Protector Express V5 for 1 Server E-LTU | |
| U4544E | 4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic | |
| U4545E | 4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic | |
| U4546E | 6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic | |
| U4554E | Hardware Installation, Electronic | |
| U4555E | Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays, Electronic | |
| U4556E | Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays, Electronic | |
| U4557E | Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic | |
| U5683E | Installation and Startup for Essentials Rapid Deployment Pack, Electronic | |
| U6312E | Onsite HW support 24x7, 4hr response and SuSE Linux SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic | |
