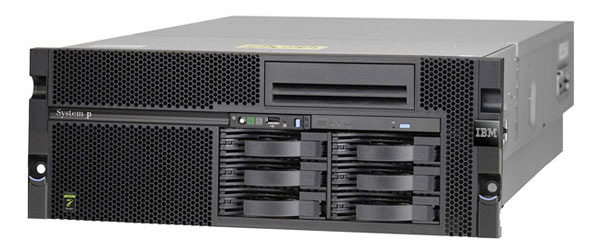

| 名称 | IBM Power 550 Express |
| 型号 | 8204-E8A |
| 品牌 | IBM |
| 类型 | 小型机 |
| CPU信息 |
2 路，4 路，6 路或 8 路 3.5 GHz 的 64 位 4.2 GHz 或 5.0 GHz 的 POWER6 的处理器。 |
| CPU类型 | POWER6 |
| CPU插槽数 | 4 |
| CPU激活 | 需要激活码 |
| 机架类型 | 机架式，塔式 |
| 机架空间 | 4U |
| 硬盘信息 | 最大硬盘背板数量为 2 |
| 最大硬盘数量 | 8 |
| 内存提示 | DDR2 的内存。 |
| 支持内存容量范围 | 4GB-256GB |
| 内存插槽数量 | 32 |
| 内存是否需要激活 | 不需要激活 |
| 电源描述 | 100v 到 127v 或者 200v 到 240v 交流。 |
| 单机电源数量 | 2 |
| 介质托架 | 1 个薄型和 1 个半高的介质托架。 |
| 适配器插槽 |
2 个 PCI-X 适配器插槽 （266 MHz（DDR）的） ，3 个 PCI Express 8x。 |
| 端口 |
2 个以太网 10/100/1000 Mbps 端口 或 4 个以太网 10/100/1000 端口（选件）， 或 2 个万兆以太网端口（选件）， 3 个 USB 端口，2 个 HMC 端口，2 个串口。 |
| IO适配器 | 3G SAS控制器（内部，可选 RAID）。 |
| IO扩展 | |
| 发布日期 | 2008/2/29 |
| 下架日期 | 2011/5/27 |
| 服务截止期 | |
| 操作系统 |
AIX V5.3 或者更高版本， IBM i 5.4 或者更高版本， SUSE LinuX Enterprise Server 10 f 或者 POWER™ (SLES10 SP1) 或者更高版本， Red Hat Enterprise LinuX 4.5 f 或者 POWER (RHEL4.5) 或者更高版本， RHEL5.1 或者更高版本 。 |
| 产品尺寸 |
桌面型： 21.3"高 x 7.2-11.1"宽 x 30.6"深 （540 毫米 x 183-283 毫米 x 778毫米）， 机架扩展笼： 6.9"高（4U） x 17.3"宽 x 28.7"深 （175毫米x 440毫米 x 730毫米）。 |
| 产品重量 |
桌面型：54.4 千克（120.0 磅）， 机架扩展笼：54.4 千克（120.0 磅）。 |
| FC号 | PN号 | 描述 |
| CPU | ||
| 4965 |
07P6793/46K6587/ 46K6765/46K7060/ 46K7590 |
2-core 3.5GHz POWER6 Processor Card |
| 4966 |
10N9377/10N9725/ 46K6595/46K6769/ 46K7066/46K7593/ 46K7594 |
2-core 4.2GHz POWER6 Processor Card |
| 4967 |
10N9380/46K7401/ 46K7817 |
2-core 5.0 GHz POWER6 Processor Card |
| 系统板 | ||
| 46K6726 |
System backplane, 3.5 and 4.2 GHz processor |
|
| 46K7761 |
System backplane, 3.5, 4.2, and 5.0 GHz processor |
|
| 内存 | ||
| 4520 | 77P6497 |
1GB (2x512MB) RDIMMs, 667MHz, 512MB DRAM |
| 4521 | 77P6498 |
2GB (2x1GB) RDIMMs, 667MHz, 512MB DRAM |
| 4522 | 77P6499 |
4GB (2x2GB) RDIMMs, 667MHz, 512MB DRAM |
| 4523 | 77P6500 |
8GB (2x4GB) RDIMMs, 667MHz, 512MB Stacked DRAM |
| 4532 | 77P8030 |
4GB (2x2GB) RDIMMs, 667MHz, 1Gb DRAM |
| 硬盘 | ||
| 1793 |
177GB SFF-2 SSD w/ eMLC (AIX/Linux) |
|
| 1882 |
42R5661/42R8390/ 42R8392/46V6830/ 46V6837 |
146.8GB 10K RPM SAS SFF Disk Drive |
| 1883 |
44V4426/44V4427/ 44V4428/44V6842 |
73.4 GB 15K RPM SAS SFF Disk Drive |
| 1885 |
42R6833/44V6831/ 44V6833/44V6838 |
300GB 10K RPM SFF SAS Disk Drive |
| 1886 |
44V6843/44V6845/ 44V6850 |
146GB 15K RPM SFF SAS Disk Drive |
| 1890/1909 |
58B0/44V6817/ 44V6821/44V8674 |
69GB SFF SAS Solid State Drive |
| 1917 |
146GB 15k RPM SAS SFF-2 Disk Drive (AIX/Linux) |
|
| 1925 |
300GB 10k RPM SAS SFF-2 Disk Drive (AIX/Linux) |
|
| 3278 |
00P2684/00P2685/ 00P5260/03N5279/ 03N5280/03N6344/ 03N6345/26K5180/ 26K5280/26K5531/ 55P4103/80P3163 |
73.4 GB 15,000 RPM Ultra3 SCSI Disk Drive Assembly |
| 3279 |
03N5284/03N5285/ 03N5766/03N6349/ 03N6350/26K5182/ 26K5282/26K5532/ 26K5567/80P3402/ 80P3911 |
146.8GB 15K 80 Pin U320 SCSI Disk Drive/Carrier |
| 3586 |
58B0/44V6819/ 44V8673 |
69GB 3.5" SAS Solid State Drive |
| 3646 |
10N7199/10N7200/ 10N7230/42R4233 |
73 GB 15K RPM SAS Disk Drive |
| 3647 |
10N7203/10N7204/ 10N7232/42R4234 |
146 GB 15K RPM SAS Disk Drive |
| 3648 |
10N7207/10N7208/ 10N7234/42R5648 |
300 GB 15K RPM SAS Disk Drive |
| 3649 |
44V4432/44V4433/ 44V4438/44V4440 |
450 GB 15K RPM SAS Disk Drive |
| 4327 |
26K5176/36K5537/ 39J1469/39J3696/ 39J3699/42C0216/ 42C0256/43L9028/ 53P3240/53P3360/ 97P2930/97P2991/ 97P3031 |
70.56GB 15k rpm Disk Unit |
| RAID卡 | ||
| 5583 |
39J1702/40N9889/ 42R4053/42R4460/ 42R4560/42R5130/ 42R5133/42R8305/ 44V3478/44V3481/ 44V4733/64P1383/ 97P6130 |
5777 Ctlr w/Aux Write Cache, Cache battery pack 39J5554. The 5583 includes an IOPless, 5777 PCI-X Quad-Channel Ultra320 SCSI RAID Adapter and a CCIN 574F auxiliary-write cache IOA. 5583 provide RAID 5 or RAID 6 capability. |
| 5679 |
42R4635/44V3139/ 44V3140/44V3298/ 44V4145/44V4192/ 44V4734/44V5554/ 44V6093/46K6109/ 74Y5667 |
SAS RAID Enablement |
| 5776 |
571B/39J2012/ 39J3534/39J5024/ 42R4855/42R8739/ 44V5587/97P4152/ 97P4847 |
PCI-X DASD Controller-90MB No IOP, Cache battery pack 39J5555. |
| 5777 |
40N9889/42R4460/ 42R5130/42R8305/ 44V3478/44V4013/ 44V4733/97P6130 |
PCI-X Disk Ctlr-1.5GB No IOP |
| 5778 |
42R3867/42R6579/ 44V3480/39J0273/ 39J5909/42R3867/ 42R3965/42R3969/ 42R4226/42R4227/ 42R4280/42R5261/ 42R6011/42R6578/ 42R6579/44V3306/ 44V3480/44V4608/ 44V5817/74Y5665 |
PCI-X EXP24 Ctl-1.5GB No IOP |
| 5782 |
42R3867/42R6579/ 44V3480/39J0273/ 39J5909/42R3867/ 42R3965/42R3969/ 42R4226/42R4227/ 42R4280/42R5261/ 42R6011/42R6578/ 42R6579/44V3306/ 44V3480/44V4608/ 44V5817/74Y5665 |
PCI-X EXP24 Ctl-1.5GB No IOP |
| 5805 |
PCIe 380MB Cache Dual - x4 3Gb SAS RAID Adapter |
|
| 5900 |
42R7988/42R7989/ 44V3296/44V4266/ 44V4404 |
PCI-X DDR Dual - x4 3Gb SAS Adapter |
| 5902 |
572B/44V4203/ 44V5194/97P4847 |
PCI-X DDR Dual-x4 3Gb SAS RAID Adapter, Cache battery pack 39J5555. |
| 5903 |
574E/44V4198/ 44V7436/44V7597/ 74Y6124 |
PCIe 380MB Cache Dual - x4 3Gb SAS RAID Adapter |
| 5904 |
42R3965/42R3969/ 44V4577/44V4579/ 44V5193/44V5193/ 44V8622/46K4734/ 46K6114/74Y5665 |
PCI-X DDR 1.5GB Cache SAS RAID Adapter |
| 5908 |
42R3965/42T3969/ 44V4577/44V4579/ 44V5193/44V8622/ 46K4734/46K6114/ 74Y5665 |
PCI-X DDR 1.5GB Cache SAS RAID Adapter (BSC) |
| 5912 |
572A/44V4413/ 4V4414/44V5195/ 44V8579 |
PCI-X DDR Dual - x4 SAS Adapter |
| 5921 | Non-paired PCIx SAS RAID Indicator | |
| 5922 | 11P1347/11P3897 | Non-paired SAS RAID indicator |
| 5923 | Non-paired PCIe SAS RAID Indicator | |
| SCSI卡 | ||
| 5736 |
39J1643/39J2862/ 39J3536/39J4996/ 39J5022/42R4860/ 42R8736/44V5591/ 42R4362/52P8558 |
PCI-X DDR 2.0 Dual Channel Ultra320 SCSI Adapter |
| 5806 |
PCI-X DDR Dual Channel Ultra320 SCSI Adapter |
|
| 5901 |
57B3/44V4852/ 44V8580/45K4732 |
PCIe Dual-x4 SAS Adapter |
| 网卡 | ||
| 5700 |
00P3055/00P4499/ 03N6981/05N6768/ 09P5386/10N8586/ 11P3847/12R9314/ 15R7536 |
IBM Gigabit Ethernet-SX PCI-X Adapter |
| 5701 |
00G2380/00P3056/ 00P4501/00P6130/ 03N6070/03N6524/ 09P5389/21P4745/ 53P5450/80P4024/ 80P7033 |
IBM 10/100/1000 Base-TX Ethernet PCI-X Adapter |
| 5706 |
00G2380/00P4289/ 00P6131/03N5297/ 03N6070/53P5450/ 80P4024/80P7033 |
IBM 2-Port 10/100/1000 Base-TX Ethernet PCI-X Adapter |
| 5707 |
00P4290/00P6132/ 03N6973/05N6768/ 10N8587/11P3847/ 12R9314/15R7536/ 53P5450/80P4024/ 80P6451/80P7033 |
IBM 2-Port Gigabit Ethernet-SX PCI-X Adapter |
| 5717 |
10N7405/10N8556/ 46Y3512 |
4-Port 10/100/1000 Base-TX PCI Express Adapter |
| 5721 |
573A/03N4590/ 05N6768/10N8264/ 10N9774/10N9775/ 11P3847/12R9314/ 15R75836/74Y2621/ 80P6636/80P7055 |
10 Gb Ethernet-SR PCI-X 2.0 DDR Adapter |
| 5722 |
576A/03H4588/ 10N8263/10N9776/ 10N9777/12R6249/ 12R9315/80P6634/ 80P7053 |
10 Gb Ethernet-LR PCI-X 2.0 DDR Adapter |
| 5732 |
45D4771/46K6696/ 46K7899 |
10 Gigabit Ethernet-CX4 PCIe (x8)Adapter |
| 5740 | 03N5444 |
4-Port 10/100/1000 Base-TX Ethernet PCI-X Adapter |
| 5767 |
10N6845/10N7405/ 46K6601 |
2-Port 10/100/1000 Base-TX Ethernet PCI Express Adapter |
| 5768 |
05H6768/10N6846/ 11P3847/12R9314/ 15R7536/46K6602 |
2-Port Gigabit Ethernet-SX PCI Express Adapter |
| 5769 |
05N6768/10N9505/ 11P3847/12R9314/ 46K7897 |
10 Gigabit Ethernet-CX4 PCIe (x8)Adapter |
| 5772 |
576E/05N6768/ 10N9034/11P3847/ 12R9314 |
10 Gigabit Ethernet-CX4 PCIe (x8)Adapter |
| 适配卡 | ||
| 2728 |
57D1/46K6692/ 46K7494 |
4 port USB PCIe Adapter |
| 2738 |
28EF/52P8639/ 80P2994/80P6227 |
2-Port USB PCI Adapter |
| 2844 |
52G4337/21P6018/ 39J1719/39J3242/ 39J5013/43L9059/ 97P2694 |
PCI IOP |
| 2847 |
39J2513/39J2894/ 39J4035/42R6471 |
PCI IOP for SAN Load Source |
| 2893 |
26P1139/42R5678/ 42R8192/26P1139/ 42R5678/42R8192/ 44V5323 |
PCIe 2-Line WAN w/Modem |
| 2943 |
07L9001/07L9822/ 11H5967/11H5968/ 11H5969/11H6011/ 42R4761/6298964/ 93H6540/93H6541/ 94H6541 |
8-Port Asynchronous Adapter EIA-232/RS-422, PCI bus |
| 4764 |
12R6540/12R6714/ 41U0441/41U0442/ 41V0161 |
PCI-X Cryptographic Coprocessor (FIPS 4) |
| 4807 |
45D5803/45D6680/ 45D7948 |
PCIe Crypto Coprocessor No BSC 4765-001 |
| 4808 |
45D5803/45D6680/ 45D7948 |
PCIe Crypto Coprocessor Gen3 BSC 4765-001 |
| 5723 | 64P1243/80P4353 | 2-Port Asynchronous EIA-232 PCI Adapter |
| 5785 |
57D2/42R5143/ 46K6734/46K6735/ 6298965 |
4 Port Async EIA-232 PCIe Adapter |
| 6312 |
00P3119/10N7380/ 87H3588 |
Quad Digital Trunk Telephony PCI Adapter |
| 6805 |
21P5267/39J2298/ 53P1677 |
PCI 2-Line WAN IOA No IOP |
| 6808 |
21P8186/39J2290/ 44V5110/97P5638 |
PCI 4-Modem WAN IOA No IOP |
| 6833 |
21P5289/39J2282/ 39J2283/44V5116/ 53P0708 |
PCI 2-Line WAN w/Modem NoIOP |
| 显卡 | ||
| 2848 |
00P2526/00P2530/ 00P5756/00P5758/ 09P3209/09P5074/ 09P5269/09P5758/ 80P4527 |
PCI 2D Entry Graphics Adptr |
| 2849 |
00P5756/00P5758/ 03N5853/09P5758 |
POWER GXT135P Graphics Accelerator with Digital Support |
| 5748 | 10N7756 |
POWER GXT145 PCI Express Graphics Accelerator |
| 光纤卡 | ||
| 5708 |
2B3B/05N6768/ 11P3847/12R9314/ 46K8088 |
10Gb FCoE PCIe Dual Port Adapter |
| 5713 |
03N6056/26K6490/ 30R5219/32R1926/ 46K7342/49Y4236 |
1 Gigabit iSCSI TOE PCI-X on Copper Media Adapter |
| 5714 | 03N6058/30R5519 |
1 Gigabit iSCSI TOE PCI-X on Optical Media Adapter |
| 5735 |
577D/05N6768/ 10N9824/11P3847/ 12R9314/46C7006 |
8 Gigabit PCI Express Dual Port Fibre Channel Adapter |
| 5758 |
280D/03N5012/ 03N5014/46K6838 |
4 Gb Single-Port Fibre Channel PCI-X 2.0 DDR Adapter |
| 5759 |
03N5027/03N5029/ 03N6768/10N8620/ 10N3847/12R9314 |
4 Gb Dual-Port Fibre Channel PCI-X 2.0 DDR Adapter |
| 5760 |
03N5014/3N5016/ 46K6838/46K6840 |
PCI-X Fibre Chan Disk Ctlr |
| 5761 |
03N5012/03N5014/ 03N5016/46K6838/ 46K6840 |
PCI-X Fibre Channel Tape Ctlr |
| 5773 |
05N6768/10N7249/ 44P3847/12R9314/ 15R7536 |
4 Gigabit PCI Express Single Port Fibre Channel Adapter |
| 5774 |
05N6768/10N7255/ 11P3847/12R9314/ 15R7536 |
4 Gigabit PCI Express Dual Port Fibre Channel Adapter |
| 电源 | ||
| 51C4 | 42R6607 | 1700 W dc power supply (8204-E8A) |
| 7707 |
44V3559/44V4951/ 44V7292 |
Power Supply, 1700 Watt AC, Hot-swap, Base and Redundant |
| 7708 |
Power Supply, 1700 Watt DC, Hot-swap, Base and Redundant |
|
| 稳压模块 | ||
| 44V5183 |
Memory Voltage regulator 95 A (VRM1A, VRM1B) |
|
| 2A2C | 42R6498/42R8609 | Voltage regulator 30 A (VRM2) |
| 电池 | ||
| 39J5554/97P4846 | IBM Li-ion Cache Battery | |
| 光驱 | ||
| 3706 | DVD-ROM | |
| 4430 |
04N2569/04N5276/ 04N5966/04N5968/ 17P8966/18P7250/ 18P8166/19P0484/ 19P0489/53P2646 |
DVD-ROM |
| 4630 |
04N2569/04N5276/ 04N5966/04N5968/ 18P7250/18P8166/ 19P0484/19P0489/ 53P2646 |
DVD-ROM |
| 4633 |
18P8166/39J2145/ 39J2146/39J4797/ 39J5777/39J5778/ 97P3713/97P3714/ 97P6887/97P6888 |
DVD-RAM |
| 5743 | 44V4223/44V4224 | SATA Slimline DVD-ROM Drive |
| 5756 |
39J5773/39J5774/ 42R5292/42R5293 |
IDE Slimline DVD-ROM Drive |
| 5757 |
18P8166/39J5771/ 39J5772/42R7969/ 42R7970 |
IBM 4.7 GB IDE Slimline DVD-RAM Drive |
| 5762 | 44V4219/44V4220 | SATA Slimline DVD-RAM Drive |
| 磁带机 | ||
| 5619 | 80/160GB DAT160 SAS Tape Drive | |
| 5661 | 46C1932/46C1933 | DAT320 160/320 GB Tape Drive |
| 5746 |
24R1922/35L2086/ 45E1126/45E1127/ 45E1129/95P4436/ 95P4450/96P1203 |
Half High 800GB/1.6TB LTO4 SAS Tape Drive |
| 5907 |
18P7912/21F8763/ 23R2528/23R2530/ 59H3465/59H4456/ 59H4457/59H4458 |
36/72GB 4mm DAT72 SAS Tape Drive |
| 磁带 | ||
| 5689 | 23R5635 | DAT160 Data Cartridge |
| 5747 | IBM LTO Ultrium 4 800 GB Data Cartridge | |
| 导轨 | ||
| 6586 | 10N7683/80P3263 | Modem Tray for 19-Inch Rack |
| 7146 |
39R6550/42R8278/ 42R8279/44V3349/ 44V3352 |
IBM/OEM Rack-Mount Drawer Rail Kit |
| 7359 | 42R7686 |
OEM Rack-mount Drawer Bezel and Hardware |
| 7360 |
39J4530/42R7686/ 44V4930/44V5078 |
IBM Rack-mount Drawer Bezel and Hardware |
| 7841 | Ruggedize Rack Kit | |
| 线缆 | ||
| 1019 | 39J5813/75G3807 | Modem Cable - Australia |
| 1020 | 39J5817/75G3808 | Modem Cable - HK/NZ |
| 1025 |
42R5087/43L6774/ 75G3801/87G6236 |
Modem Cable - US/Canada and General Use |
| 1111 | CAT5E Ethernet Cable, 3M BLUE | |
| 1112 | CAT5E Ethernet Cable, 10M BLUE | |
| 1113 | CAT5E Ethernet Cable, 25M BLUE | |
| 1115 | CAT5E Ethernet Cable, 3M GREEN | |
| 1116 | CAT5E Ethernet Cable, 10M GREEN | |
| 1117 | CAT5E Ethernet Cable, 25M GREEN | |
| 1118 | CAT5E Ethernet Cable, 3M YELLOW | |
| 1119 | CAT5E Ethernet Cable, 10M YELLOW | |
| 1121 | CAT5E Ethernet Cable, 25M YELLOW | |
| 1460 |
23L3080/39J5833/ 44L0005 |
3m Copper RIO Cable |
| 1461 |
21H7643/24L1791/ 39J5834/44H8873/ 97H7490 |
6m Copper HSL Cable |
| 1462 |
04N7014/39J5822/ 44H9137/97H7491 |
15m RIO Cable |
| 1466 | 21F9359/22R5222 | 30m SPCN Cable |
| 1474 |
21P5477/39J2559/ 43L8978 |
6m RIO to RIO-2 Cable |
| 1475 |
21P5458/39J2551/ 53P5245 |
10m RIO to RIO-2 Cable |
| 1485 |
21P5457/39J2560/ 43L9026 |
Remote I/O Cable, 15M |
| 1487 | 39J2552/53P5243 | 3m HSL to HSL-2 Cable |
| 1827 | 39J5836/97P4299 | 3m RIO to RIO-2 Cable |
| 1828 | 15R8139/45D2235 |
1.5 Meter 12X to 4X Channel Conversion Cable |
| 1829 | 41V0226/42V2129 | 0.6 Meter 12X Cable |
| 1830 |
41V0227/42R6153/ 42V3130 |
1.5 Meter 12X cable |
| 1834 |
39J5642/42R6157/ 42R6160 |
8.0 Meter 12X Cable |
| 1840 | 42V2132 | 3.0 Meter 12X Cable |
| 1841 | 15R8140/45D2236 |
3 Meter 12X to 4X Channel Conversion Cable |
| 1842 | 15R8141/45D2237 |
10 Meter 12X to 4X Channel Conversion Cable |
| 1843 | 42R6064 |
Op Panel Cable for Deskside System w/3.5" DASD |
| 1854 |
10 Meter 12X to 4X Enhanced Channel Conversion Cable |
|
| 1856 | 42R6068/44V7191 |
Op Panel Cable for Deskside System w/2.5" DASD |
| 1861 | 44V3421/45D4785 | 0.6 Meter 12X DDR Cable |
| 1862 | 44V3423/45D4786 | 1.5 Meter 12X DDR Cable |
| 1864 | 45D4788 | 8.0 Meter 12X DDR Cable |
| 1865 |
44V3426/45D2571/ 45D5271 |
3.0 Meter 12X DDR Cable |
| 1877 | 42R6066 |
Op Panel Cable for Rack-mount Drawer w/3.5" DASD |
| 1878 |
42R6067/42R6069/ 44V7190 |
Op Panel Cable for Rack-mount Drawer w/2.5" DASD |
| 2114 | 40H6603/52G0173 |
PCI SCSI Adapter 16-Bit Differential External Y Cable |
| 2118 |
01K6497/07L9628/ 76H0518 |
Converter Cable VHDCI to P Mini-68 pin to 68 pin 0.3M |
| 2124 |
09L3299/36R2585/ 41Y0596 |
Ultra 320 SCSI Cable 1 Meter |
| 2125 |
09L3301/36R2576/ 41Y0597 |
Ultra 320 SCSI Cable 3 Meter |
| 2126 |
09L3303/36R2577/ 41Y0598 |
Ultra 320 SCSI Cable 5 Meter |
| 2127 |
09L0881/09L3305/ 36R2578/41Y0599 |
Ultra 320 SCSI Cable 10 Meter |
| 2128 |
09L3307/19P1904/ 36R2579/41Y0600 |
Ultra 320 SCSI Cable 20 Meter |
| 2138 | 41Y0601/42D9817 | 0.55 Meter Ultra 320 SCSI Cable |
| 2424 | 52G4291 |
0.6M 16-bit SCSI-2 System to System Cable |
| 2425 | 40H2172/52G4233 |
2.5M 16-bit SCSI-2 System-to-System Cable |
| 2456 |
09P3044/11P1352/ 11P1373/12R9321 |
LC-SC 50 Micron Fiber Converter Cable |
| 2459 |
00P4023/11P1374/ 12R9322 |
LC-SC 62.5 Micron Fiber Converter Cable |
| 2861 |
07L8817/87H3404/ 87H3405/87H3406/ 87H3439/87H3568 |
ARTIC960Hx 4-Port EIA-232 Cable |
| 2863 |
53G0638/87H3407/ 87H3408/87H3409/ 87H3566 |
ARTIC960Hx 4-Port X.21 Cable |
| 2864 |
87H3398/87H3399/ 87H3400/87H3442/ 87H3565 |
ARTIC960Hx 4-Port V.35 (DTE Cable |
| 2877 | 08L1215/42R4756 |
IBM ARTIC960RxD Quad DTA, H.100, 4-Drop Cable |
| 2934 |
10N6535/12H1204/ 40H0744/40H2206 |
Asynchronous Terminal/Printer Cable EIA-232 |
| 2936 |
30F9453/42R5206/ 53F3205/53F3662/ 6223741/6323741 |
Asynchronous Cable EIA-232/V.24 |
| 2951 |
33F8985/93H2899/ 93H5263 |
Cable V.24 / EIA-232 |
| 2952 |
71F0163/93H2900/ 93H5264 |
Cable V.35 |
| 2953 |
73H2508/93H2901/ 93H5265 |
Cable V.36 / EIA-499 |
| 2954 |
40F9904/93H2902/ 93H5267 |
Cable X.21 |
| 3124 |
10N7158/88G4771/ 88G4853 |
Serial to Serial Port Cable for Drawer/Drawer |
| 3125 |
10N7159/88G4772/ 88G4854 |
Serial to Serial Port Cable for Rack/Rack |
| 3146 |
00P3237/09P2631/ 21P5454/39J2562/ 44V5140 |
RIO-2(Remote I/O-2Cbl 1.2M |
| 3147 |
00P3238/09P2632/ 31P6131/39J2554/ 43L8981/53P2676 |
RIO-2(Remote I/O-2Cbl 3.5M |
| 3148 |
00P3239/09P2633/ 21P5456/39J2561/ 43L8982 |
RIO-2 (Remote I/O-2) Cable, 10M |
| 3156 | 00P5238/03N5867 | RIO-2 (Remote I/O-2 Cable 1.75M) |
| 3168 | 00P5239/03N5866 | RIO-2 (Remote I/O-2 Cbl 2.5M |
| 3652 | 42R6762/44V4147 | SAS Cable (EE Drawer to Drawer 1M |
| 3653 | 42R6727/44V4148 | SAS Cable (EE) Drawer to Drawer 3M |
| 3654 | 42R6728/44V4149 | SAS Cable (EE) Drawer to Drawer 6M |
| 3655 | SAS HH Cable | |
| 3656 | 95P4084 | SAS SFF Cable |
| 3657 | 42R5815/46K5450 | Right Angle SAS Tape Drive Cable |
| 3661 | 42R6742/44V4154 |
SAS Cable (X Adapter to SAS Enclosure Dual Controller/ Dual Path 3M |
| 3662 | 42R6743/44V4155 |
SAS Cable (X) Adapter to SAS Enclosure, Dual Controller/ Dual Path 6M |
| 3663 | 42R6744/44V4156 |
SAS Cable (X) Adapter to SAS Enclosure, Dual Controller/ Dual Path 15M |
| 3668 | 42R5751 | SAS Cable, DASD Backplane to Rear Bulkhead |
| 3669 | 44V5252 |
SAS Cable, DASD Backplane (Split) to Rear Bulkhead |
| 3679 | 42R6751/44V4041 | SAS Cable (AI)-1M |
| 3681 | 44V4151/44V8231 | 3M SAS CABLE, ADPTR TO ADPTR (AA) |
| 3682 | 44V4152/44V8230 | 6M SAS CABLE, ADPTR TO ADPTR (AA) |
| 3684 | 42R8118/44V4163 |
SAS Cable (AE Adapter to Enclosure single controller/ single path 3M |
| 3685 | 42R8120/44V4164 |
SAS Cable (AE) Adapter to Enclosure, single controller/ single path 6M |
| 3686 | 42R6792/44V4161 |
SAS Cable (YI) System to SAS Enclosure, Single Controller/Dual Path 1.5M |
| 3687 | 42R6793/44V4162 |
SAS Cable (YI) System to SAS Enclosure, Single Controller/Dual Path 3M |
| 3688 | 44V5132 | SAS Cable (AT 0.6 Meter) |
| 3691 | 42R6788/44V4157 |
SAS Cable (YO Adapter to SAS Enclosure Single Controller/Dual Path 1.5 M |
| 3692 | 42R6789/44V4158 |
SAS Cable (YO) Adapter to SAS Enclosure, Single Controller/Dual Path 3 M |
| 3693 | 42R6790/44V4159 |
SAS Cable (YO) Adapter to SAS Enclosure, Single Controller/Dual Path 6 M |
| 3694 | 42R6791/44V4160 |
SAS Cable (YO) Adapter to SAS Enclosure, Single Controller/Dual Path 15 M |
| 3925 |
00P2165/23R4632/ 40H6328/40H6329 |
Serial Port Converter Cable 9-Pin to 25-Pin |
| 3926 | 00P2166 | Asynch Printer/Terminal Cable 9-pin to 25-pin 4M |
| 3927 | 10N7712 | Serial Port Null Modem Cable 9-pin to 9-pin 3.7M |
| 3928 | 10N7713 | Serial Port Null Modem Cable 9-pin to 9-pin 10M |
| 4242 |
07L9633/ 08L0491/ 42R4755 |
6 Foot Extender Cable for Displays (15 pin D-shell to 15 pin D-shell |
| 4256 |
00P2969/ 10N7374/32N1311/ 44P1375 |
Extender Cable - USB Keyboards 2M |
| 6001 |
00G1277/ 42F6839 |
Power Control Cable (SPCN-2 meter) |
| 6006 |
09P1251/22R5239/ 93H8045 |
Power Control Cable (SPCN-3 meter) |
| 6007 |
21F9358/22R5221/ 55F4533 |
Power Control Cable (SPCN 15 meter) |
| 6008 |
21F9469/22R5219 /55F4532/74F0188 |
Power Control Cable (SPCN 6 meter) |
| 6029 | 21F9359/22R5222 | Power Control Cable (SPCN 30 meter) |
| 6458 |
Power Cable- Drawer to IBM PDU 14-foot 250V/10A |
|
| 6460 |
Power Cord (14-foot Drawer To OEM PDU (125V 15A Plug Type #4 |
|
| 6469 |
Power Cord (14-foot Drawer to OEM PDU (250V 15A United States Plug Type #5 |
|
| 6470 |
Power Cord (6-foot To Wall (125V 15A Plug Type #4 |
|
| 6471 |
Power Cord (9-foot To Wall/OEM PDU (125V 15A Plug Type #70 |
|
| 6472 |
Power Cord (9-foot To Wall/OEM PDU (250V 16A Plug Type #18 |
|
| 6473 |
Power Cord (9-foot To Wall/OEM PDU (250V 10A Plug Type 19 |
|
| 6474 |
Power Cord (9-foot) To Wall/OEM PDU (250V 13A) Plug Type #23 |
|
| 6475 |
Power Cord (9-foot) To Wall/OEM PDU (250V 16A) Plug Type #32 |
|
| 6476 |
Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #24 |
|
| 6477 |
Power Cord (9-foot) To Wall/OEM PDU (250V 16A) Plug Type #22 |
|
| 6478 |
Power Cord (9-foot) To Wall/OEM PDU (250V 16A) Plug Type #25 |
|
| 6479 |
Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #6 |
|
| 6487 |
Power Cord (6-foot To Wall (250V 15A United States Plug Type #5 |
|
| 6488 |
Power Cord (9-foot To Wall/OEM PDU (125V 15A or 250V 10A Plug Type #2 |
|
| 6493 |
Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #62 |
|
| 6494 |
Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #69 |
|
| 6495 |
Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #73 |
|
| 6496 |
Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #66 |
|
| 6497 |
Power Cord (6-foot) To Wall/OEM PDU (250V 10A) Plug Type #10 |
|
| 6651 |
Power Cord (9-foot To Wall/OEM PDU (125V 15A Plug Type #75 |
|
| 6659 |
Power Cord (9-foot To Wall/OEM PDU (250V 15A Plug Type #76 |
|
| 6660 |
Power Cord (14-foot Drawer To OEM PDU (125V 15A Plug Type #59 (DENAN marking |
|
| 6665 |
Power Cord 3 M (10 ft Drawer to IBM PDU 250V/10A |
|
| 6669 |
Power Cord (14-foot Drawer to OEM PDU (250V 15A Plug Type #57 (DENAN marking |
|
| 6670 |
Power Cord (6-foot To Wall (125V 15A Plug Type #59 (DENAN marking |
|
| 6671 | Power Cord (9-foot) Drawer to IBM PDU 250V/10A | |
| 6672 | Power Cord (5-foot) Drawer to IBM PDU 250V/10A | |
| 6680 |
Power Cord (9-foot) To Wall/OEM PDU (250V 10A) Plug Type #6 Insulated |
|
| 6687 |
Power Cord (6-foot) To Wall (250V 15A) Plug Type #57 (DENAN marking) |
|
| 7801 |
16R0449/41V0479/ 52P7524 |
Ethernet Cable 6M Hardware Management Console to System Unit |
| 7802 |
05N5292/41V0143/ 52P7525 |
Ethernet Cable 15M Hardware Management Console to System Unit |
| 机壳 | ||
| 7840 | Side-by-Side for 1.8m Racks | |
| 其它 | ||
| 1103 | 46C5370/46C5380 |
USB Internal Docking Station for Removable Disk Drive |
| 1104 |
39M5516/44E8889/ 44V3429/46C5381/ 46C5394/49Y9890 |
USB External Docking Station for Removable Disk Drive |
| 1106 | 46C5374/46C5375 | USB 160 GB Removable Disk Drive |
| 1107 | 46C5379/46C5395 | USB 500 GB Removable Disk Drive |
| 1108 |
04N2351/04N2567 09L2576/09L2577/ 09L5276/09L5277/ 39J5596/45E0670/ 53P2650/95P1868/ 95P1869 |
Juniper EXP4200 Ethernet Switch |
| 1114 | Smart Analytics System routing indicator | |
| 1311 | System Unique Identifier | |
| 1396 |
01K9852/39M5355/ 40K9774 |
4.3m 200V/16A Power Cord CHINA |
| 1406 |
14F1553/39M5279/ 39Y5565/40K9772 |
200V 16A 4.3m (14-Ft) TL Line Cord |
| 1409 | 14F1559/39M5331/40K9773 | 4.3m 200V/16A Power Cord AU/NZ |
| 1413 | 125V 4.3m (14-Ft) Line Cord | |
| 1414 | 39M5115/41V1961/86G7878 | 200V 6-Ft Locking Line Cord |
| 1415 | 41V1966/73F4931 | 200V 1.8m (6-Ft) Watertight Line Cord |
| 1417 | 200V 4.3m (14-Ft) Watertight Line Cord | |
| 1418 | 14F1557/39M5291/40K9770 | 4.3m 200V/16A Power Cord S. Africa |
| 1419 | 14F1561/39M5311/40K9771 | 4.3m 200V/16A Power Cord Israel |
| 1420 |
14F1554/39M5383/ 40K9766 |
4.3m 200V/16A Power Cord EU/Asia |
| 1421 |
14F1555/36L8823/ 39M5323/40K9769 |
4.3m 200V/16A Power Cord CH/DK |
| 1426 |
11F0113/11F0115/ 41V2003 |
200V 14-Ft Locking Line Cord |
| 1427 | 23R3231/46F4594 | 200V 14-Ft Wtrtght Line Cord |
| 1438 | 13F9941/39M5103 | 4.3m 200V/10A Power Cord AU/NZ |
| 1439 | 13F99809/39M5124 | 4.3m 200V/10A Power Cord EU/Asia |
| 1440 | 13F9998/39M5131 | 4.3m 200V/10A Pwr Cd Denmark |
| 1441 | 14F0016/39M5145 | 4.3m 200V/10A Pwr Cd S Afric |
| 1442 | 14F0052/39M5159 | 4.3m 200V/10A Pwr Cd Swiss |
| 1443 | 14F0034/39M5152 | 4.3m 200V/10A Pwr Cd UK |
| 1446 | 87G6067 | 4.3m 200V/30A Power Cord Korea |
| 1447 | 11F0106/41V2002 | 4.3m 200V/30A Power Cord AU |
| 1448 | 11F0107 | 4.3m 200V/30A Power Cord NZ |
| 1449 | 21H7693 | 4.3m 200V/32A Power Cord EU 1-PH |
| 1450 | 21H7691 | 4.3m 200V/16A Pwr Cd EU 2-PH |
| 1451 | 14F1547/39M5261 | 200V (6-Ft) 1.8m Line Cord |
| 1452 | 14F1548/39M5263 | 200V 14-Ft Line Cord |
| 1453 | 14F1549/39M5273 | 200V 6-Ft Locking Line Cord |
| 1454 | 14F1550/39M5275 | 200V 12A 14-Ft TL Line Cord |
| 1455 |
14F1551/39M5313/ 86F2645 |
200V 6-Ft Wtrtght Line Cord |
| 1456 |
14F1552/39M5315/ 86F2646 |
200V (14-Ft) 4.3m Watertight Line Cord |
| 1476 |
12J5988/39M5295/ 40K9767 |
4.3m/200V/12A Pwr Cd UK |
| 1477 | 4.3m 200V/16A Pwr Cd | |
| 1700 | 76H5078 | IPCS Keyboard/Mouse for NT |
| 2145 | 21H8079 | Primary OS - IBM i |
| 2146 | 44H6111 | Primary OS - AIX |
| 2147 | Primary OS - Linux | |
| 296C | 44V4749 | Control panel |
| 3632 | Widescreen LCD Monitor | |
| 3636 |
31P9263/31P9264/ 31P9265/31P9266 |
L200P Flat Panel Monitor |
| 3637 |
04N7526/04N7527/ 04N7532/13F9959/ 31P7507/31P7509/ 31P7511/31P7513/ 31P7515 |
IBM T541H /L150p 15" TFT Color Monitor |
| 3639 |
13F9959/31P9575/ 31P9577/31P9584/ 31P9587/31P9590/ 73P0261 |
L180P TFT 17" Color Display |
| 3640 | L171P TFT 17" Black Display | |
| 3641 |
40K7317/40K5341/ 73P4360 |
T115 TFT 15" Color Display |
| 3642 | ThinkVision L191p Flat Panel Monitor | |
| 3644 | IBM T119 Flat Panel Monitor | |
| 3645 | 39Y9919/40k5342 | IBM T117 Flat Panel Monitor |
| 3704 | External xSeries Attach | |
| 4276 |
04N7533/09N3435/ 25R9043 |
VGA to DVI Connection Converter |
| 4650 | Rack Indicator-Not Factory Integrated | |
| 4651 | Rack Indicator, Rack #1 | |
| 4660 | Rack Indicator, Rack #10 | |
| 4661 | Rack Indicator, Rack #11 | |
| 4662 | Rack Indicator, Rack #12 | |
| 4663 | Rack Indicator, Rack #13 | |
| 4664 | Rack Indicator, Rack #14 | |
| 4665 | Rack Indicator, Rack #15 | |
| 4666 | Rack Indicator, Rack #16 | |
| 4998 | Single 5250 Enterprise Enable | |
| 4999 | FULL 5250 Enterprise Enable | |
| 5094 | PCI-X Expansion Tower | |
| 5095 | PCI-X Expansion Tower | |
| 5096 | PCI-X Exp Tower (no disk) | |
| 5108 | 24L0761/39J4304 | 30-Disk Expansion Feature |
| 5294 | 1.8m I/O Tower | |
| 5296 | 1.8m I/O Tower (no disk) | |
| 5524 |
RFID TAGS FOR SERVERS, BLADES, BLADECENTERS, RACKS, AND HMCS |
|
| 5544 | Sys Console on OP Console | |
| 5550 | Sys Console On HMC | |
| 5553 | Sys Console-Ethernet No IOP | |
| 5786 | TotalStorage EXP24 Disk Dwr | |
| 5787 | TotalStorage EXP24 Disk Twr | |
| 5790 | PCI Expansion Drawer | |
| 5796 | PCI-DDR 12X Expansion Drawer | |
| 5802 | 12X I/O Drawer PCIe, SFF disk | |
| 5877 | 12X I/O Drawer PCIe, No Disk | |
| 5886 | EXP 12S Expansion Drawer | |
| 5887 | EXP24S SFF Gen2-bay Drawer | |
| 5959 |
Full Width Quiet Touch Keyboard -- USB, Hungarian, #208 |
|
| 5983 | USB Keybd-US English Euro | |
| 6068 | Opt Front Door for 1.8m Rack | |
| 6069 | Opt Front Door for 2.0m Rack | |
| 6246 | 1.8m Rack Trim Kit | |
| 6247 | 2.0m Rack Trim Kit | |
| 6248 | 12R8349/44V0103 | 1.8m Rack Acoustic Doors |
| 6249 | 2.0m Rack Acoustic Doors | |
| 6263 | 1.8m Rack Trim Kit | |
| 6272 | 2.0m Rack Trim Kit | |
| 6577 | Power Cable - Drawer to IBM PDU, 200-240V/10A | |
| 6580 | 41V0489 | Optional Rack Security Kit |
| 7118 | Environmental Monitoring Probe | |
| 7204 | Quantity 150 of #2124 | |
| 7205 | Quantity 150 of #2125 | |
| 7206 | Quantity 150 of #2126 | |
| 7207 | Quantity 150 of #2127 | |
| 7208 | Quantity 150 of #2128 | |
| 7217 | OEM Deskside Cover Set (With door) | |
| 7292 | IBM Deskside Cover Set (With door) | |
| 7307 | Dual I/O Unit Enclosure | |
| 7311 | Dual I/O Unit Enclosure | |
| 7314 | Dual 5796 Unit Enclosure | |
| 7780 | 2.0m Rack Side Attach Kit | |
| 7982 | PowerVM Standard | |
| 7983 | PowerVM Express | |
| 7986 | PowerVM Enterprise | |
| 8308 | 46K6926 |
DASD/Media Backplane for 3.5" DASD/SATA DVD/Tape |
| 8310 | 44V5927/46K7121 |
DASD/Media Backplane for 3.5" DASD/SATA DVD/Tape with |
| 8340 | 74Y2244 |
Enhanced DASD/Media Backplane for 2.5" DASD/SATA DVD/ Tape with External SAS Port |
| 8341 |
07P6910/07P6911/ 10N9532 |
DASD/Media Backplane for 3.5" DASD/DVD/Tape |
| 8345 |
10N9664/44V4270/ 44V5561/46K6634/ 46K6635 |
DASD/Media Backplane for 3.5" DASD/DVD/Tape; with External SAS Port |
| 8346 | 46K6948 |
DASD/Media Backplane for 2.5" DASD/SATA DVD/Tape with External SAS Port |
| 9300 | Language Group Specify - US English | |
| 9359 |
specify mode-1 1(1)5901/5278 for EXP24S #5887 |
|
| 9360 |
Specify mode-1 1(2)5901/5278 for EXP24S #5887 |
|
| 9361 |
Specify mode-2 1(2)5901/5278 for EXP24S #5887 |
|
| 9365 |
Specify mode-4 1(4)5901/5278 for EXP24S #5887 |
|
| 9366 |
-Specify mode-2 1(4)5901/5278 for EXP24S #5887 |
|
| 9367 |
-Specify mode-1 1(2)5903/5805 for EXP24S #5887 |
|
| 9368 |
Specify mode-2 1(4)5903/5805 for EXP24S #5887 |
|
| 9382 |
Specify mode-1 1(1)5904/6/8 for EXP24S #5887 |
|
| 9383 |
Specify mode-1 1(2) 5904/6/8 for EXP24S #5887 |
|
| 9384 |
Specify mode-1 & CEC SAS port for EXP24 #5887 |
|
| 9440 | New AIX License Core Counter | |
| 9441 | New IBM i License Core Counter | |
| 9442 | New Red Hat License Core Counter | |
| 9443 | New SUSE License Core Counter | |
| 9444 | Other AIX License Core Counter | |
| 9445 | Other Linux License Core Counter | |
| 9446 | 3rd Party Linux Core Counter | |
| 9447 | VIOS Core Counter | |
| 9461 | Month Indicator | |
| 9462 | Day Indicator | |
| 9463 | Hour Indicator | |
| 9464 | Minute Indicator | |
| 9465 | Qty Indicator | |
| 9466 | Countable Member Indicator | |
| 9642 | Power 550 Express Edition for IBM i | |
| 9645 |
Power 550 4-core Solution Edition (2 i) for IBM i |
|
| 9646 |
Power 550 4-core Solution Edition (4 i) for IBM i |
|
